Zebra RS6000 - EnableDisable UPC-E1; EnableDisable EAN-8 JAN-8

To Next Page

To Previous Page

Symbologies

149

Enable/Disable UPC-E1

Parameter # 12 (SSI # 0Ch)

UPC-E1 is disabled by default.

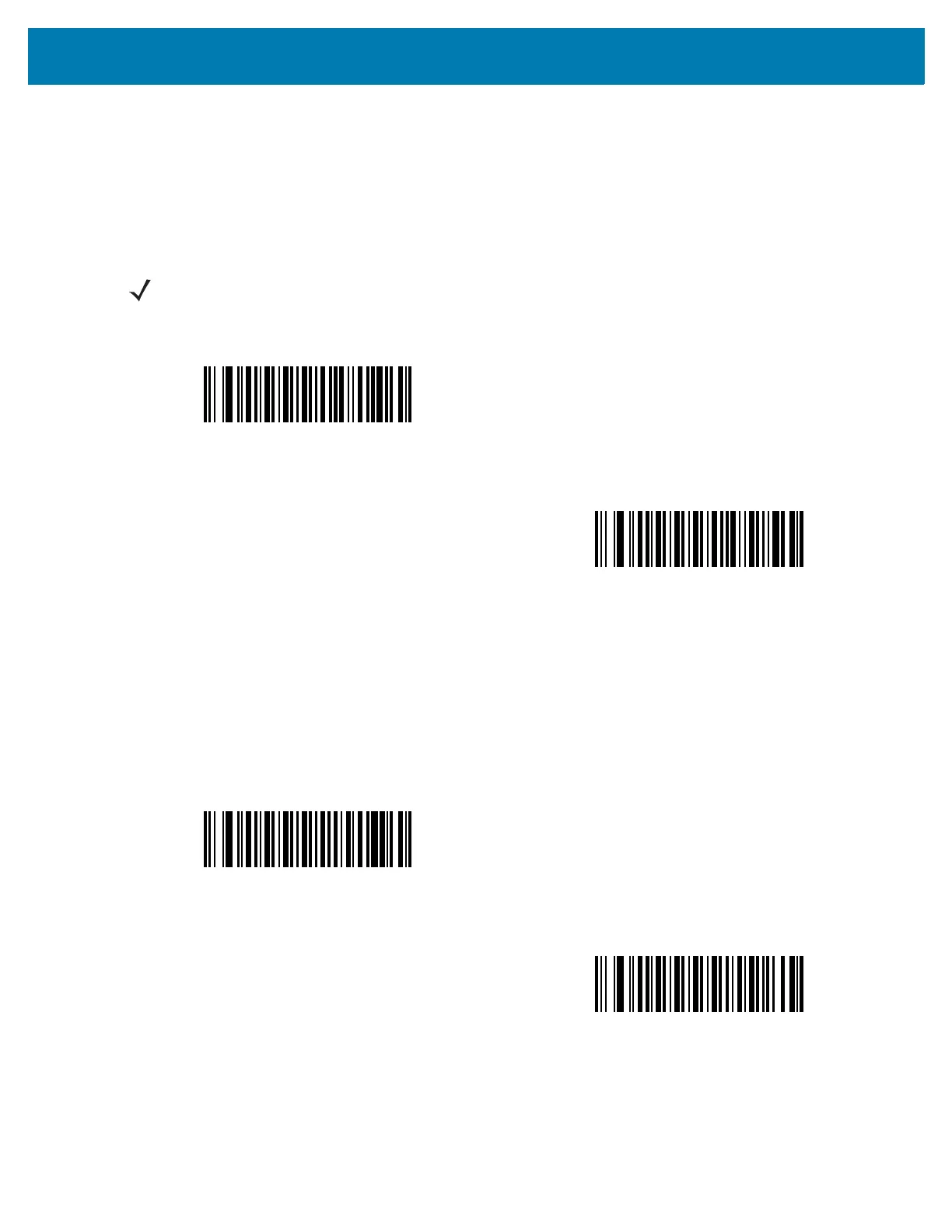

To enable or disable UPC-E1, scan the appropriate bar code below.

Enable/Disable EAN-8/JAN-8

Parameter # 4 (SSI # 04h)

To enable or disable EAN-8/JAN-8, scan the appropriate bar code below.

NOTE: UPC-E1 is not a UCC (Uniform Code Council) approved symbology.

Enable UPC-E1

(1)

*Disable UPC-E1

(0)

*Enable EAN-8/JAN-8

(1)

Disable EAN-8/JAN-8

(0)
