Accessories

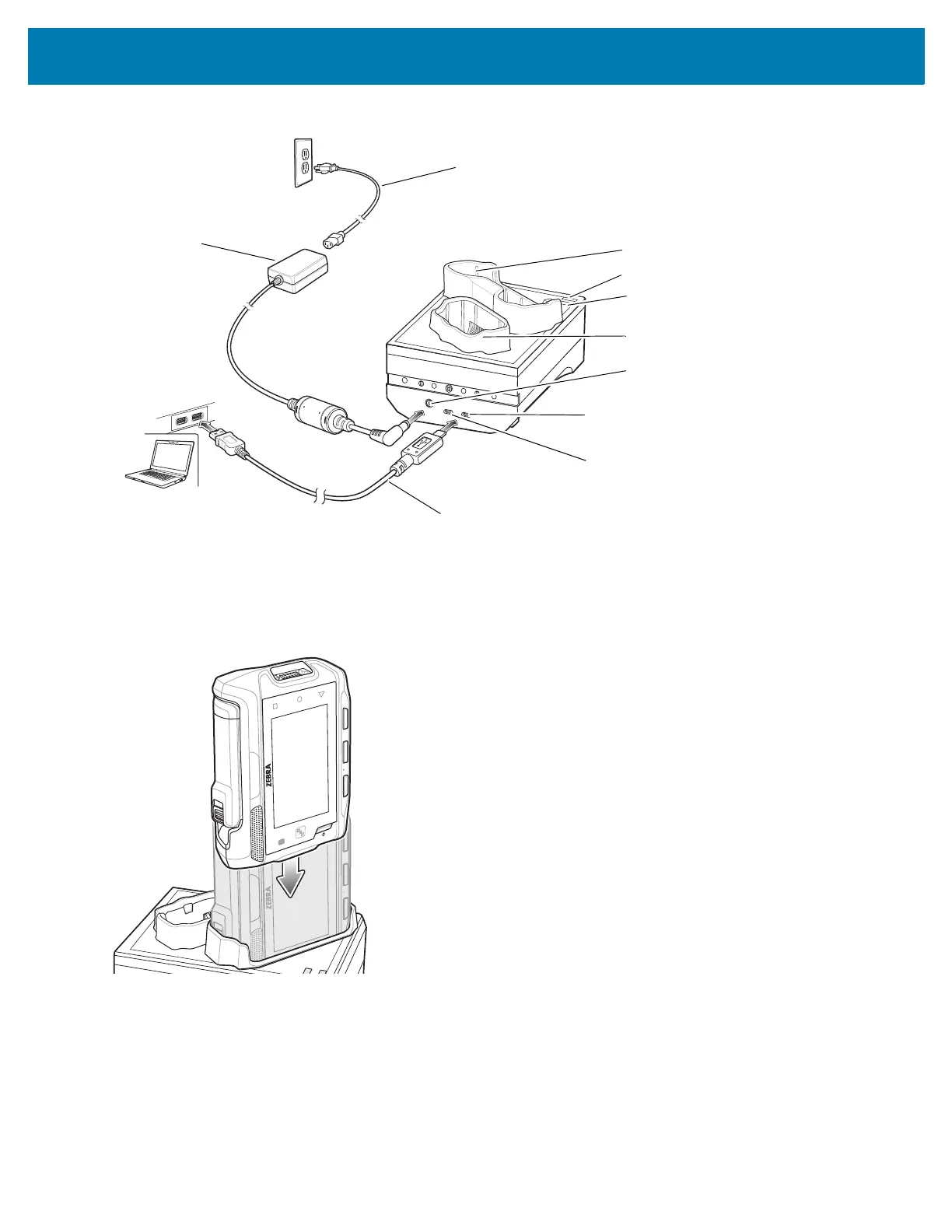

Figure 34 2-Slot WT6000/RS6000 Charging Cradle Setup

Charging the WT6000

1. Insert the WT6000 into the WT6000 charging slot.

Figure 35 Insert WT6000 into Cradle

2. Ensure the WT6000 is seated properly. The WT6000 Charging LED blinks indicating charging.

Charging the RS6000

1. Insert the RS600 into the RS6000 charging slot.

AC Line Cord

Power Supply

USB Cable

Power Input

WT6000 Micro-USB Port

RS6000 Charging LED

RS6000 Charging Slot

WT6000 Charging Slot

WT6000 Charging LED

RS6000 Micro-USB Port
