Zebra RS6000 User Manual

Maintenance and Troubleshooting
285
Small Comfort Pad Removal
To remove the Small Comfort Pad:

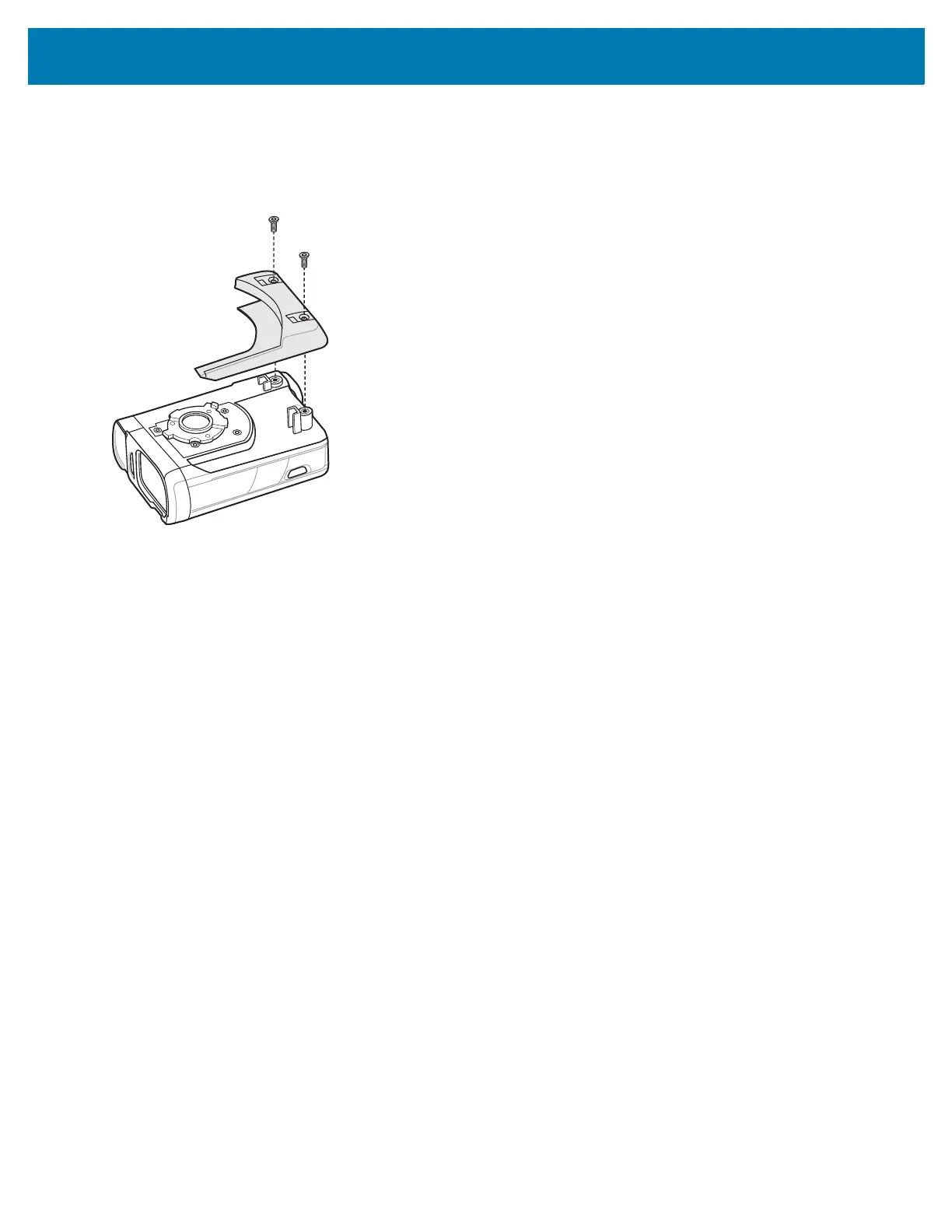

Figure 59 Removal of Small Comfort Pad
1. Remove the Large Comfort Pad. See Large Comfort Pad Removal on page 284.
2. Remove the Trigger Assembly. See Trigger Assembly Removal on page 287
3. Remove small comfort pad screws using a T6 Torx screwdriver.
4. Lift Small Comfort Pad out of the RS6000.
Small Comfort Pad Installation
To install the Small Comfort Pad:
1. Place Small Comfort Pad on to the RS6000
2. Install small comfort pad screws using a T6 Torx screwdriver. Torque screws to 2 kgf-cm.
3. Install the Trigger Assembly. See Trigger Assembly Installation on page 287
4. Install the Large Comfort Pad. See Large Comfort Pad Installation on page 286.
