Symbologies

222

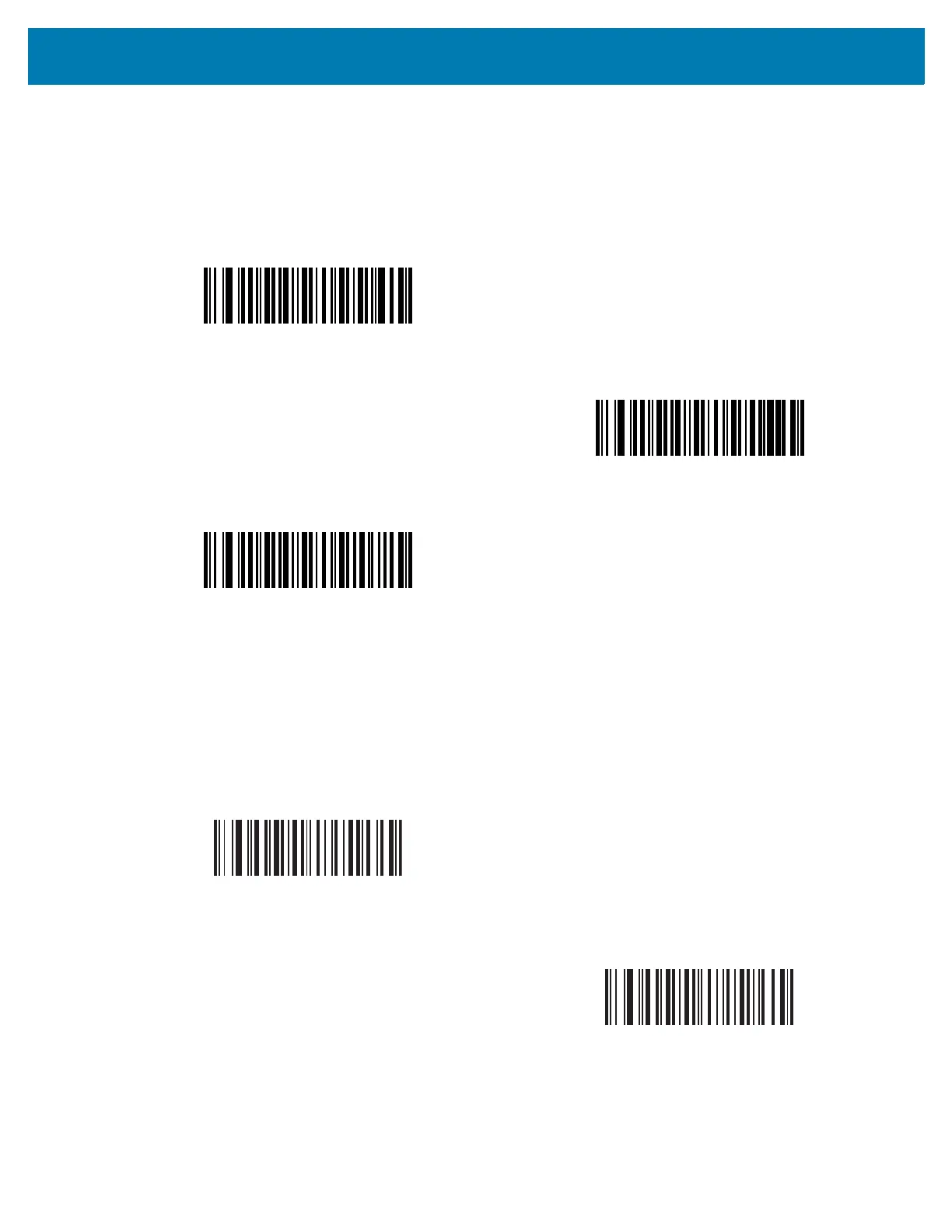

Composite Beep Mode

Parameter # 398 (SSI # F0h, 8Eh)

To select the number of decode beeps when a composite bar code is decoded, scan the appropriate bar code.

GS1-128 Emulation Mode for UCC/EAN Composite Codes

Parameter # 427 (SSI # F0h, ABh)

Select whether to enable or disable this mode.

Single Beep after both are decoded

(0)

*Beep as each code type is decoded

(1)

Double Beep after both are decoded

(2)

Enable GS1-128 Emulation Mode for

UCC/EAN Composite Codes

(1)

*Disable GS1-128 Emulation Mode for

UCC/EAN Composite Codes

(0)
