Gen II User Manual
9-24 – Transient Balance Chapter 9 Revision 2.10, Apr 2020
and Deg (phase angle) collected on all runs up to this point. Pressing the [] or []
keys will allow you to navigate through the readings from all runs of the current job.
Press the [OK] key to acknowledge the message and continue to the shut down the
engine(s) screen.

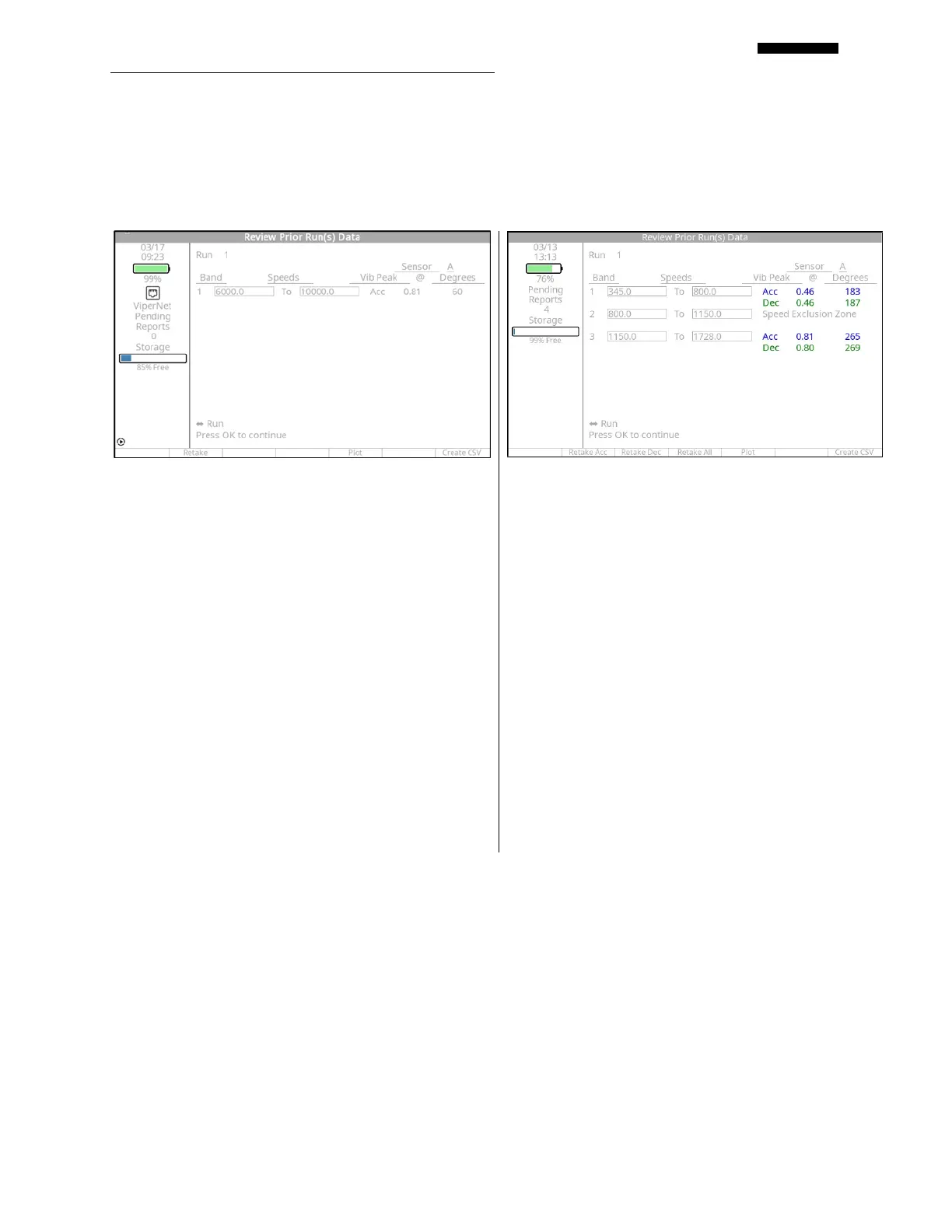

This screenshot displays run data using a basic
configuration of a single sensor and a single speed
band in an Acceleration run. The function keys
available are;
[F1] “Retake” – Allows the user to retake the data
[F4] “Plot” – Displays a vibration plot as shown
in paragraph 9.2.5.5 below.
This screenshot displays run data using a
configuration of multiple sensors and multiple
speed bands in both an Acceleration and
Deceleration run. The function keys available are;
[F1] “RetakeAcc” – Allows the user to retake
only the Acceleration data
[F2] “RetakeDec” – Allows the user to retake
only the Deceleration data
[F3] “RetakeAll” – Allows the user to retake all
data
[F4] “Plot” – Displays a vibration plot as shown
in paragraph 9.2.5.5 below.
[F5] “Next Sens” – Displays run data for the next
sensor
9.2.5.5. Pressing [F4] “Plot” in the screen shown in paragraph 9.2.5.4 above displays the
Review Prior Run(s) Data Plot screen shown below. This plot provides a visual
image of the vibration reading through the RPM range. The vertical scale is set by the
value selected in paragraph 9.1.2.6 above and represents the vibration amplitude in
the units selected in paragraph 9.1.1.16 above. The horizontal scale across the bottom
is set by the minimum and maximum RPM values entered in paragraphs 9.1.3.5 and
9.1.3.6 above. Pressing the [] or [] keys will allow you to navigate through the
readings from all runs of the current job. Use the text on the first line to determine
the run number. Press [OK] to return to the “Review Prior Run(s) Data” screen shown
in 9.2.5.4.
