6166 DC Voltage Current Source Operation Manual
3.9.2 Menu Operation Example (Parameter to Be Selected)
3-59

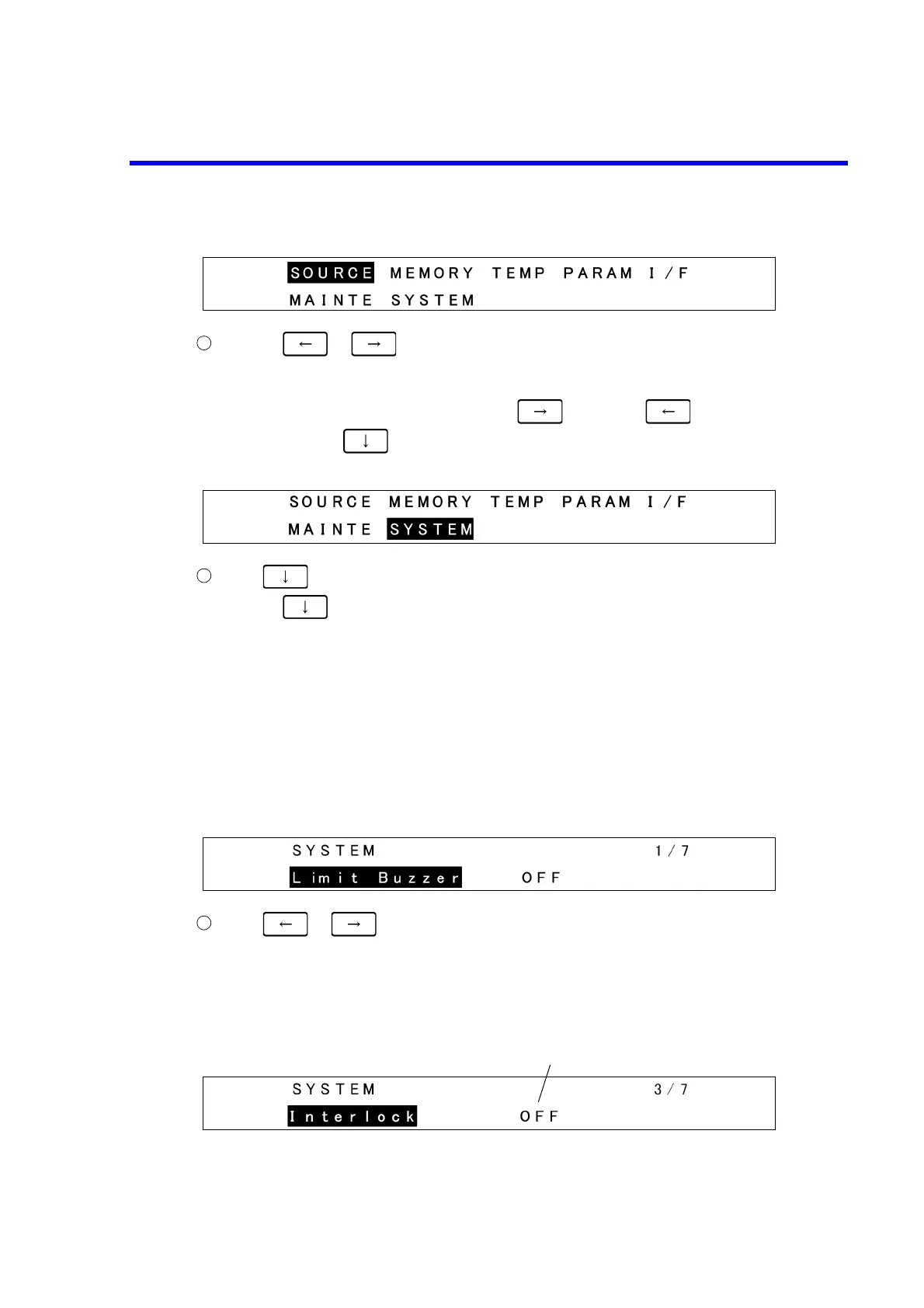

Example display Category level
Pressing or moves the cursor (highlight) and selects the categories.
The categories can be selected by using the rotary knob.
Move the cursor to SYSTEM.
To move to SYSTEM on the lower part, press six times or once.
Note that pressing here moves to the Select level of each category.
Example display Category level
Press .
Pressing moves to the parameter select level in the SYSTEM category.
There are the following parameters in the SYSTEM category.
Limit Buzzer : Sets the buzzer at limit detection.
Notice Buzzer : Sets the buzzer at process termination.
Interlock : Sets the interlock.
Display SW : Sets the indicator ON or OFF.
Display Bright : Sets the brightness of the display (VFD).
LED Bright : Sets the brightness of the LED indicators.
Error Log : Reads out error logs.
Example display Menu screen: Category level
Press or to select Interlock in the category. The parameters can be selected by using
the rotary knob.
The highlight section switches as Limit Buzzer  Notice Buzzer  Interlock  Display SW 
Display Bright  LED Bright  Error Log.
2
3
4
Shows that the selected parameter is set to OFF.
In this example, the interlock is OFF.
Example display Menu screen: Select level
