6166 DC Voltage Current Source Operation Manual
3.7.3 Setting Ranges and Resolutions of Limit Values
3-27
For example, when the voltage function and the 10 V range are selected and the user setting voltage limit
value is set to 1250 V, the internal setting voltage limit value is set to 130 V.
The following table shows the internal setting ranges of the limit values.
NOTE: The internal setting limit values are stored when the 6166 is turned OFF.
Table 3-6 Internal Setting Ranges of Limit Values
Source function Range
Voltage limit Current limit
Initial value
Internal setting
range
Initial value
Internal setting
range
Divider voltage 10 mV 20 mV
Unchangeable
10 mA
Unchangeable100 mV 200 mV 10 mA
1000 mV 2 V 10 mA
Voltage 1 V
130 V
10 V to 130 V 125 mA 1 mA to 125 mA10 V
100 V
1000 V 10 V to 1250 V 13 mA 1 mA to 13 mA
Current 1 mA
130 V 10 V to 130 V 125 mA 1 mA to 125 mA10 mA
100 mA
Current
(OPT6166+20)
1 mA
130 V 10 V to 1250 V 13 mA 1 mA to 13 mA
10 mA

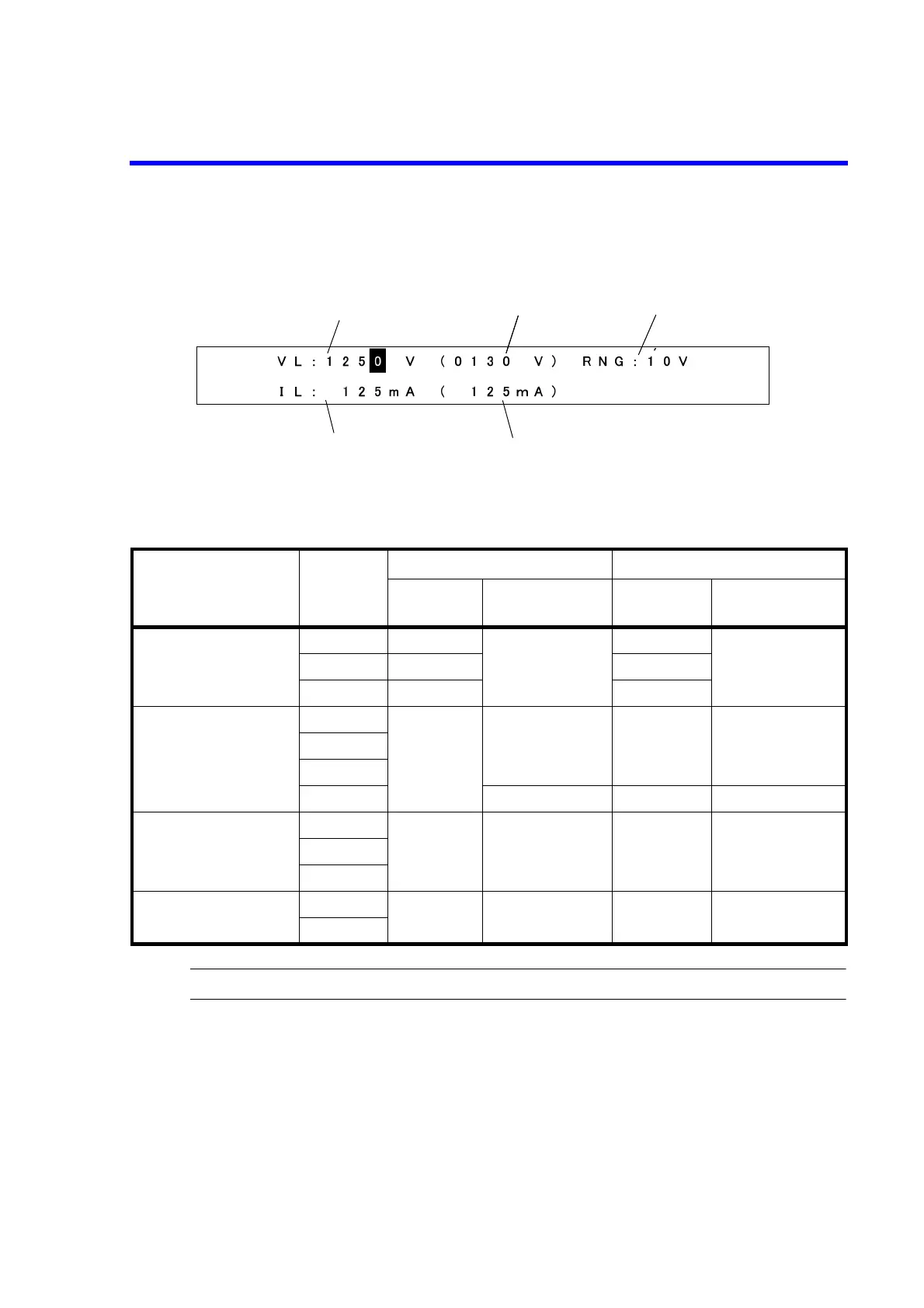

Example display (2-line display)
User setting voltage limit value Range
Internal setting voltage limit value
User setting current limit value Internal setting current limit value
