6166 DC Voltage Current Source Operation Manual
5.4 Output Operation Timing
5-9
5.4 Output Operation Timing
*1: The values in parentheses are in 4-wire connection.
*2: For more information on the settling information, refer to Page 9-6.
5.4.1 Setting Data Change Timing

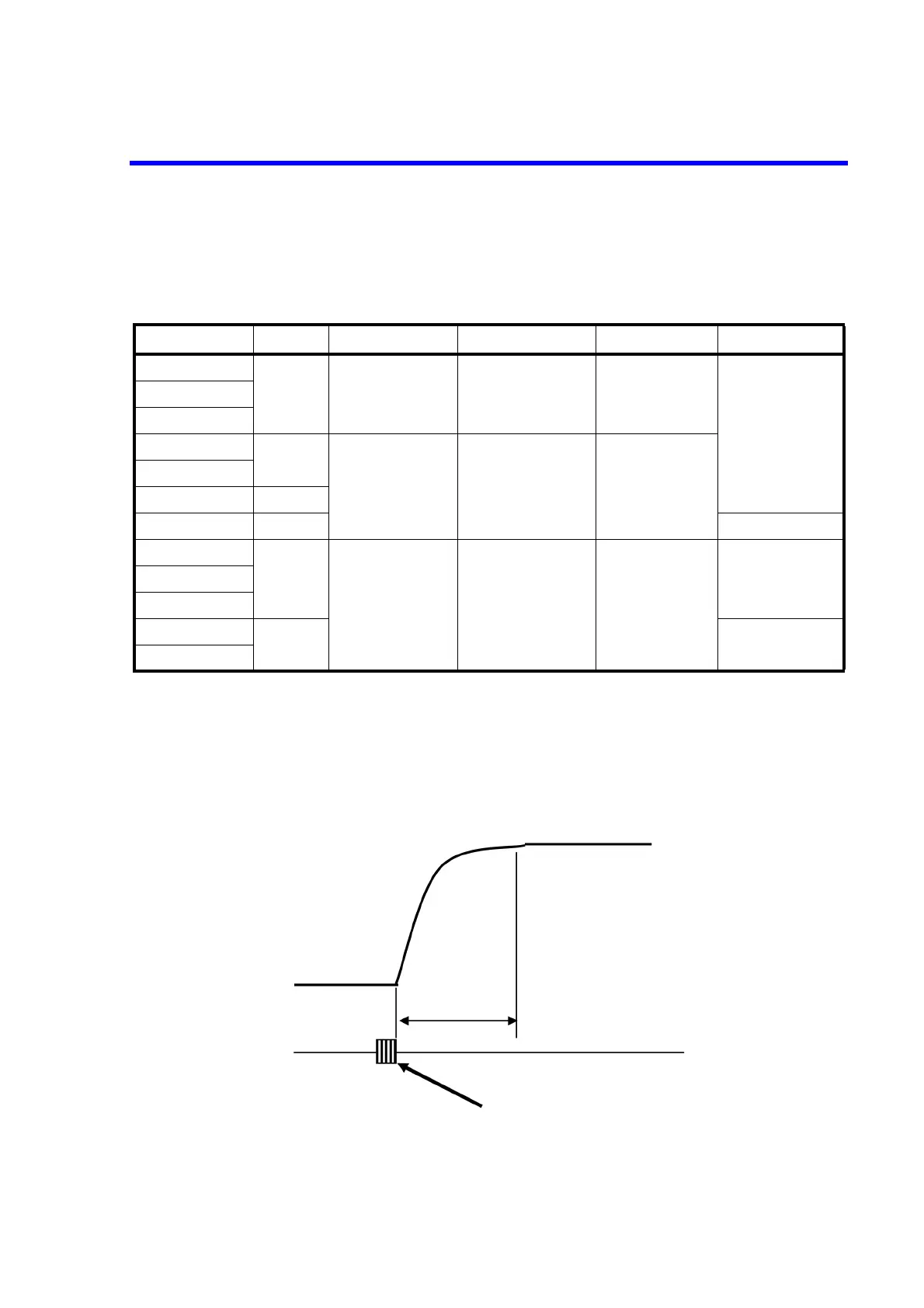

Table 5-4 Output Operation Timing List
Range Tw Topr Tstby Trng Settling time (*2)
10 mV 100 ms 25 ms 20 ms 20 ms 1 s or less
100 mV
1000 mV
1 V 30 ms 30 ms (70 ms) (*1) 75 ms (100 ms) (*1) 70 ms
10 V
100 V 230 ms
1000 V 500 ms 10 s or less
1 mA 230 ms 50 ms 95 ms 50 ms 1 s or less
10 mA
100 mA
1 mA Opt.20 500 ms 10 s or less
10 mA Opt.20
Settling time
Data setting command or data setting key operation
