3.3.2 Outputting Current with Rotary Knob (Fixed Range)
3-9
When fixed range is selected, the source value can be set only within the source range of the currently
selected range.
3.3.2 Outputting Current with Rotary Knob (Fixed Range)

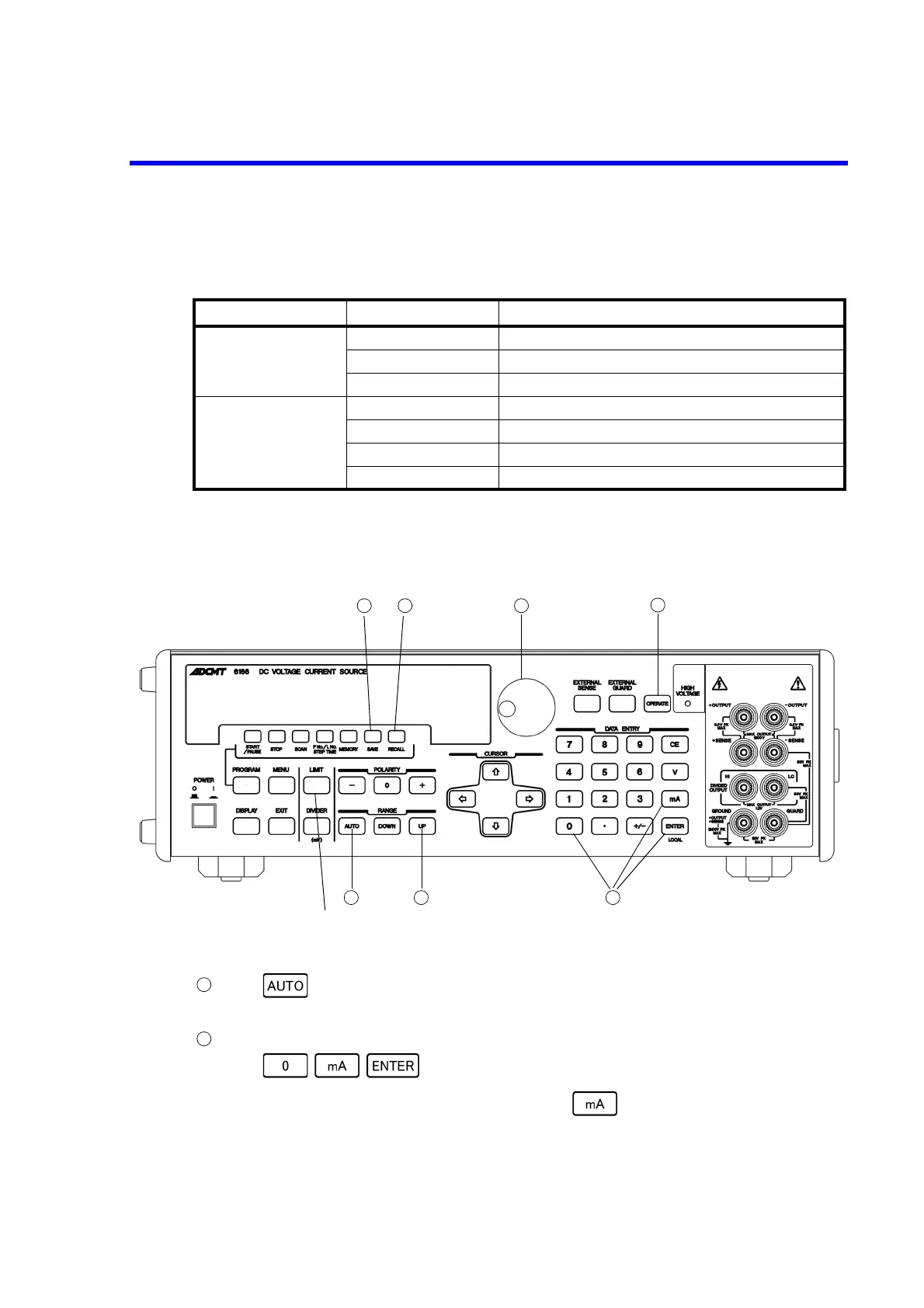

The following shows the procedure of outputting current of +109.9999 mA.
Operating procedure
Press to select fixed range.
When fixed range is selected, the AUTO key goes OFF.
The current function needs to be set previously.
Press to set the current function to 0 mA.
• When the unit is previously set to "mA," entering can be omitted.
Table 3-2 Voltage Source Ranges for Fixed Range
Source function Range Source range
Divider voltage 10 mV 00.00000 to 11.99999 mV
100 mV 000.0000 to 119.9999 mV
1000 mV 0000.000 to 1199.999 mV
Vol t a g e 1 V 0.000000 to 1.199999 V
10 V 00.00000 to 11.99999 V
100 V 000.0000 to 119.9999 V
1000 V 0000.000 to 1199.999 V
1 23
546
Goes ON in red when the limit is detected.
7
1
2
