6166 DC Voltage Current Source Operation Manual
3.3.1 Outputting Voltage with Rotary Knob (Fixed Range)
3-8
Rotate the rotary knob to turn the figure to 5.

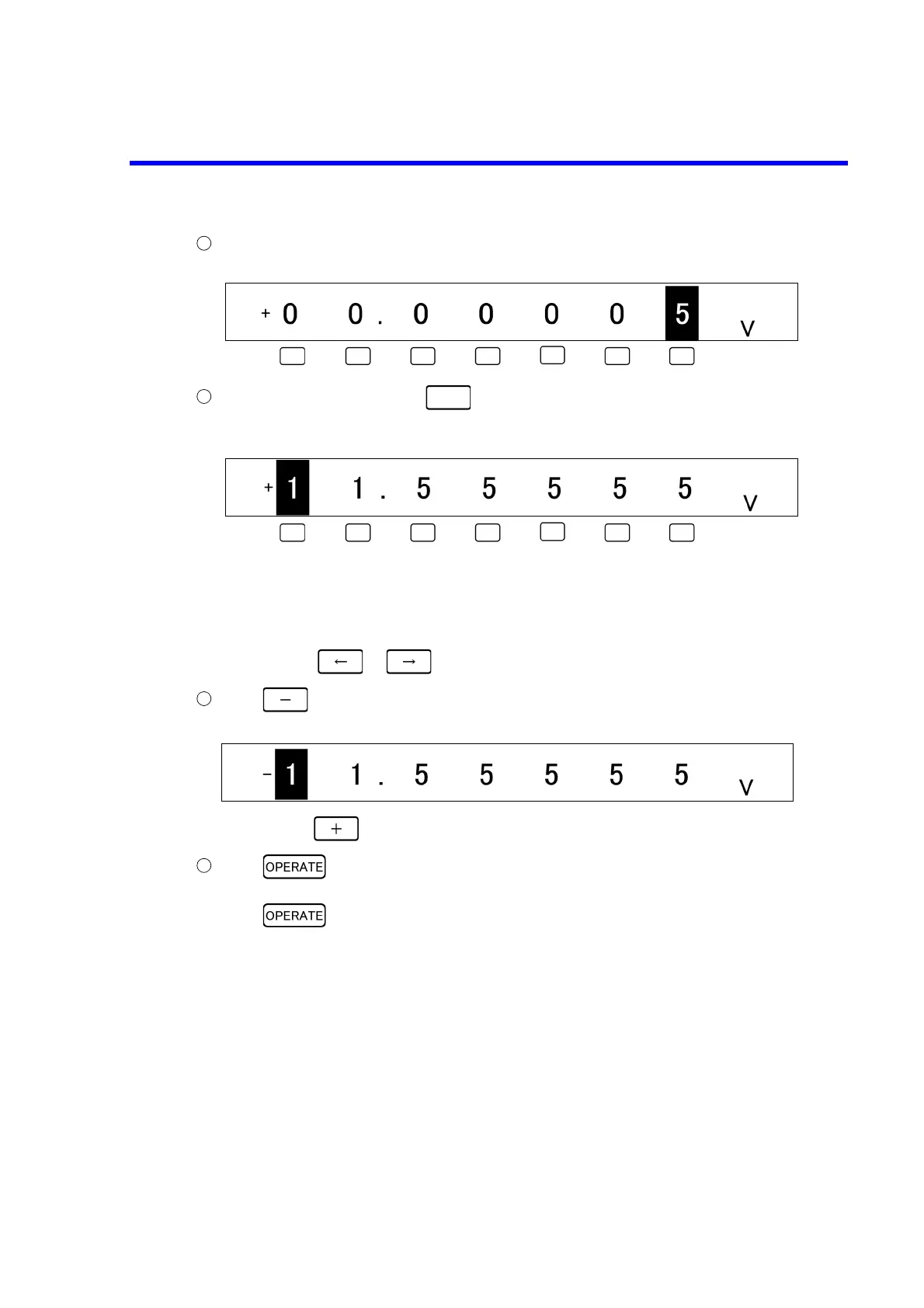

Example display
Similarly, press the DIGIT key corresponding to a digit to be changed, and rotate the rotary
knob to set the source value.
Example display
• Pressing the DIGIT key at the cursor (highlight) position cancels the highlight, and the figure
cannot be changed with the rotary knob.
• Pressing the DIGIT key corresponding to a digit to be changed again displays the cursor, and
the figure can be changed with the rotary knob.
• Pressing or on the CURSOR section can also change the cursor position.
Press to set the polarity to negative.
Example display
• Pressing sets the polarity to positive
Press to output the source value (Operate). While the source value is output, the
OPERATE key lights up.
Press again to stop the output (Standby). The OPERATE key goes OFF.
5
6
7
8
