6166 DC Voltage Current Source Operation Manual
3.2 Setting Source Value Using Numeric Keypad
3-2
3.2 Setting Source Value Using Numeric Keypad
This section describes the procedures of setting the source value using the numeric keypad and outputting it.
Each procedure should be started with the initial state (factory default settings). If the 6166 is not in the initial
state, initialize the 6166 referring to Section 3.11, "Initializing Setting Conditions" previously.

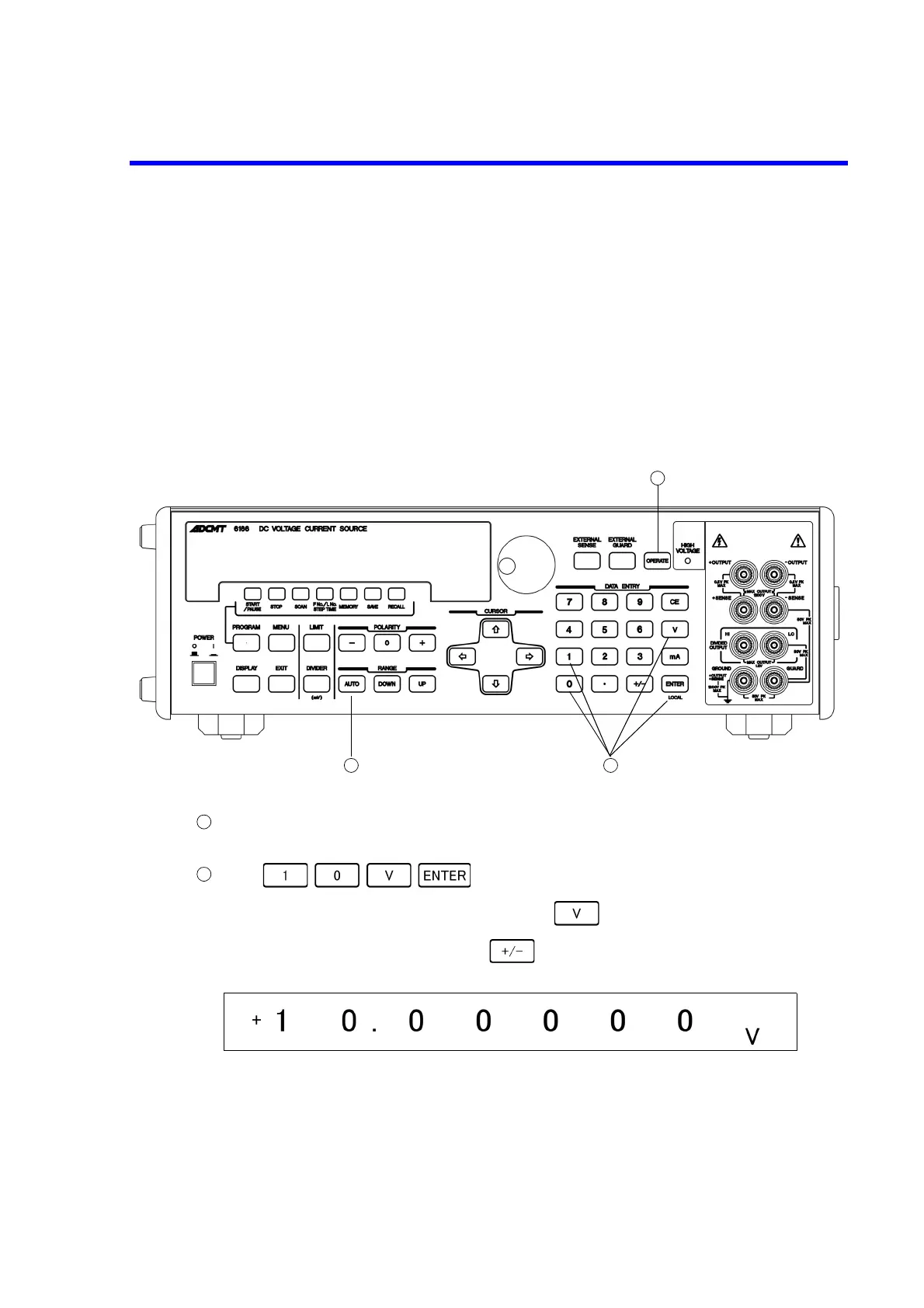

3.2.1 Outputting Voltage with Numeric Keypad
The following shows the procedure of outputting voltage of +10 V.
Operating procedure
Check that auto range is selected.
When auto range is selected, the AUTO key lights up.
Press to set the source value to 10 V.
• When the unit is previously set to "V," entering can be omitted.
• To set the polarity to negative, press while entering the numeric value.
Example display
1 2
3
1
2
