ADCMT 6166 - Status Register Structure

6166 DC Voltage Current Source Operation Manual
6.2.1 Status Register
6-8
5. Device Event Status Register
The functions assigned to the Device Event Status Register are described in Table 6-3.

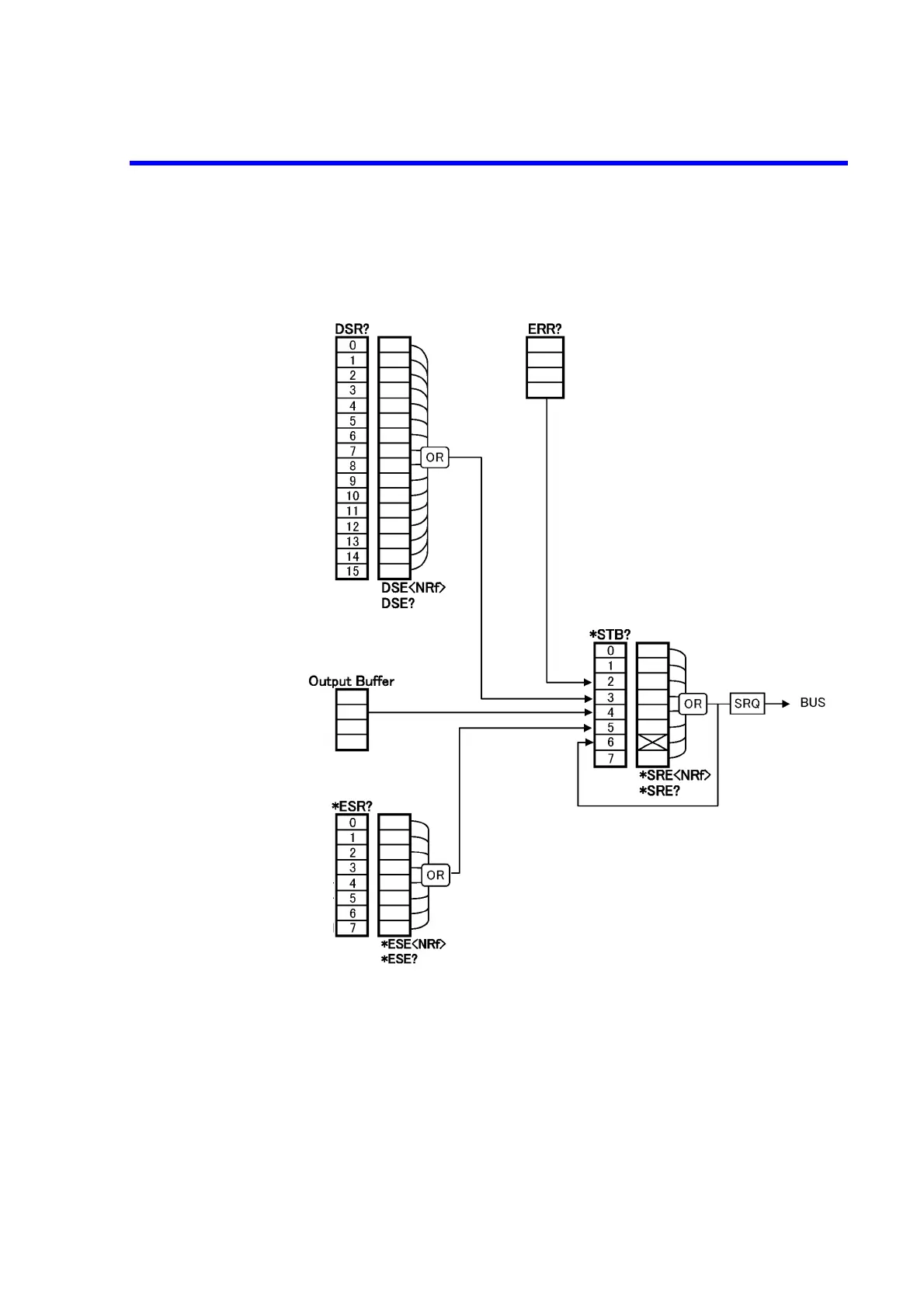

Figure 6-2 Status Register Structure
Device Event Status Register
Status Byte Register
Device Event Status Enable Register
Service Request Enable Register
Standard Event Status Register
Over Load
*OPC operation complete
Execution error
Command error
Power ON
Standard Event Status Enable Register
Fan Stop
Over Heat
Source Unit Error
Plus Volt Limiter
Minus Volt Limiter
Plus I Limiter
Minus I Limiter
Ext. Operate Off In
Ext. Trigger IN
Operate
Calibration End
Program Scan Run
Program Scan End
