6166 DC Voltage Current Source Operation Manual
3.10.3 Setting Reference Junction Temperature
3-73
Press to exit the menu screen.
The temperature for generating the thermal electromotive force can be set on the source value screen by
using the numeric keypad or rotary knob as the voltage source value or current source value.
3.10.3 Setting Reference Junction Temperature
The following formula shows the relationship between the output voltage and the reference junction tem-
perature in the thermal electromotive force function.
Vou t = V t e m p - Vr e f
Vout : Output voltage
Vtemp : Thermal electromotive force against setting temperature
Vref : Thermal electromotive force at the reference junction temperature
The reference junction temperature can be set in the range of from -270C to +120C.
For information on how to set the reference junction temperature, refer to Section 3.9.3, "Menu Operation
Example (Parameter to Be Input)."
11

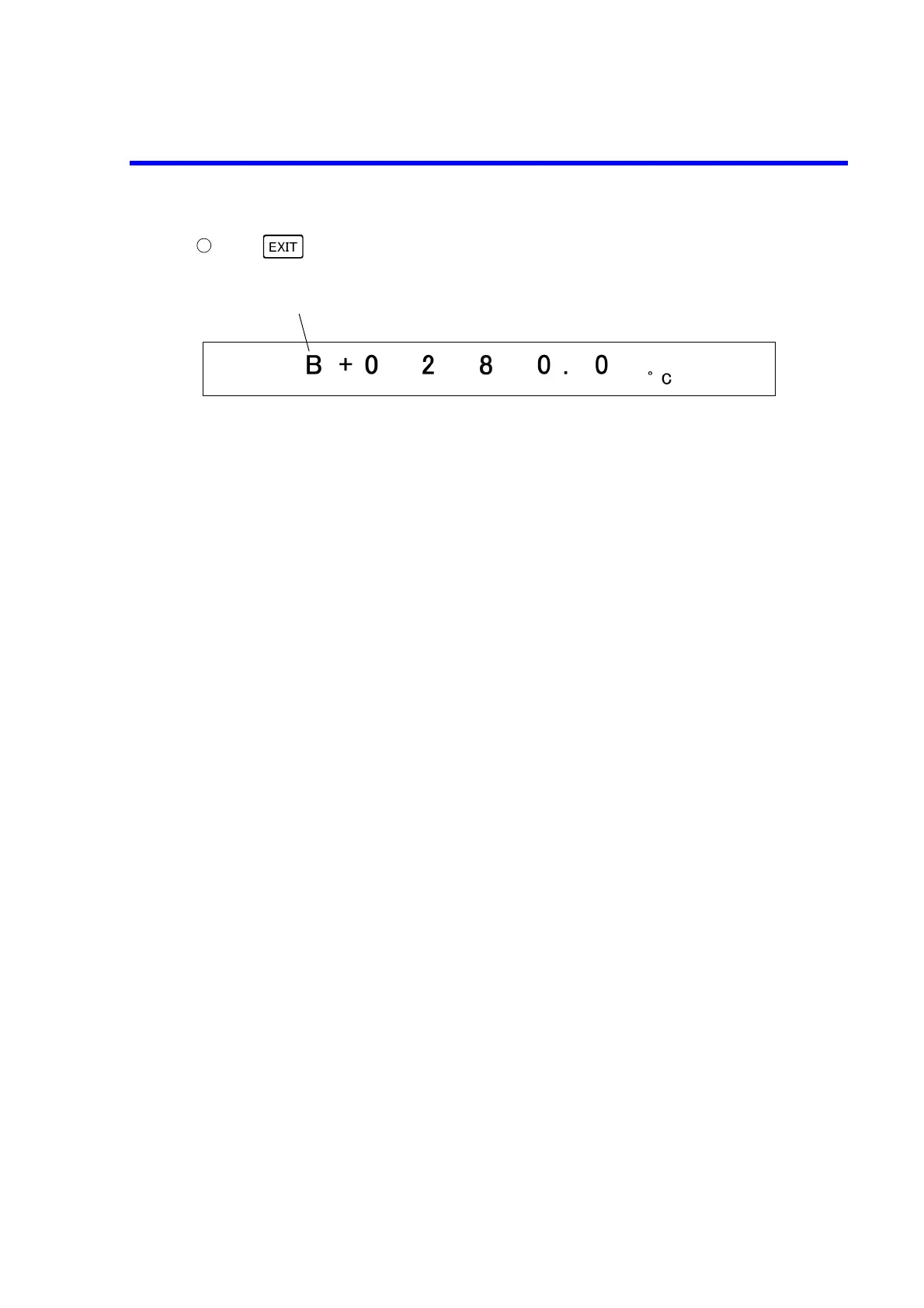

Shows that the type of thermocouple is set to B.
