ADCMT 6166 User Manual

6166 DC Voltage Current Source Operation Manual

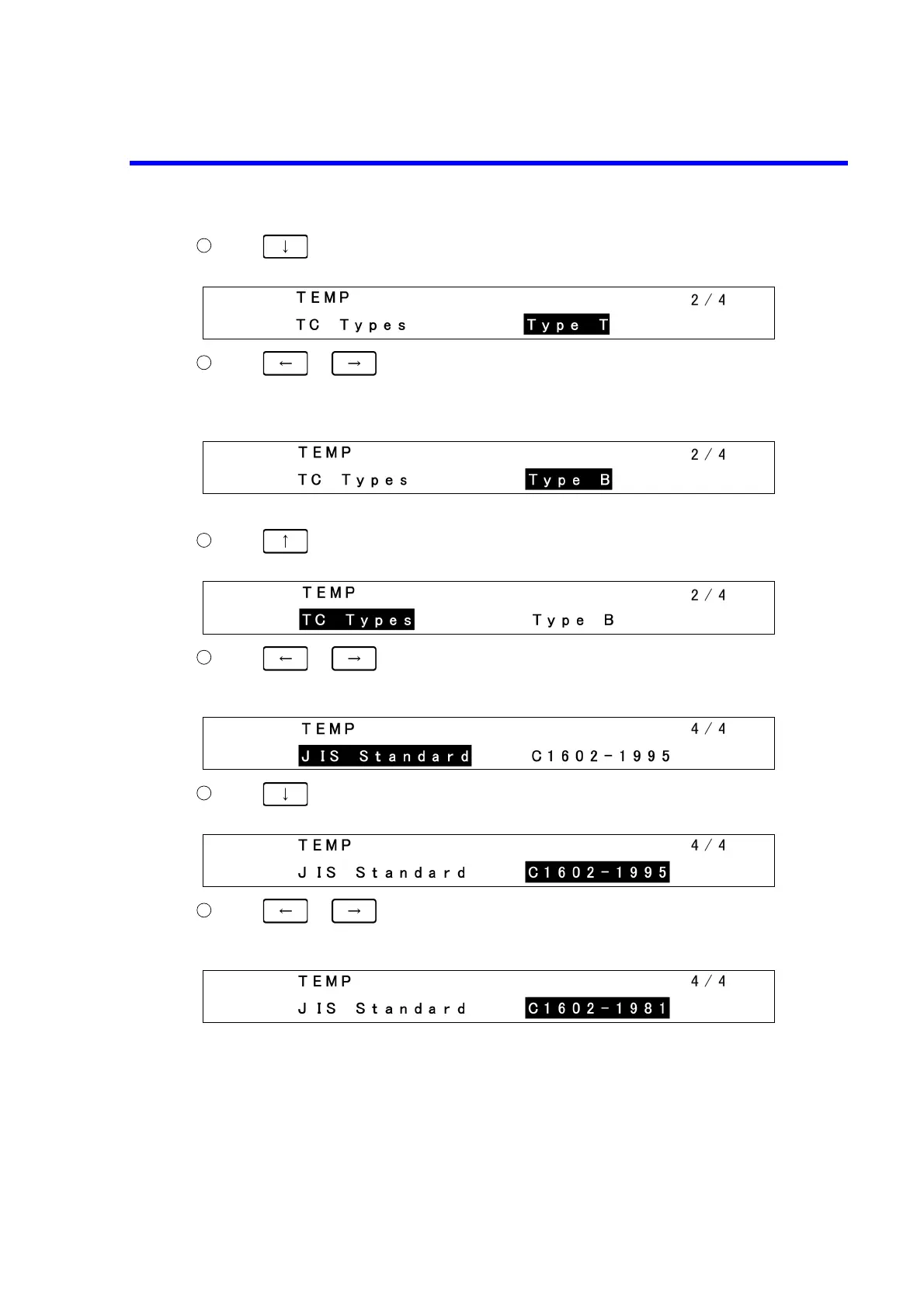

3.10.2 Setting Type of Thermocouple
3-72
Press to move to the Input/Run level.
Example display
Press or to select Type B.
The highlight section switches as Type T  Type J  Type E  Type K  Type S  Type R 
Type B  Type N.
Example display
Next, JIS C1602-1981 is selected.
Press to return to the Select level.
Example display
Press or to select JIS Standard.
The highlight section switches as TC Out  TC Types  RJC Temp  JIS Standard.
Example display
Press to move to the Input/Run level.
Example display
Press or to select C1602-1981.
The highlight section switches as C1602-1995  C1602-1981.
Example display
5
6
7
8
9
10
