3.10.2 Setting Type of Thermocouple
3-71

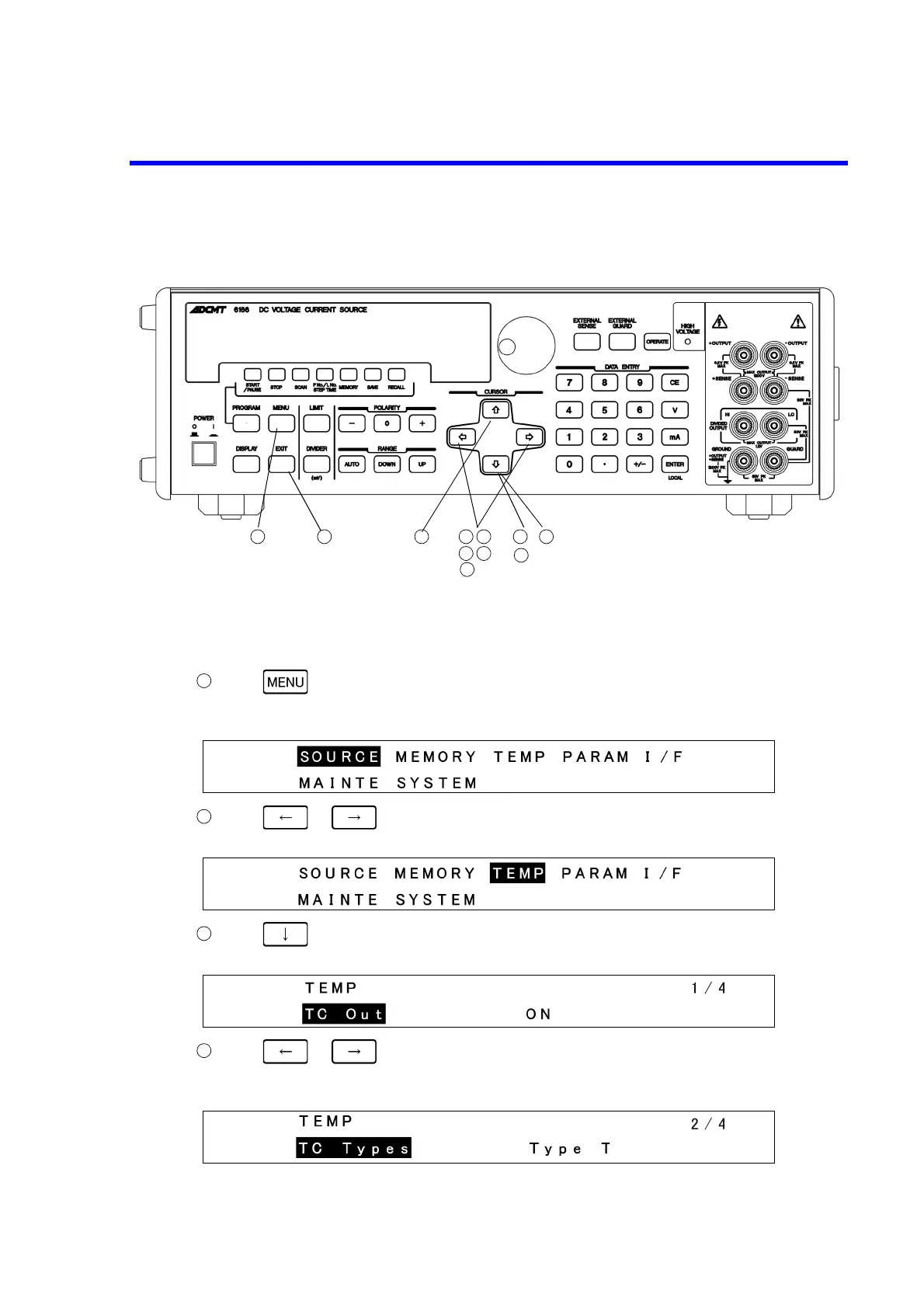

The following shows the procedure of selecting type B thermocouple and then JIS C1602-1981.
Operating procedure
Set the thermal electromotive force function previously.
For information on how to set it, refer to Section 3.10.1, "Setting Thermal Electromotive Force Function."
Press . The menu screen appears.
The MENU key lights up during menu screen display.
Example display
Press or to select TEMP.
Example display
Press to move the Select level.
Example display
Press or to select TC Types.
The highlight section switches as TC Out  TC Types  RJC Temp  JIS Standard.
Example display
