6166 DC Voltage Current Source Operation Manual
3.8.2 Setting Program Memory
3-31

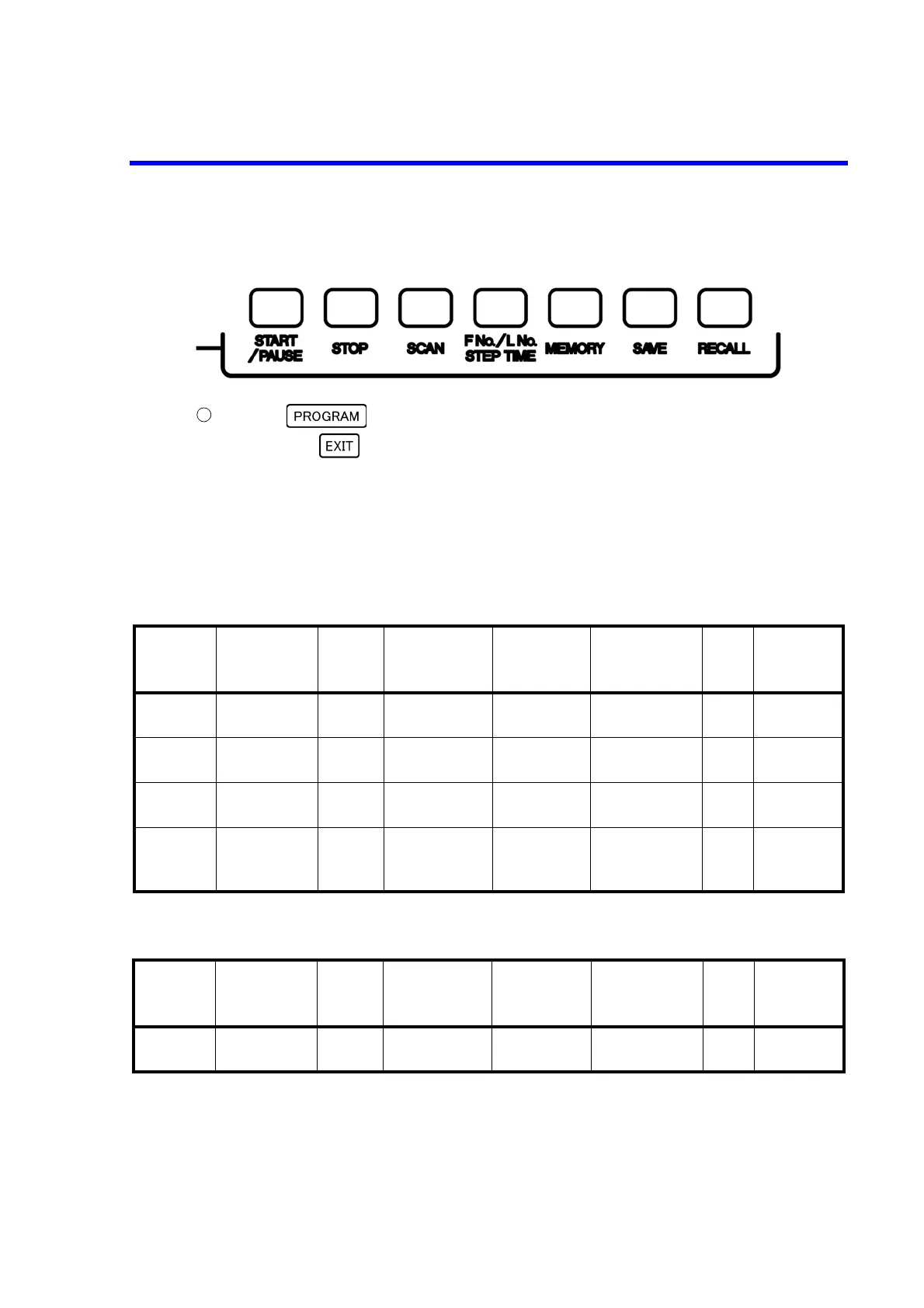

When the program function is set to ON, the functions printed below the following keys are enabled.
Pressing again disables the program function and switches to the source value screen.
Also, pressing switches back to the source value screen.
3.8.2 Setting Program Memory
Using the program function requires data to be set in the program memory.
This section describes an example to set the following data in the program memory.
The following data is set in each program memory number as initial values.
Memory
number
Source
function
Range Source value Limit value
Type of
thermocouple
JIS
Reference
junction
temperature
0 Voltage 10 V +11.00000 V VL: 50 V
IL: 50 mA
---
1 Current 100 mA -105.0000 mA VL: 130 V
IL: 125 mA
---
2 Divider volt-
age
100 mV +092.0000 mV - - - -
3 Thermal elec-
tromotive
force
- -180.0C - K 1981 +23C
Memory
number
Source
function
Range Source value Limit value
Type of
thermocouple
JIS
Reference
junction
temperature
0 to 999 Voltage 1 V +0.000000 V VL: 130 V
IL: 125 mA
---
3
