3.5 Changing Source Function
3-18
3.5 Changing Source Function
The 6166 has the following four source functions:
(1) Voltage function (Output from the OUTPUT terminals)
(2) Current function (Output from the OUTPUT terminals)
(3) Divider voltage function (Output from the DIVIDED OUTPUT terminals)
(4) Thermal electromotive force function (Output from the DIVIDED OUTPUT terminals)
This section describes the procedures of setting the above source functions.
(1) Changing to the voltage function
Operating procedure
Check that the program function is set to OFF.
When the program function is set to ON, the PROGRAM key lights up. Pressing the PROGRAM
key sets it to OFF.
This is an example when auto range is selected. Press to select auto range.
When auto range is selected, the AUTO key lights up.
The source function and the source value are set simultaneously.
The following is an example to select the minimum range (1 V range) of the voltage function and set
the source value to +0 V.
Press .
The 1 V range of the voltage function is selected and the source value is set to +0 V.

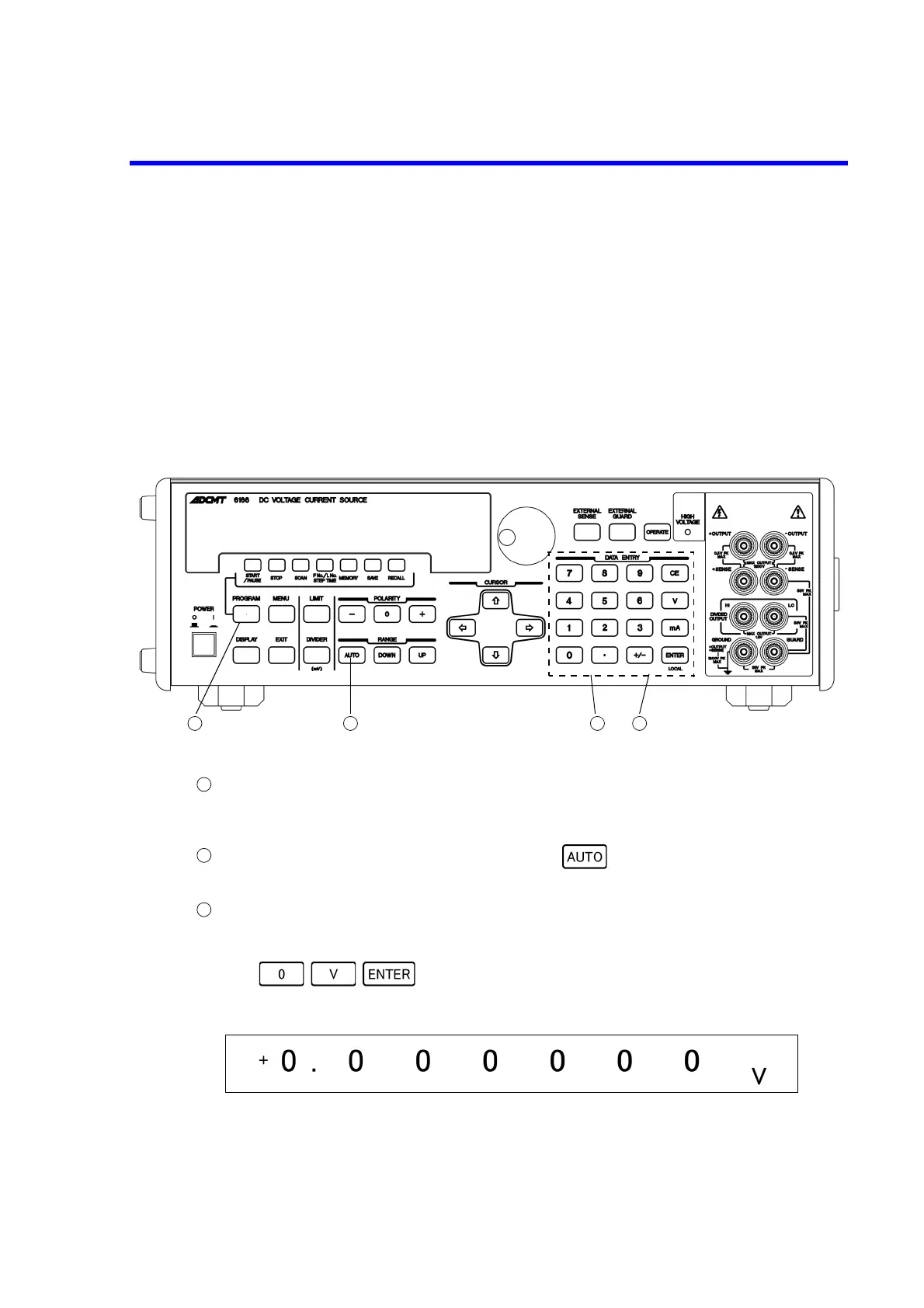

Example display
1 2 3 4
1
2
3
