6166 DC Voltage Current Source Operation Manual
2.1.4 POLARITY Section
2-4
2.1.4 POLARITY Section
The POLARITY section consists of keys to set the source value polarity and zero output.

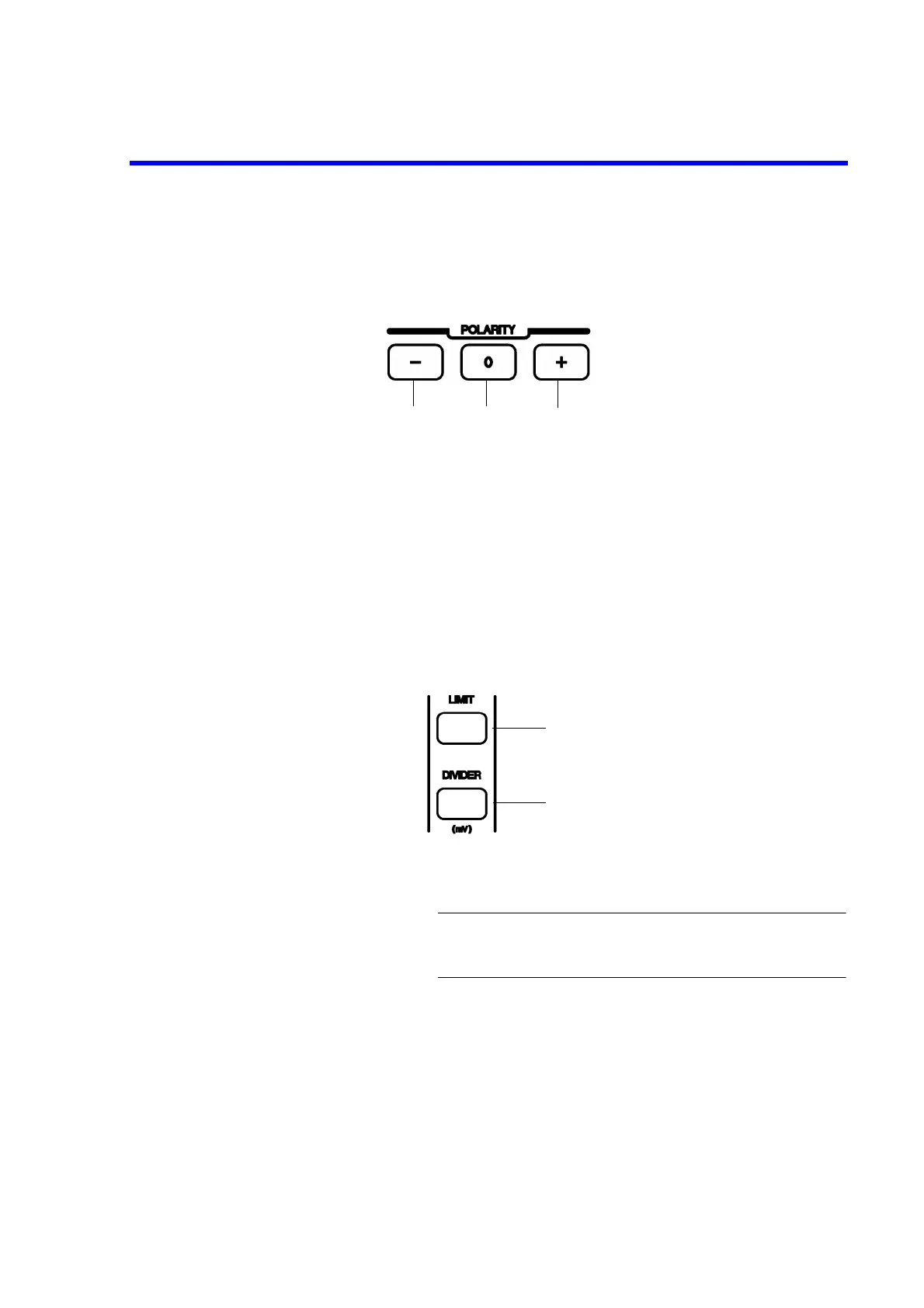

Figure 2-5 POLARITY Section
1. - key Sets the polarity of the source value to negative.
2. 0 key Sets zero output.
Goes ON when zero is output.
3. + key Sets the polarity of the source value to positive.
2.1.5 LIMIT/DIVIDER Section
The LIMIT/DIVIDER section consist of keys to set the limit values and the divider voltage function.
Figure 2-6 LIMIT/DIVIDER Section
1. LIMIT key Sets the voltage and current limit values.
NOTE: When the limit value is detected, the LIMIT key goes
ON in red. Check for the limit value setting and cable
connection.
2. DIVIDER key Selects either voltage function or divider voltage function in the
1 V range.
Goes ON when the divider voltage function is selected.
3. (mV) key Switches to the divider voltage function after numeric data input.
231
1
2, 3
