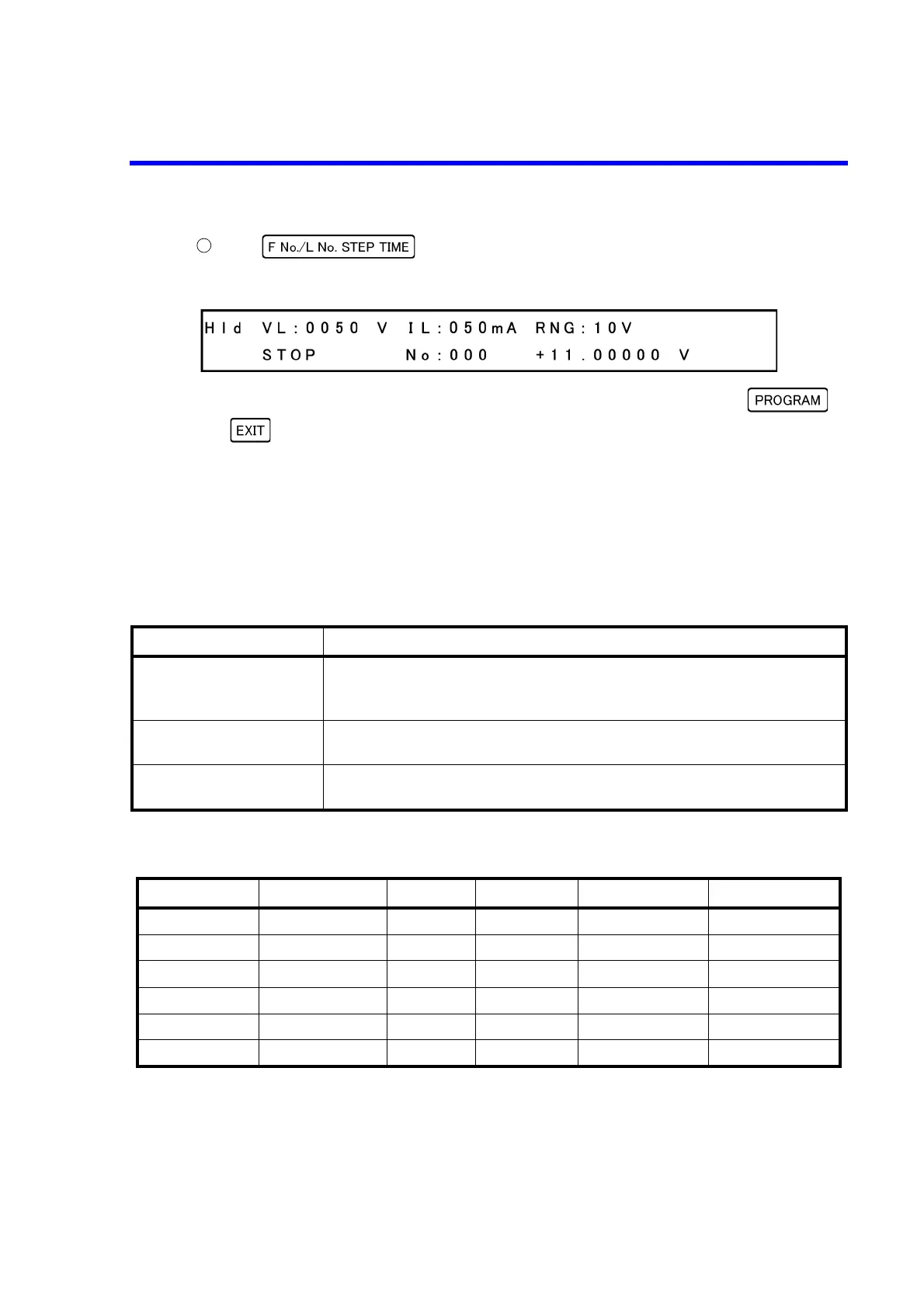

6166 DC Voltage Current Source Operation Manual
3.8.7 Starting, Stopping and Pausing Memory Scan
3-49
Press . The first/last number and step time screen is switched to the program
screen.
Example display Program screen
To terminate the program function and return to the source value screen, press or
.
3.8.7 Starting, Stopping and Pausing Memory Scan
This section describes the procedures of executing (starting, stopping and pausing) the memory scan oper-
ations.
Examples are given assuming that the following program memory data and parameters have been set.
Start number: 0
Stop number: 5
Step time: 1 second
Table 3-11 Memory Scan Operations
Scan operation Description
Hold Outputs the source values from the specified first number to last number in order
by every trigger input.
The trigger input includes key, remote and external trigger input.
Single Outputs the source values from the specified first number to last number in order at
step time intervals.
Repeat Outputs repeatedly the source values from the specified first number to last num-
ber in order at step time intervals.
Memory number Source function Range Source value Voltage limit value Current limit value
0 Voltage 10 V +10.00000 V 130 V 125 mA
1 Voltage 10 V +10.10000 V 130 V 125 mA
2 Voltage 10 V +10.20000 V 130 V 125 mA
3 Voltage 10 V +10.30000 V 130 V 125 mA
4 Voltage 10 V +10.40000 V 130 V 125 mA
5 Voltage 10 V +10.50000 V 130 V 125 mA
7
