ADCMT 6166 User Manual

6166 DC Voltage Current Source Operation Manual

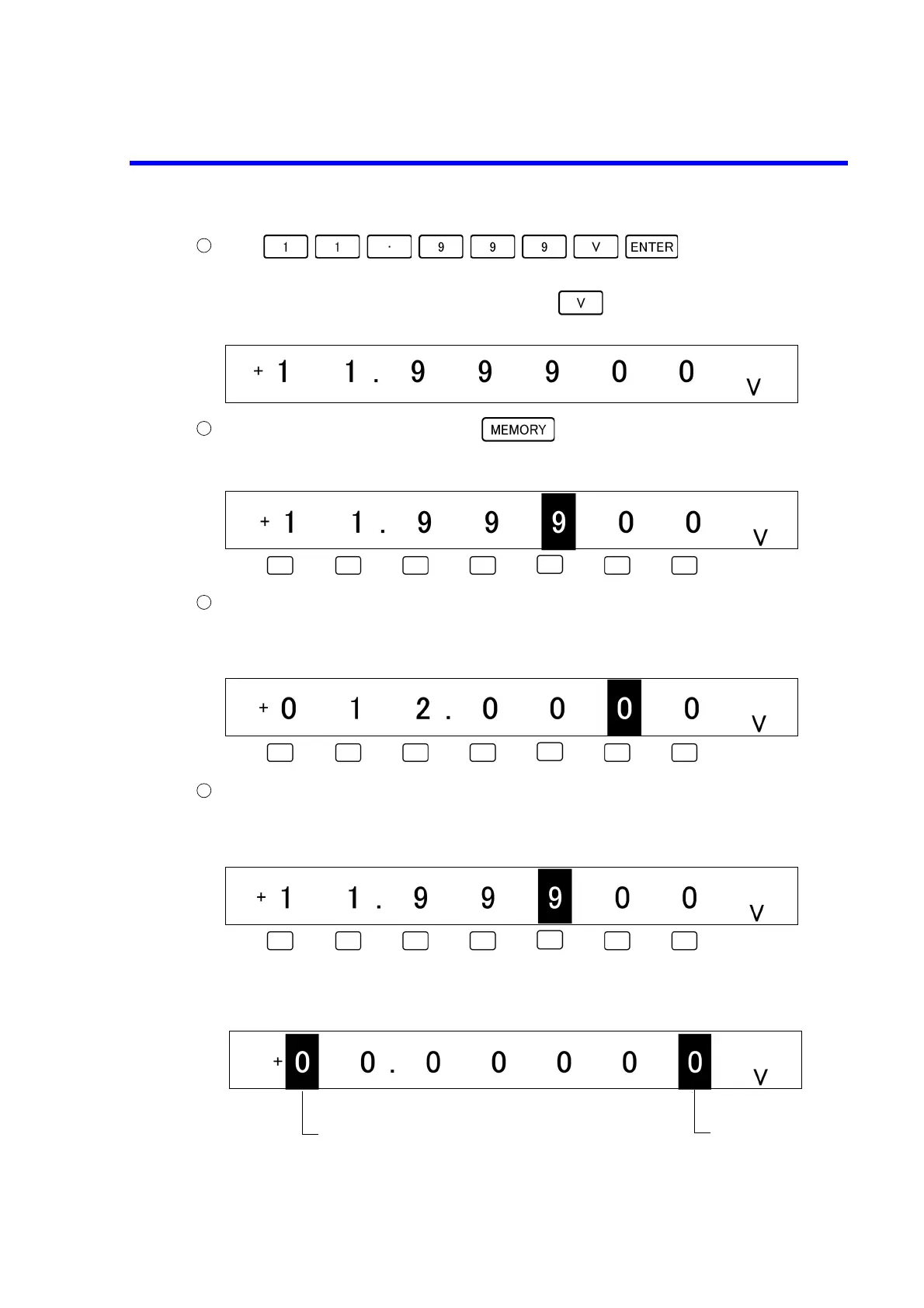

3.3.3 Outputting Voltage with Rotary Knob (Auto Range)
3-12
Press to set the voltage function
to +11.999 V.
• When the unit is previously set to "V," entering can be omitted.
Example display
Press the third DIGIT key from the right to select a digit to be changed.
The cursor (highlight) appears on the selected digit.
Example display
Rotate the rotary knob one click clockwise to change the figure from 9 to 0.
The source value becomes +12.0000 V and the range is automatically raised from 10 V range to
100 V range.
Example display
Rotate the rotary knob one click counterclockwise to change the figure from 0 to 9.
The source value becomes +11.99900 V and the range is automatically lowered from 100 V range to
10 V range.
Example display
• When the cursor is on the rightmost digit, the range is not automatically raised.
When the cursor is on the leftmost digit, the range is not automatically lowered.
Example display
2
3
4
5
The range is not lowered automatically when
the cursor is here.
The range is not raised
automatically when the
cursor is here.
