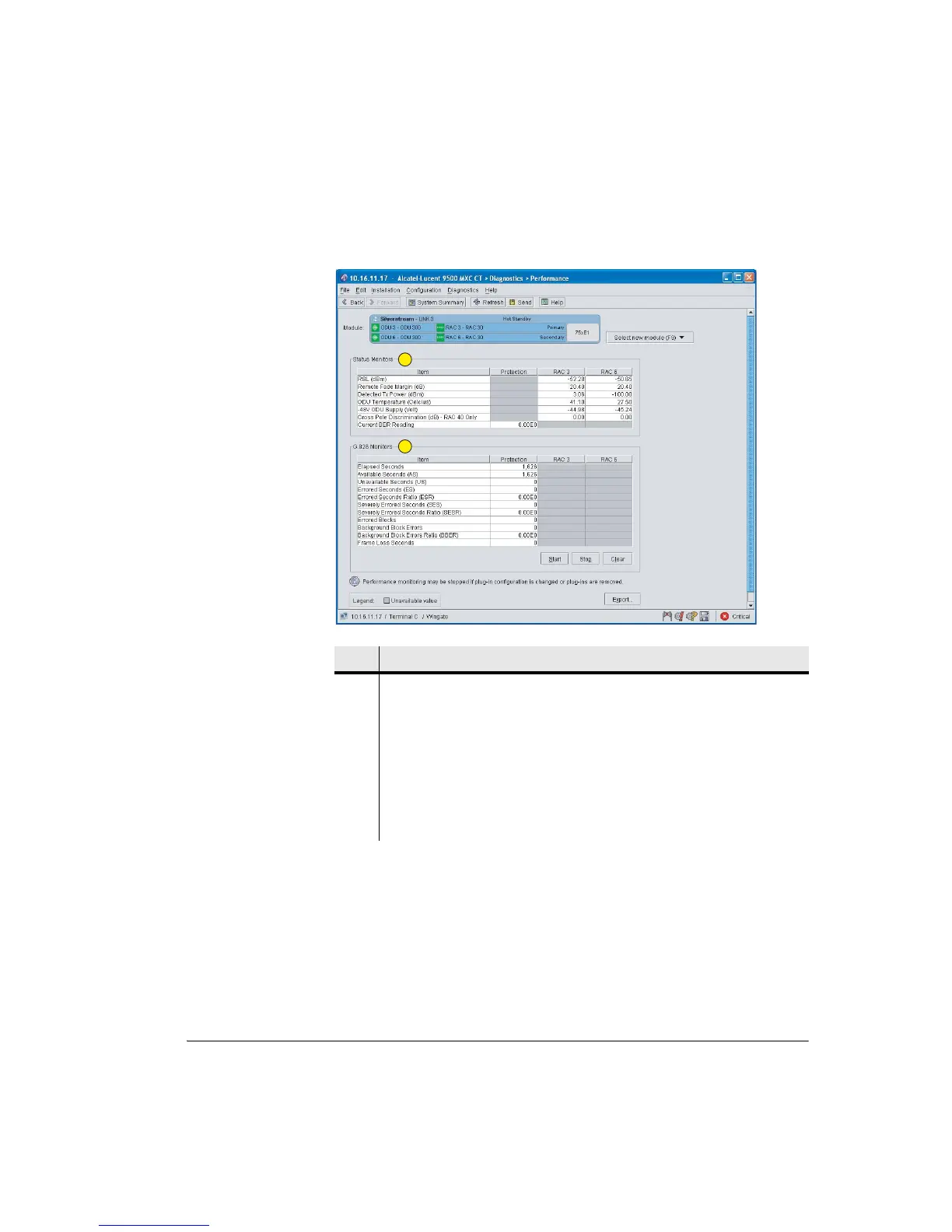

Figure 15-10. Example Performance Screen for a Protected Link
Item Description
1 Status Monitors provide a real time view of operational status/performance for
both RACs.
• Detected Tx power is only shown for the online transmitter (s). The primary
Tx is default online for hot-standby and space diversity. Both are online for
frequency diversity.
• Current BER reading applies to the protected link
1
- it is not RAC specific.
1. Current BER and G.826 statistics are the aggregate for the 1+1 link (the aggregate of the
secondary and primary RACs).
2 G.826 Monitors provide statistics for the protected link
1
- data is not RAC
specific.
1
2
