Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 139

Connect to Different EtherNet/IP Network Levels Chapter 6

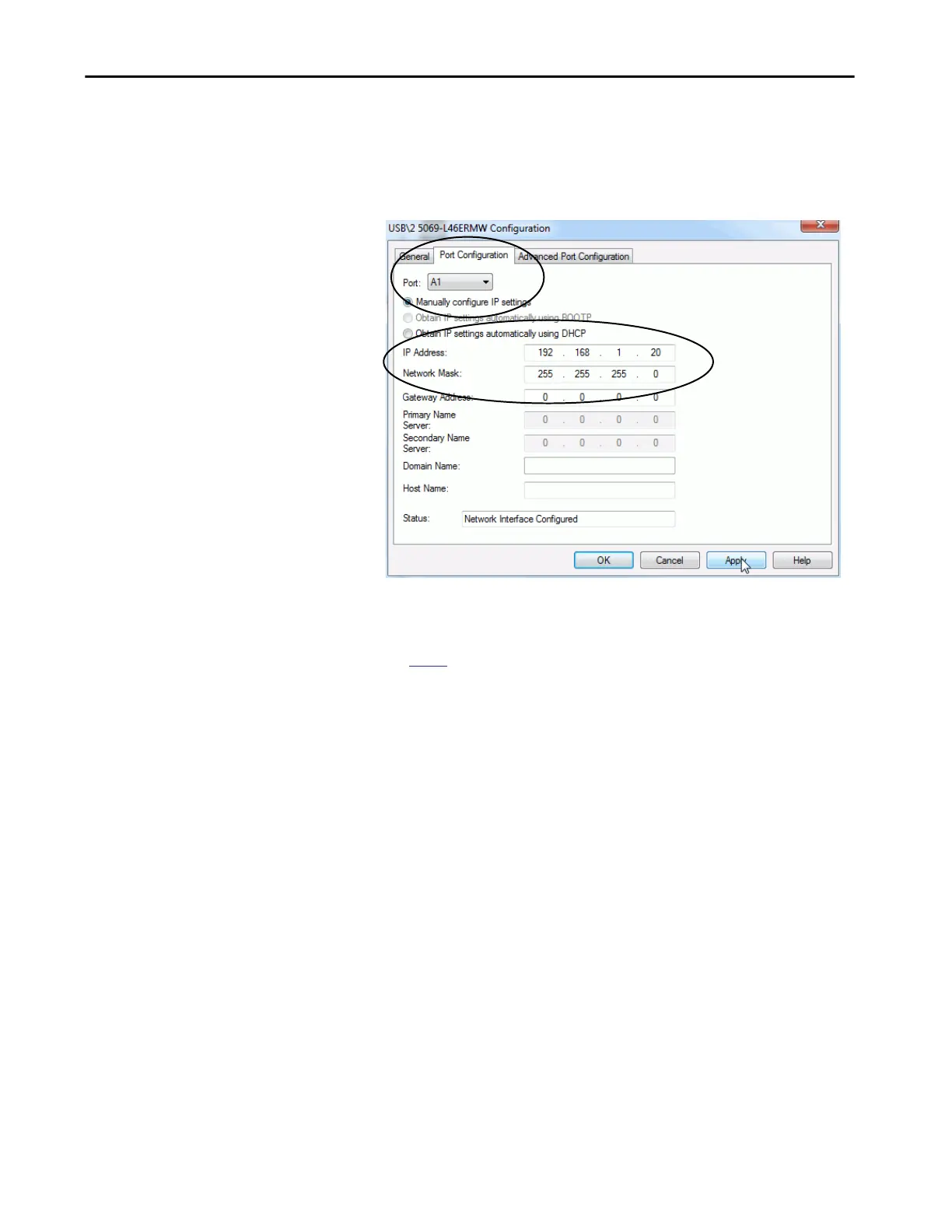

2. On the Port Configuration tab, click Manually configure IP settings.

3. From the Port pull-down menu, choose A1.

4. Assign IP Address and Network Mask values, and click Apply.

5. Repeat the steps.

step 1, make sure that you choose A2 from the Port pull-down menu.
