246 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 11 Troubleshoot the Controller

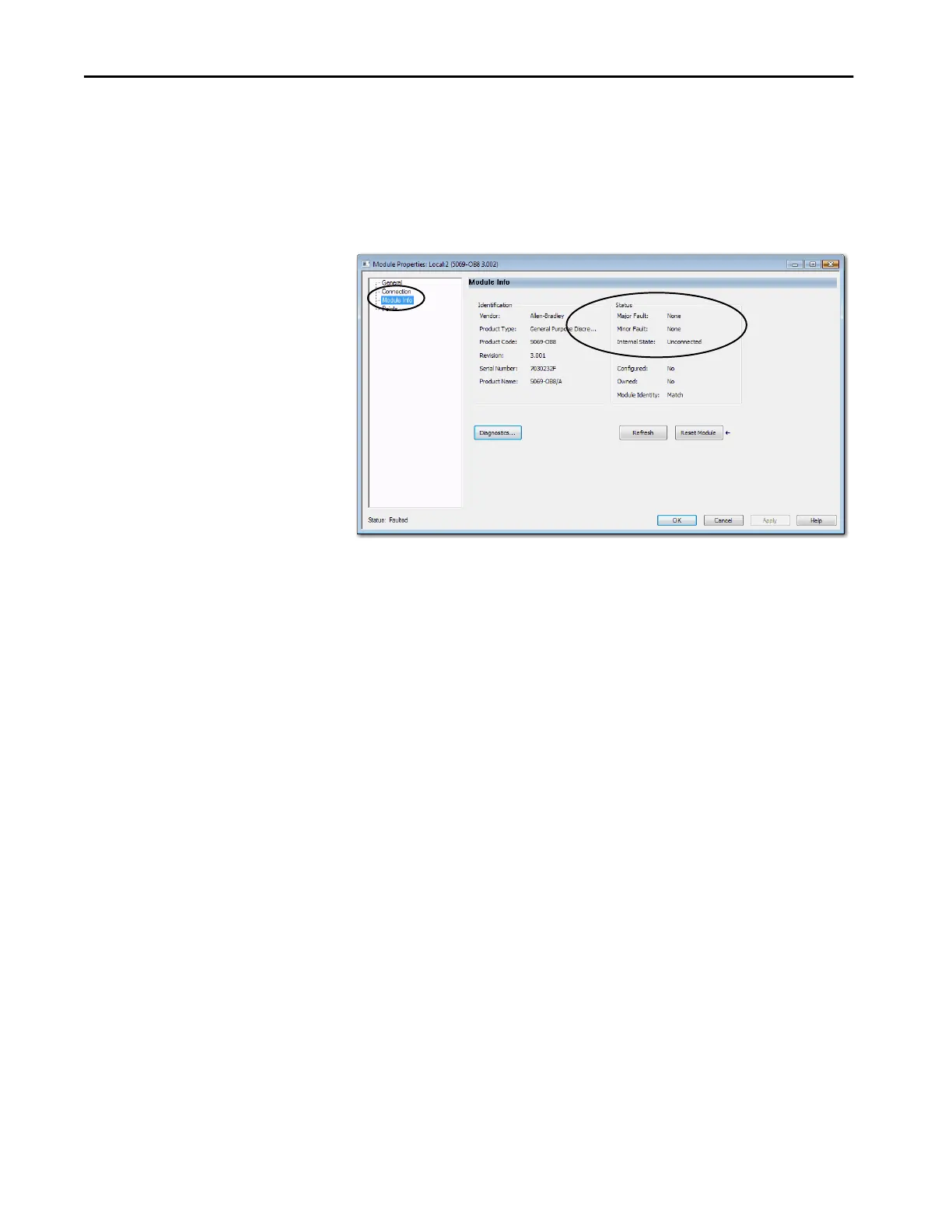

On the Module Info category, the Status section displays the following about

the I/O module:

• Major and Minor Faults

• Internal State

Figure 52 - Major and Minor Fault Information
