Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 247

Troubleshoot the Controller Chapter 11

Diagnostics Option on Module Info Category

You can access the diagnostics for a module from the Module Info category.

Click Diagnostics, to access the Module Diagnostics dialog box.

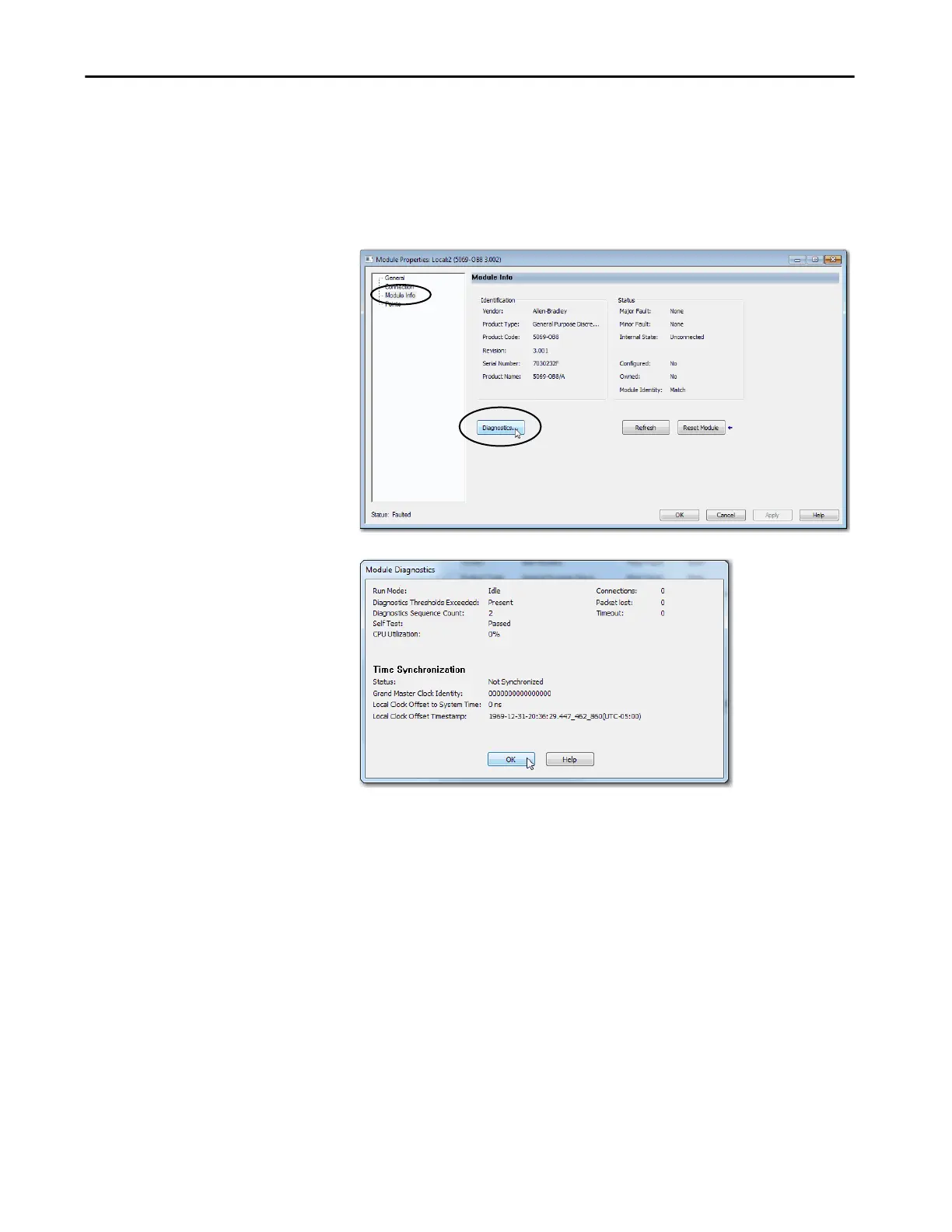

Figure 53 - Module Diagnostics
