50 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 2 Connect to the Controller

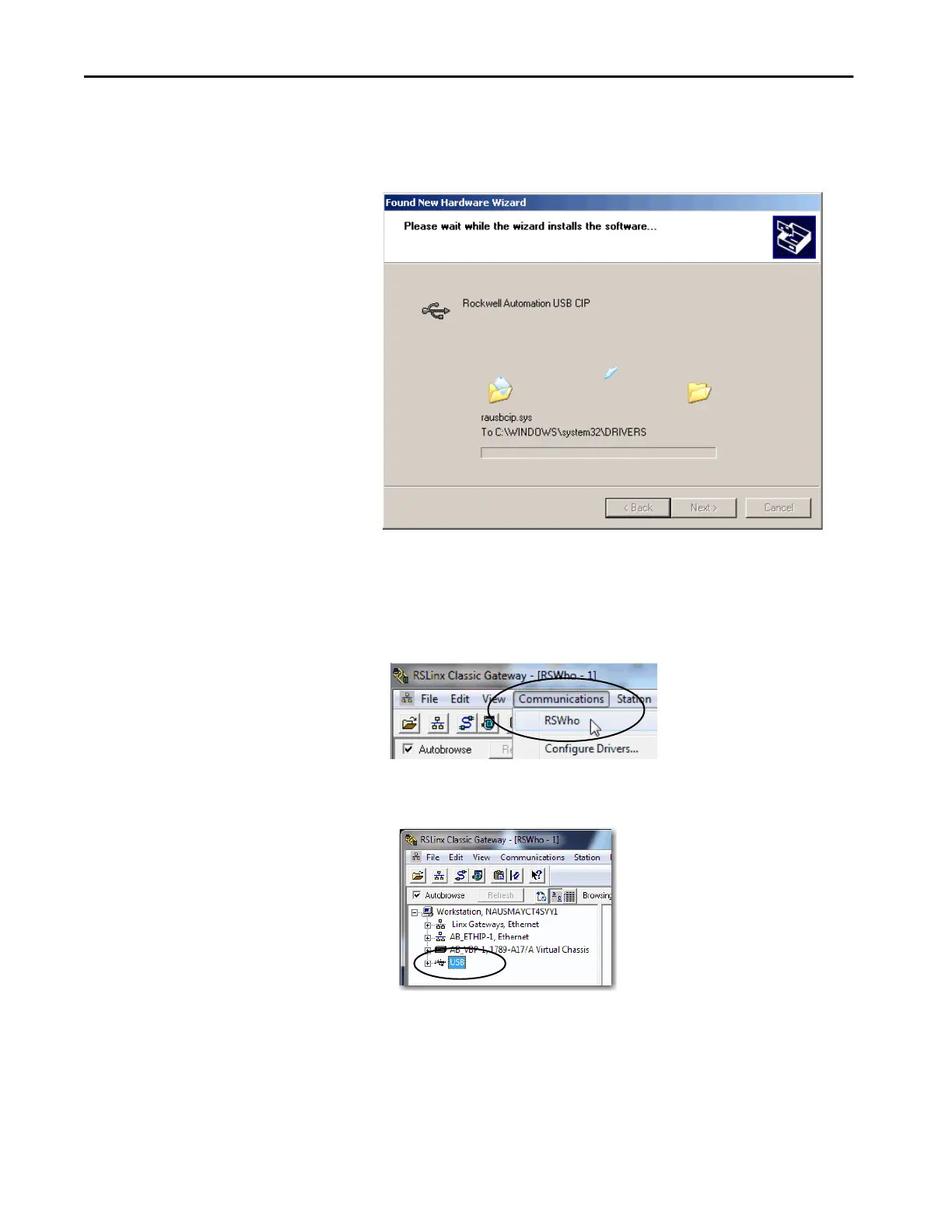

3. Click Install the software automatically (Recommended) and

click Next.

The software is installed.

4. Click Finish to configure your USB driver.

5. In RSLinx Classic software, from the Communications pull-down

menu, choose RSWho.

The USB Port Driver appears.
