Rockwell Automation Publication 5069-UM002A-EN-P - January 2019 71
Connect to the Controller Chapter 2
Use ControlFLASH or ControlFLASH Plus Software to Update Controller Firmware Only
1. Verify the following:
• The network connection is made.
• The network driver has been configured in RSLinx Classic software.
• The controller is in Remote Program or Program mode and all major
recoverable faults are cleared.

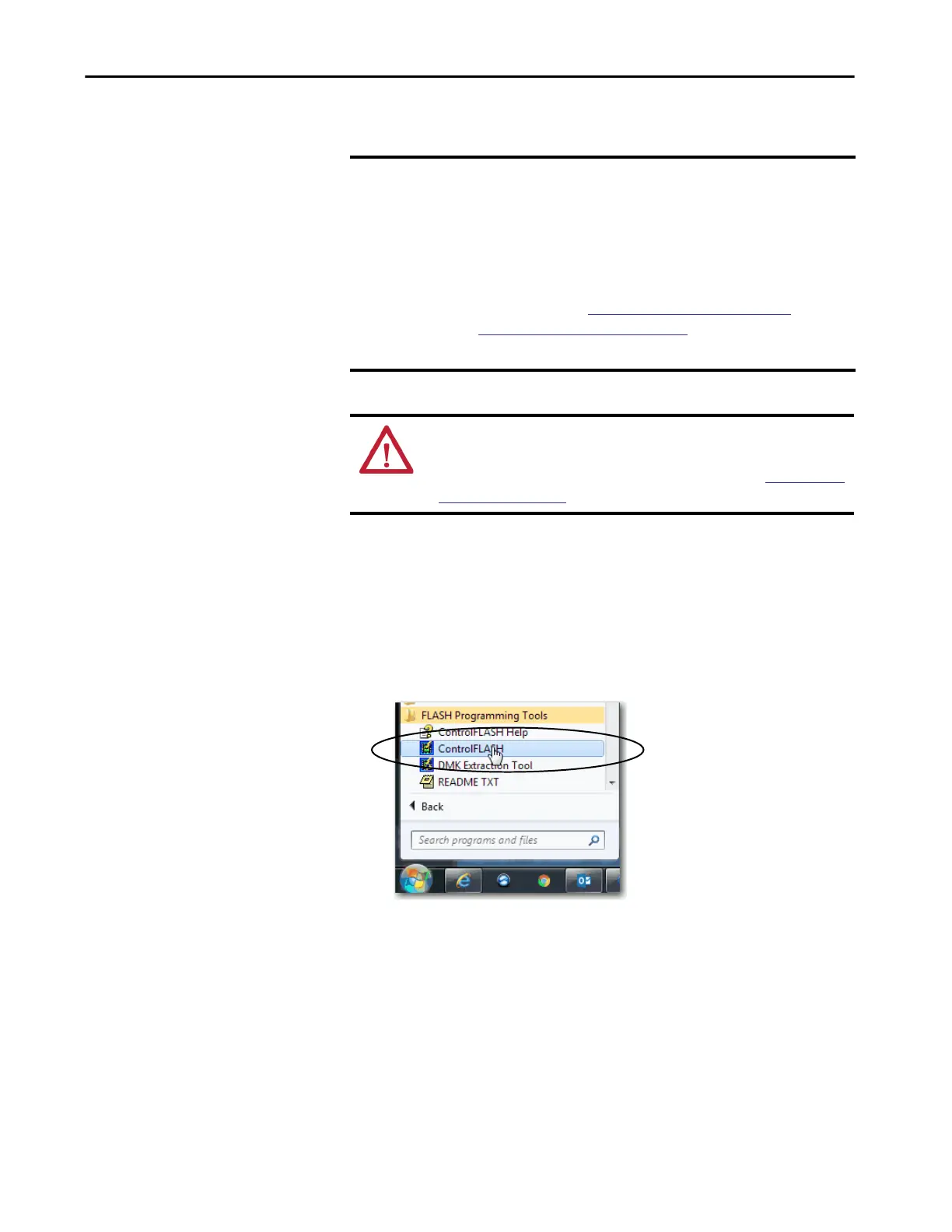

2. Start the software.
IMPORTANT You must use ControlFLASH software, version 15.01.00 or later, or
ControlFLASH Plus, version 1.01.00 or later, with CompactLogix 5480
controllers.
The software is available as follows:
• Part of Studio 5000 Logix Designer application installation process
• Standalone download from the Product Compatibility and
Download Center at:
http://www.rockwellautomation.com/
rockwellautomation/support/pcdc.page
This section shows how to use ControlFLASH software.
ATTENTION: If the Secure Digital (SD) card is locked and set to load on
power-up, this update can be overwritten by firmware on the SD card.
For more information on how to use an SD card, see Chapter 4,
Use the Secure
Digital Card on page 101.
