80 Rockwell Automation Publication 5069-UM002A-EN-P - January 2019

Chapter 3 Start to Use the Controller

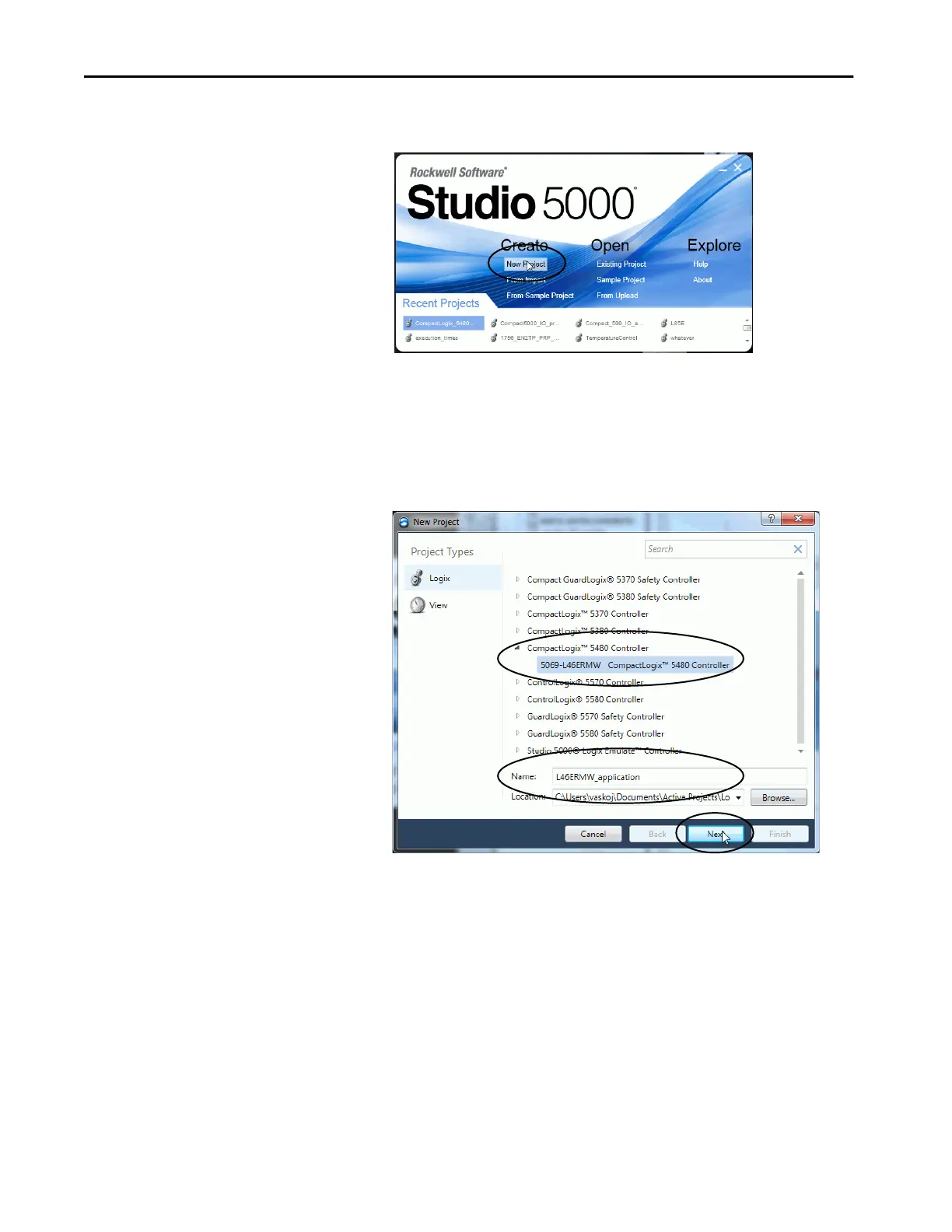

2. Click New Project.

3. On the New Project dialog box, complete the following steps:

a. Select the controller.

b. Name the project.

c. Browse to the location where the project file is created.

d. Click Next.
