Programming

NetLinx Studio - Instruction Manual

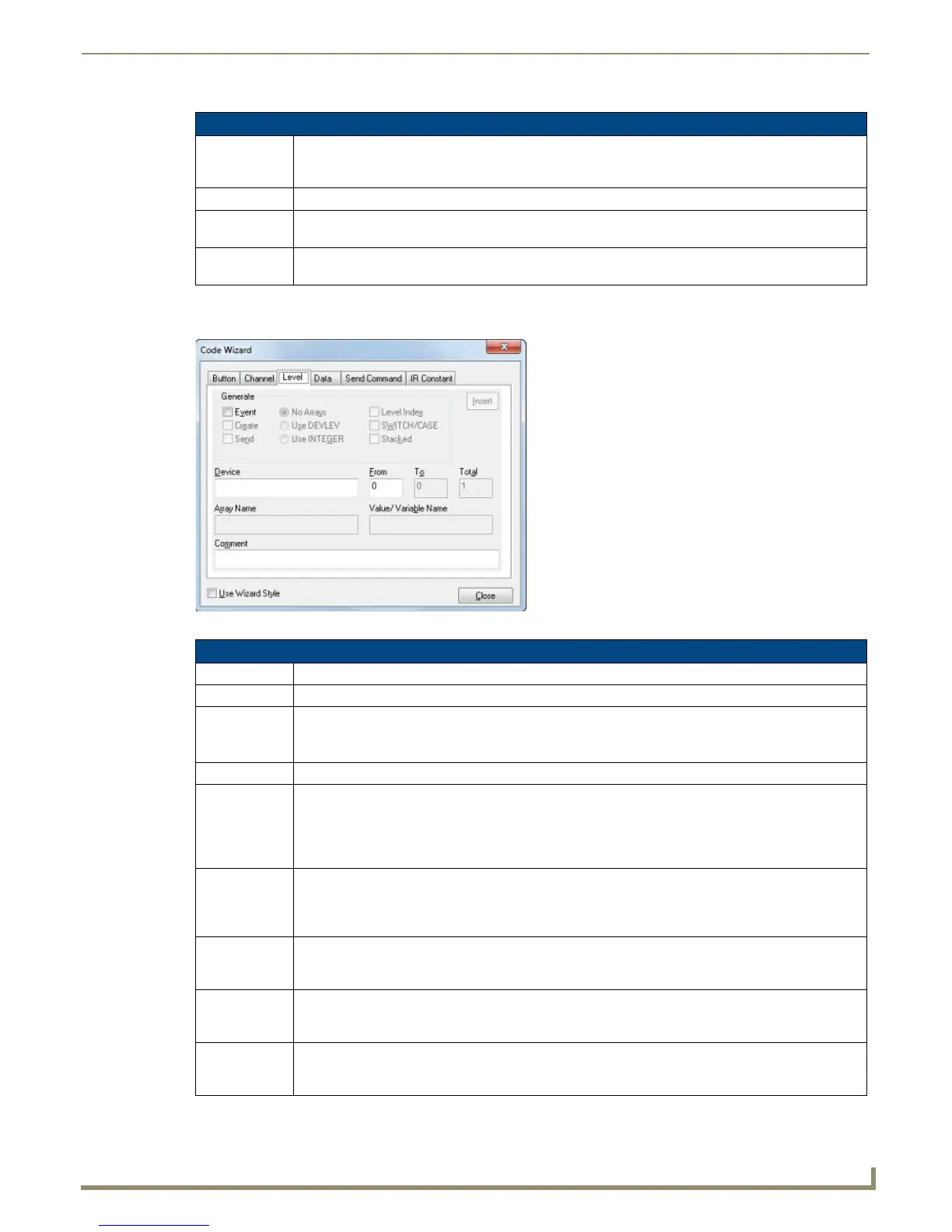

Code Wizard dialog - Level tab

The advanced options available for LEVEL_EVENTs in the Level tab (FIG. 168) are described below:

Code Wizard - Channel tab Options (Cont.)

From, To, Total The channel range used during code generation. The range is 1 - 1000. You may change any of these

values; the others will adjust automatically. A value of 0 (zero) in the From field will generate an "all

channel" handler. In this case, code generation cannot support arrays.

Array Name The array name used for generating DEVCHAN or INTEGER array for channel ranges.

Comment This value is used on the lines before the array definition, CHANNEL_EVENT statements as

determined by the options. Comments in NetLinx are always line-style comments (i.e. //).

Insert Once you have made the relevant selections on this tab, click this button to insert the specified code

into the file.

FIG. 168

Code Wizard dialog - Level tab

Code Wizard - Level tab Options

Event Generate LEVEL_EVENT statements.

Create Generate CREATE_LEVEL statements.

Send Generate SEND_LEVEL statements.

Note: You cannot generate EVENT_LEVEL statements and CREATE_LEVEL or SEND_LEVEL

statements at the same time.

No Arrays Level ranges will be generated without using arrays (i.e. multiple LEVEL_EVENTs will be generated).

Use DEVLEV Level ranges will be placed in a DEVLEV array named Array Name using the Device and button range

defined as From through To in the DEFINE_VARIABLE section. A single LEVEL_EVENT statement

referencing Array Name will be generated. If CREATE_LEVEL and/or SEND_LEVEL statements will be

generated, each construct will reference this array for the level number for NetLinx only. Note that when

Use DEVCHAN is selected, GET_LAST() is selected and disabled.

Use INTEGER Level ranges will be placed in an INTEGER array named Array Name using the button range defined as

From through To in the DEFINE_VARIABLE section. A single LEVEL_EVENT statement referencing

Device and Array Name will be generated. If CREATE_LEVEL and/or SEND_LEVEL statements will be

generated, each construct will reference this array for the level number.

Level Index This option will include a calculation for the level index using a mathematical calculation,

LEVEL.INPUT.LEVEL- From, for non-array level ranges and a function call to GET_LAST(),

GET_LAST(Array Name), for array level ranges. The option is only used for LEVEL_EVENTs.

SWITCH/CASE This option will include a SWITCH/CASE construct under the LEVEL_EVENT statement. The SWITCH

will be based on the Level Index. Note that when SWITCH/CASE is selected, the Level Index option is

selected and disabled.

Stacked This option will cause each level in the Array Name definition to be generated on it's own line with an

empty comment at the end of the line. If this option is not selected, eight levels will be generated on

each line with an empty comment above the line
