Communication Settings
122
NetLinx Studio - Instruction Manual
Manually Entering the Master’s IP Address Information
1.
In the Communication Settings dialog, click New to open the New TCP/IP Setting dialog (FIG. 189).
2. Enter the TCP/IP Address for the target Master Controller.
3. Enter a Description.
4. Leave the Automatically Ping the Master to ensure availability option selected.
5. Enter the User Name and Password required by the target Master (only if the Master is secured).
6. Click OK to close this dialog and return to the Communication Settings dialog. The new Master’s IP Address is
indicated in the List of Addresses (FIG. 190).
7. Select the new Master connection in the List of Addresses. This populates the Current Platform-Transport Selected
field with the selected connection (FIG. 191).
Click Settings > Master Communications Settings to open the Master
Communication Settings dialog, and click the Communication Settings button to
open the Communication Settings dialog.

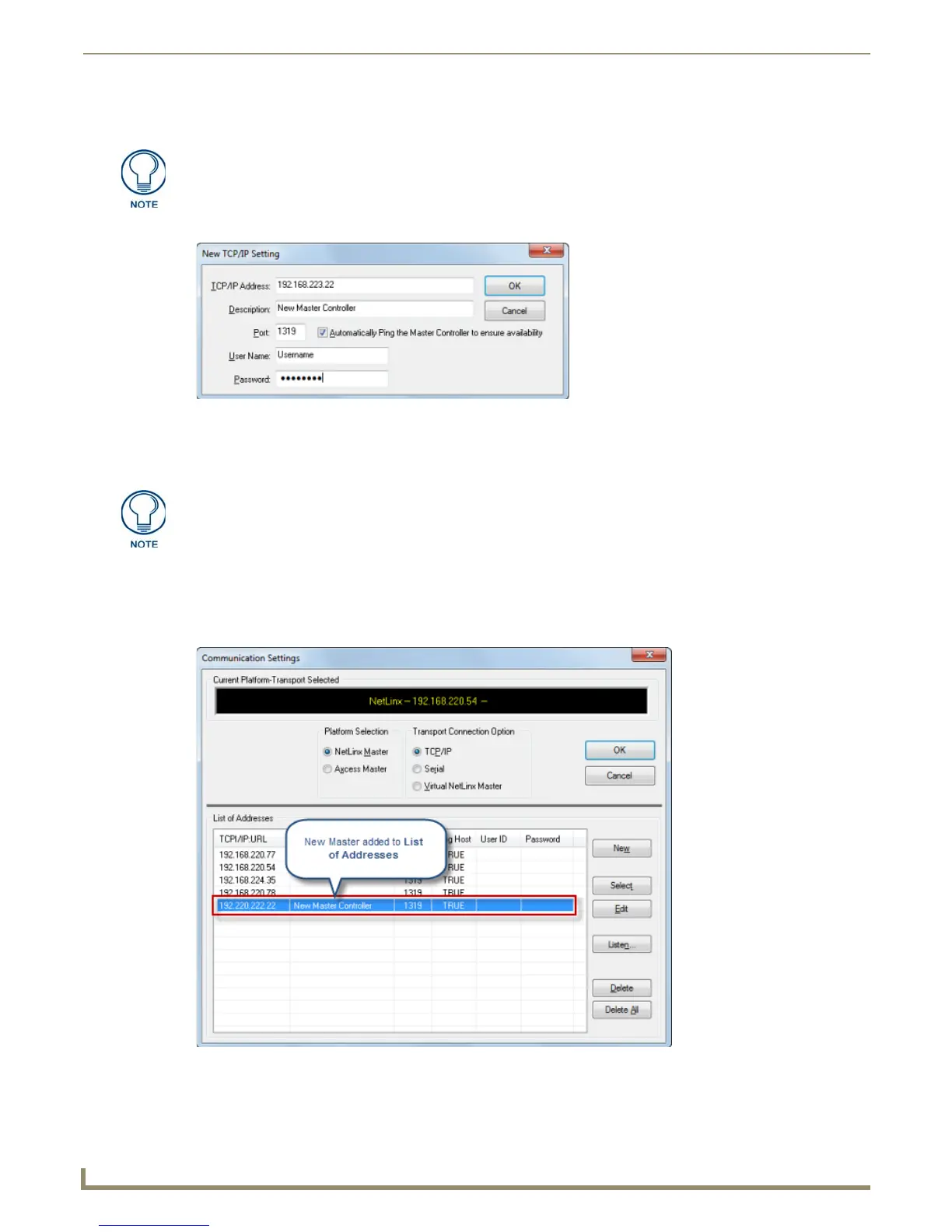

FIG. 189 New TCP/IP Setting dialog
The Port should always be set to 1319 (default setting). Do not change the Port
assignment.
FIG. 190 List of Addresses, indicating new Master Controller
