Communication Settings

135

NetLinx Studio - Instruction Manual

Connecting to an Axcess Master

To connect to an Axcess master, use the options in the Communication Settings dialog to specify the serial port or

modem settings, depending on the transport connection type specified. These instructions in these topics assume that the

physical link between the PC running NetLinx Studio and the master is established.

1. Select Settings > Master Communication Settings to open the Master Communication Settings dialog.

2. Click Communication Settings to access the Communication Settings dialog.

3. Select Axcess Master as the Platform selection (FIG. 211).

4. Under Serial Connection Options, select a COM port and specify the communication settings for serial port

communications. Click OK to save changes and close the Communication Settings dialog.

5. Click OK to save changes and close the Master Communication Settings dialog.

6. In the online tree (displayed in the Online Tree tab of the Workspace Bar), click Display to open the Online Tree

sub-menu, and select Refresh Network to refresh the online tree display.

7. Double-click the System icon to expand the tree to show the Axcess master.

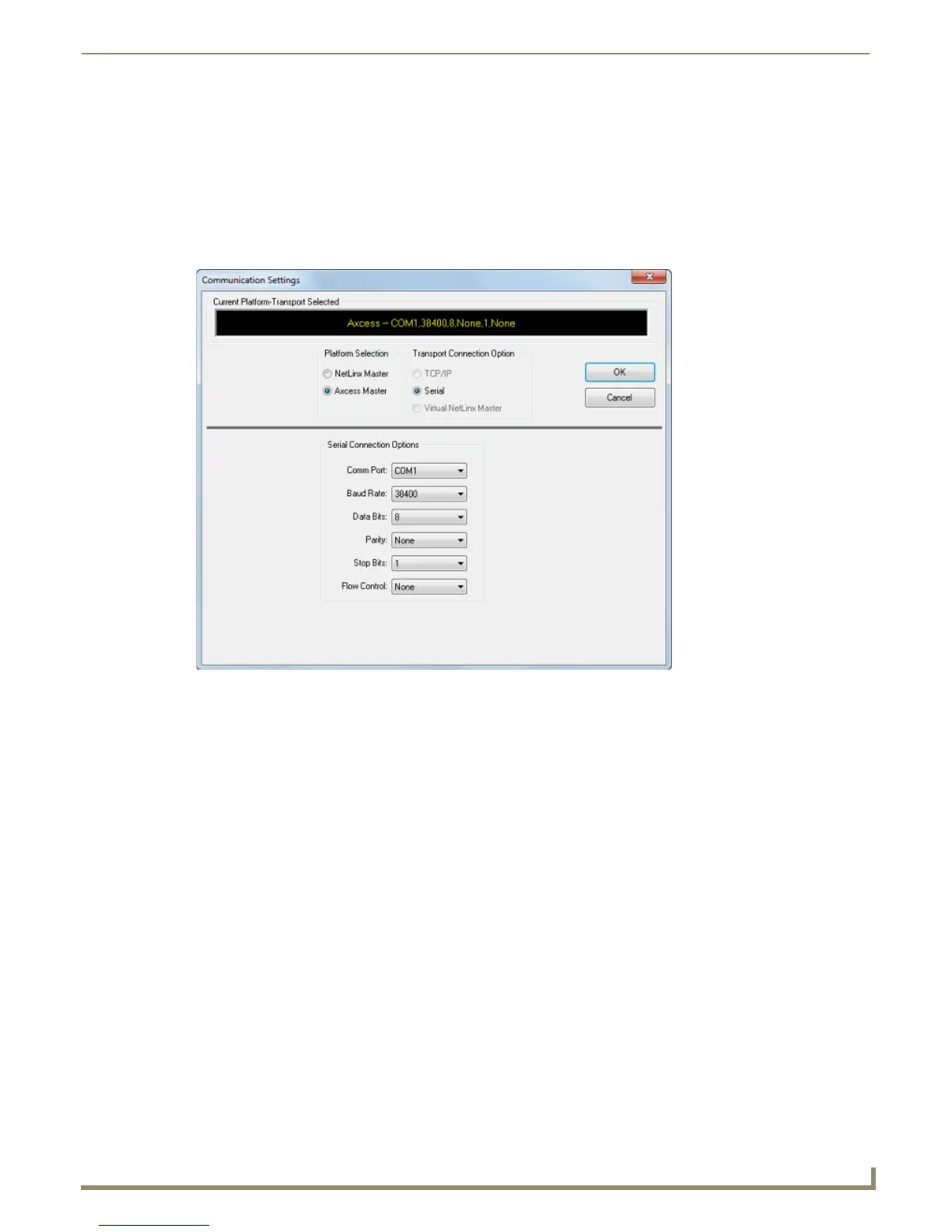

FIG. 211 Communication Settings dialog - Axcess settings
