Working with System Files
56
NetLinx Studio - Instruction Manual
7. Click Next to proceed to the final File Template dialog which notifies you that the file was created (FIG. 109).
8. Click Finish to close the File Template dialog.
The new Module file is opened in an Editor window for editing. Also, the new file should now appear in the Module
folder, under the selected System (FIG. 110).
Adding an Existing Module File to a System
1.
Click to select (highlight) a System in the Workspace tab of the Workspace Bar.
2. Right-click on the Module folder to access the Module Folder context menu, and select Add Existing Module File
(FIG. 111).
3. In the Add Existing Module File dialog, locate and select the Module file that you want to add to the selected
System. Use the Recent tab to quickly access recently used files (FIG. 112).

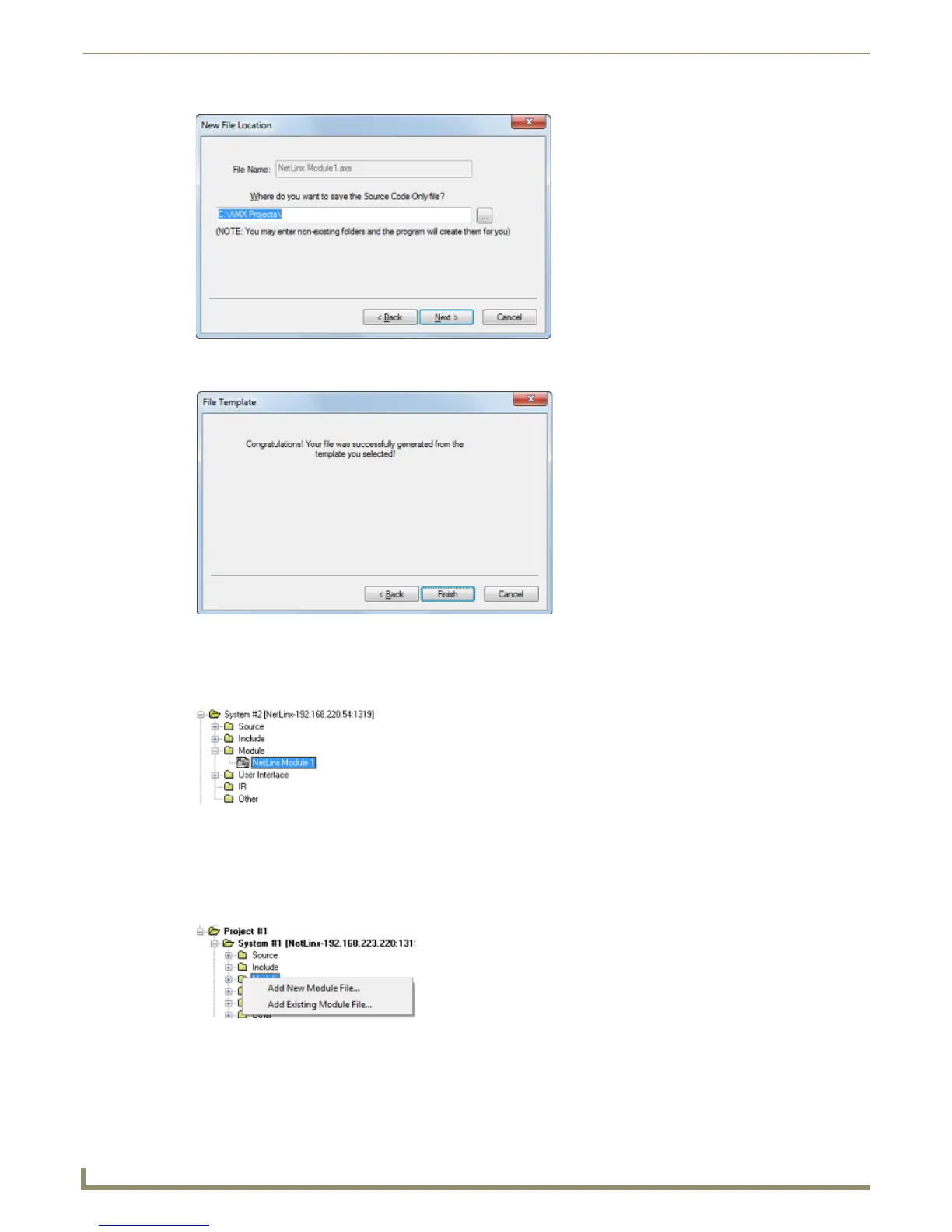

FIG. 108 New File Location dialog
FIG. 109 File Template dialog
FIG. 110 Workspace tab - Module File Added
FIG. 111 Source Folder Context Menu
