Programming
85
NetLinx Studio - Instruction Manual
Code Wizard - Creating Channel Events
1.
With I want to generate one or more CHANNEL EVENT(s) selected, click Next to proceed to the next dialog in
the Wizard (FIG. 152).
2. Select On and/or Off to create on and/or off statements for this Channel Event as desired (both unchecked by
default). Note that at least one option must be selected to enable the Next button.
3. Click Next to proceed to the next dialog (FIG. 153).
4. Use this dialog to specify how many channels should be handled by this Channel Event:
By default, I want to handle a single channel is selected. With this option selected, enter the channel number
to associate with this event in the Channel: field (as show in FIG. 153).
With I want to handle a range of channels selected, indicate the range of channels to include (First and
Last) to associate with this event (FIG. 154).
Select I want to handle all channels to apply this event to all channels.

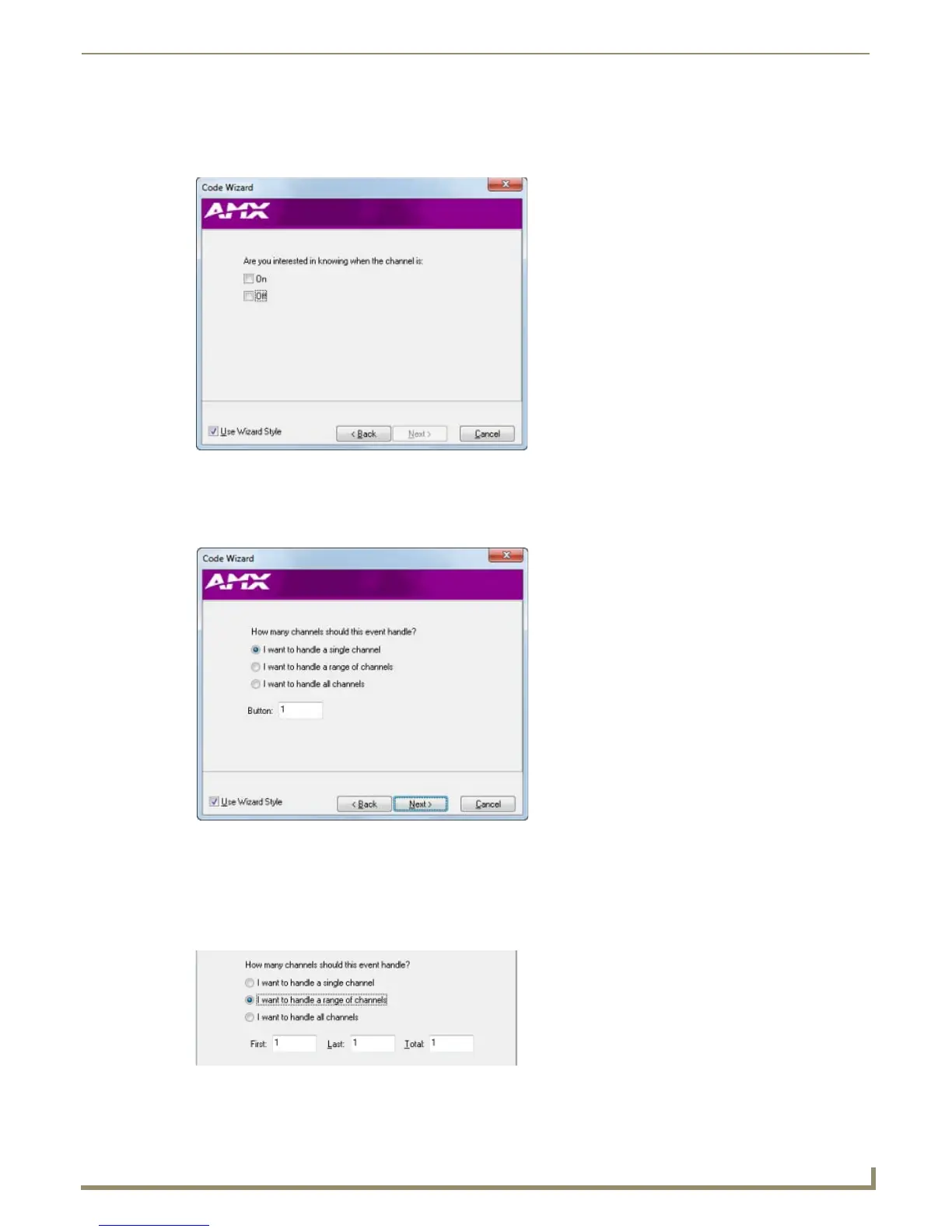

FIG. 152 Channel Event Code Wizard dialog 1
FIG. 153 Channel Event Code Wizard dialog 2
FIG. 154 Channel Event Code Wizard dialog 2 - Range of Channels
