NetLinx Studio (v3.3 or higher)
6
NetLinx Studio - Instruction Manual
Output Bar
There are 6 tabs contained in the dockable Output Bar (FIG. 8).
Status tab - Displays build information pertaining to the last compilation of source code files, as well as port
status information. Double-click on a line containing an compiler error message to open the file in an Editor
window, with the cursor positioned at the beginning of the line containing the indicated error. The version
number of the compiler (NetLinx or Axcess) is displayed in the Status tab, whenever source code is being
compiled.
Find In Files tab - Displays the results of a Tools > Find In Files search operation. Right-mouse click in the
view to see the available options to save or copy the contents of this list. See Find In Files on page 190.
Find IR Files tab - Displays the results of a Tools > Find IRL/IRV search operation. Double-click on a listed
file to open it for viewing/editing in the IREdit utility program. See Find IRL/IRV Files on page 189.
File Transfer Status tab - Displays the status on the list of files that are have been or are being transferred.
See File Transfer Operations on page 149.
Notifications tab - Displays the asynchronous notification messages being received from the master
controller. See NetLinx Device Notification Options on page 167.
Diagnostics tab - Displays all the internal system diagnostic messages that are generated by a NetLinx
master. See Enable NetLinx Internal Diagnostics Messages on page 172.
Right-click inside any of the Output Bar tabs to access the Output Bar context menu.
Watch Bar
The Watch Bar is displayed when Start Debugging is selected from the Debug menu, or via the Debug toolbar (FIG. 9).

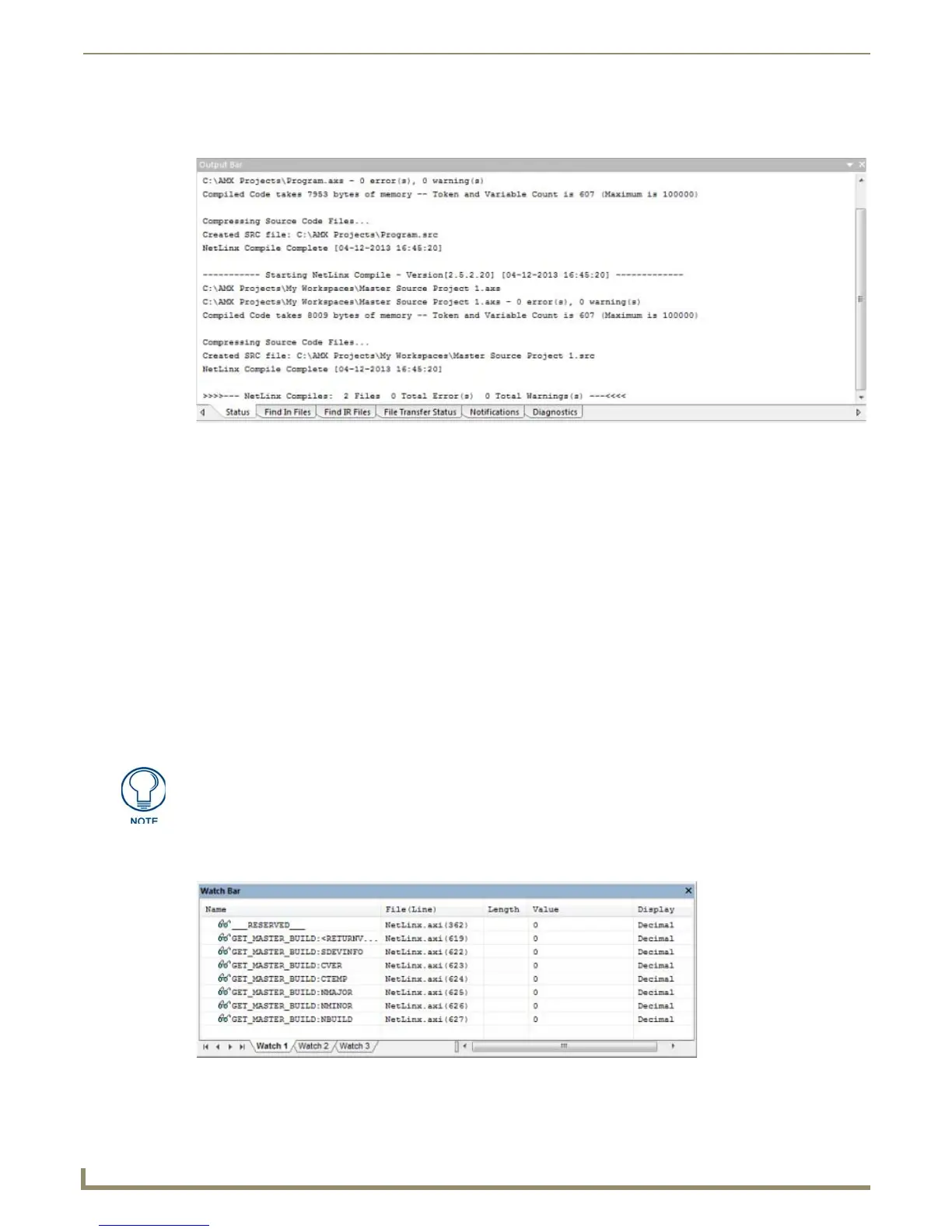

FIG. 8 Output Bar
Select View > Output to toggle (show/hide) the Output Bar.
FIG. 9 Watch Bar
