Communication Settings
127
NetLinx Studio - Instruction Manual
Editing a TCP/IP Address
In the Communication Settings dialog, with NetLinx Master selected as the Platform Selection, and TCP/IP selected as
the Transport Connection Option:
1. Select an address in the List of Addresses, and click Edit to open the Edit TCP/IP Setting dialog (FIG. 200).
2. Edit the fields as desired and click OK to save your changes and close the dialog.
Deleting a TCP/IP Address
In the Communication Settings dialog, with NetLinx Master selected as the Platform Selection, and TCP/IP selected as
the Transport Connection Option:
1. Select an address in the List of Addresses, and click Delete.
2. The deleted address is removed from the List of Addresses.
Click Delete All to clear the List of Addresses.
Connecting to a Master Controller via Serial
1. Select Settings > Master Communications Settings to open the Master Communication Settings dialog
(FIG. 183).
2. Click Communication Settings to open the Communication Settings dialog.
3. Select the Platform and the Transport Connection Option (Serial). This populates the dialog with options for
configuring Serial communication settings with the target Master Controller (FIG. 202).

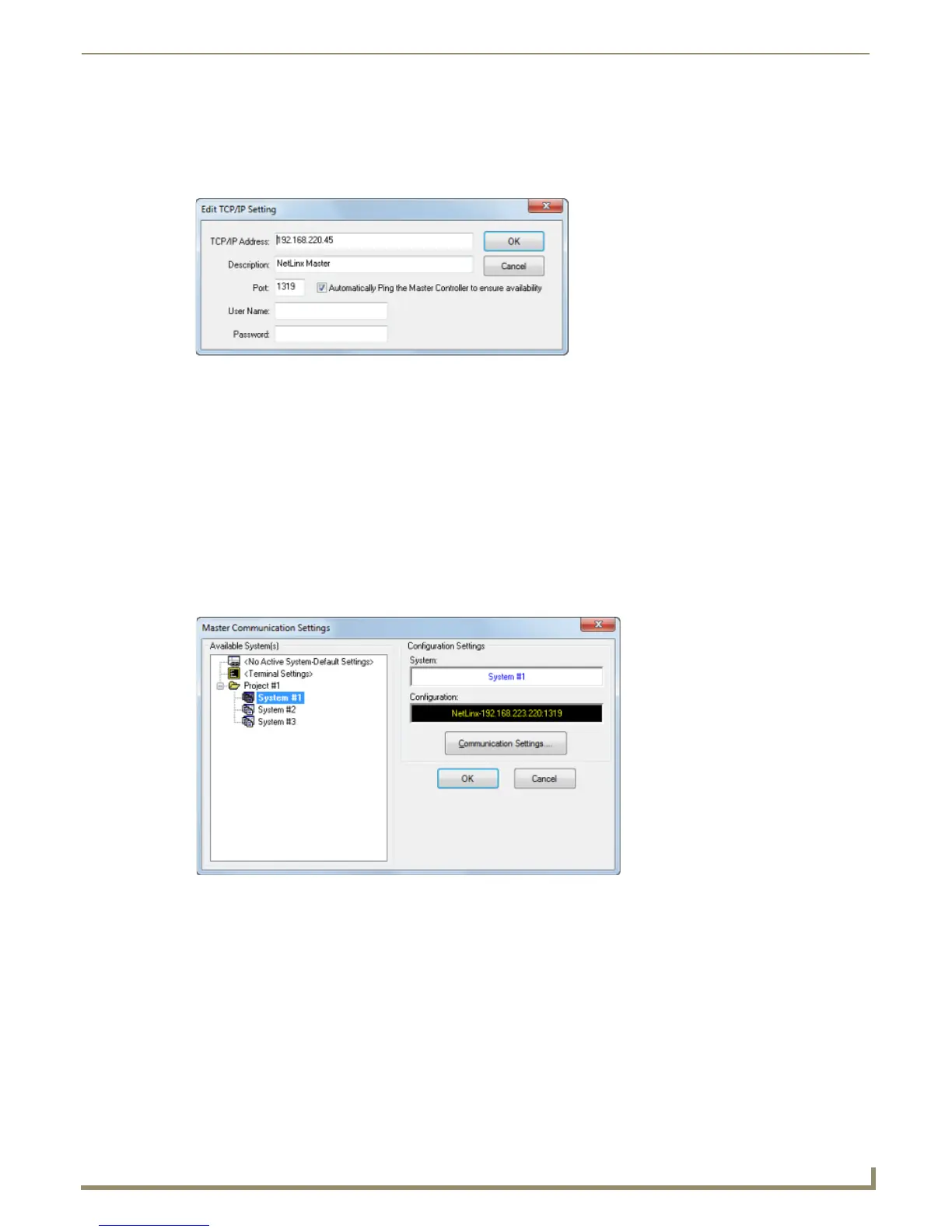

FIG. 200 Edit TCP/IP Setting dialog
FIG. 201 Master Communication Settings dialog
