7. Click the Map button to map the selected file(s) to the selected device.

Once a file has been mapped to a device, the mapping assignment is indicated in the File View window of the Device

Mapping dialog (FIG. 130).

Note that the mapping assignment is also indicated in the Workspace tab of the Workspace Bar (FIG. 131).

The file mapping information is saved with the Workspace file, and this association is maintained until the mapping

information is removed (via the Remove option in the Device Mapping dialog, or the Delete command in the System

File Device Map context menu.

Removing Device Mapping Information

Select a device-mapping icon in the File View window of the Device Mapping dialog.

2. Click the Remove button.

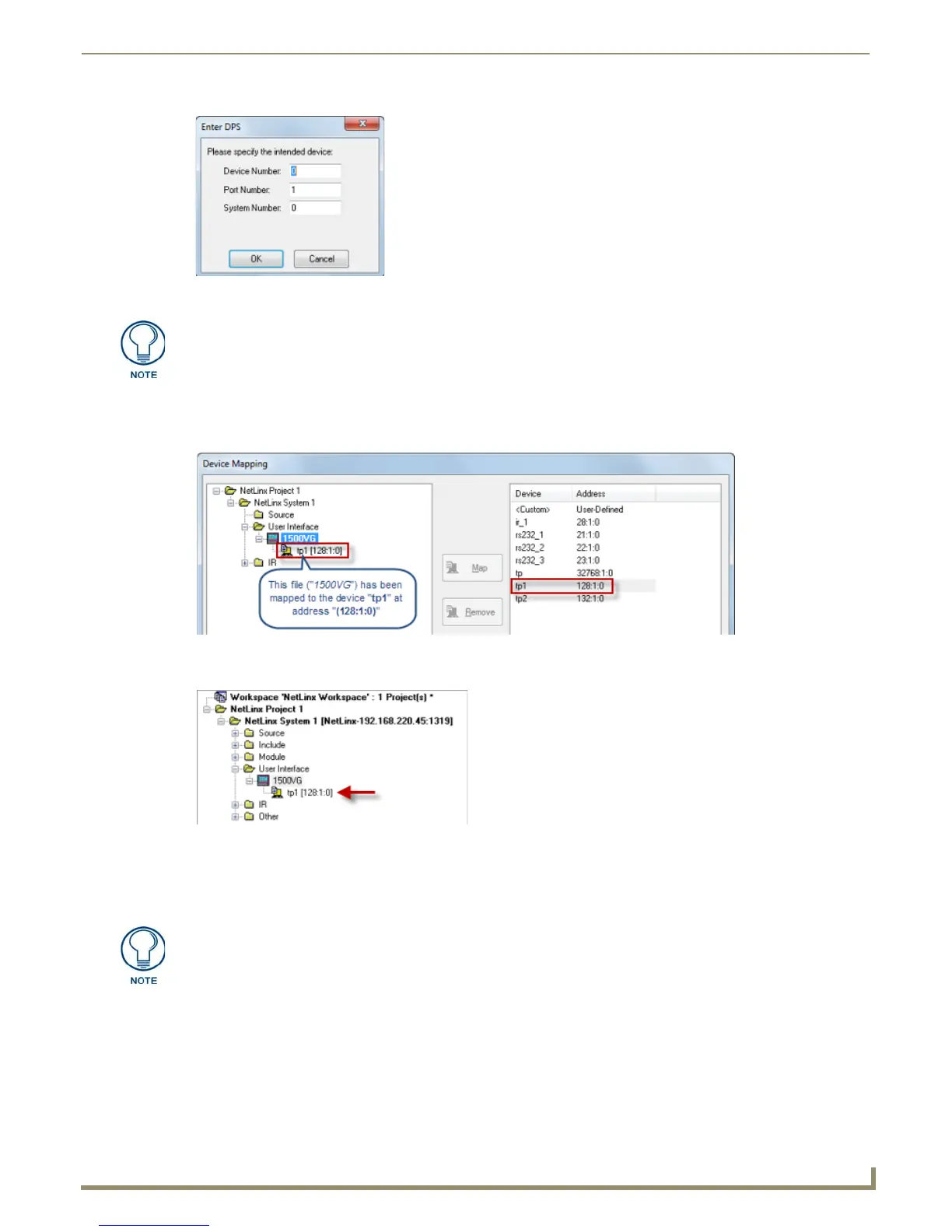

FIG. 129 Enter DPS dialog

The System's Master Source file will always be mapped automatically to 0:1:0 for

NetLinx Masters, and 0 for Axcess Masters.

FIG. 130 Device Mapping dialog indicating a mapping assignment for the UI file "1500VG"

FIG. 131 Device Mapping dialog indicating a mapping assignment for the UI file "1500VG"

Workspace mappings are only updated when the source code file is saved.
