Programming

NetLinx Studio - Instruction Manual

5. Use this dialog to specify how many buttons should be handled by this Button Event:

By default, I want to handle a single button is selected. With this option selected, enter the button number to

associate with this event in the Button: field (FIG. 149).

With I want to handle a range of buttons selected, indicate the range of buttons to include (First and Last)

to associate with this event in the Button: field (FIG. 150).

Select I want to handle all buttons to apply this event to all buttons. Note that this option is unavailable if the

Create Feedback Statements option is selected in the first dialog.

6. Click Next to proceed to the last dialog in the Code Wizard (FIG. 151).

7. Enter the name of the device for which this Button Event will be created in the Device field (default = MyDevice),

and enter a descriptive comment for the generated Button Event code in the Comment field if desired (default =

Code Wizard Code).

8. Click Finish to close the Code Wizard. The generated code is added to the code file in the active Editor window.

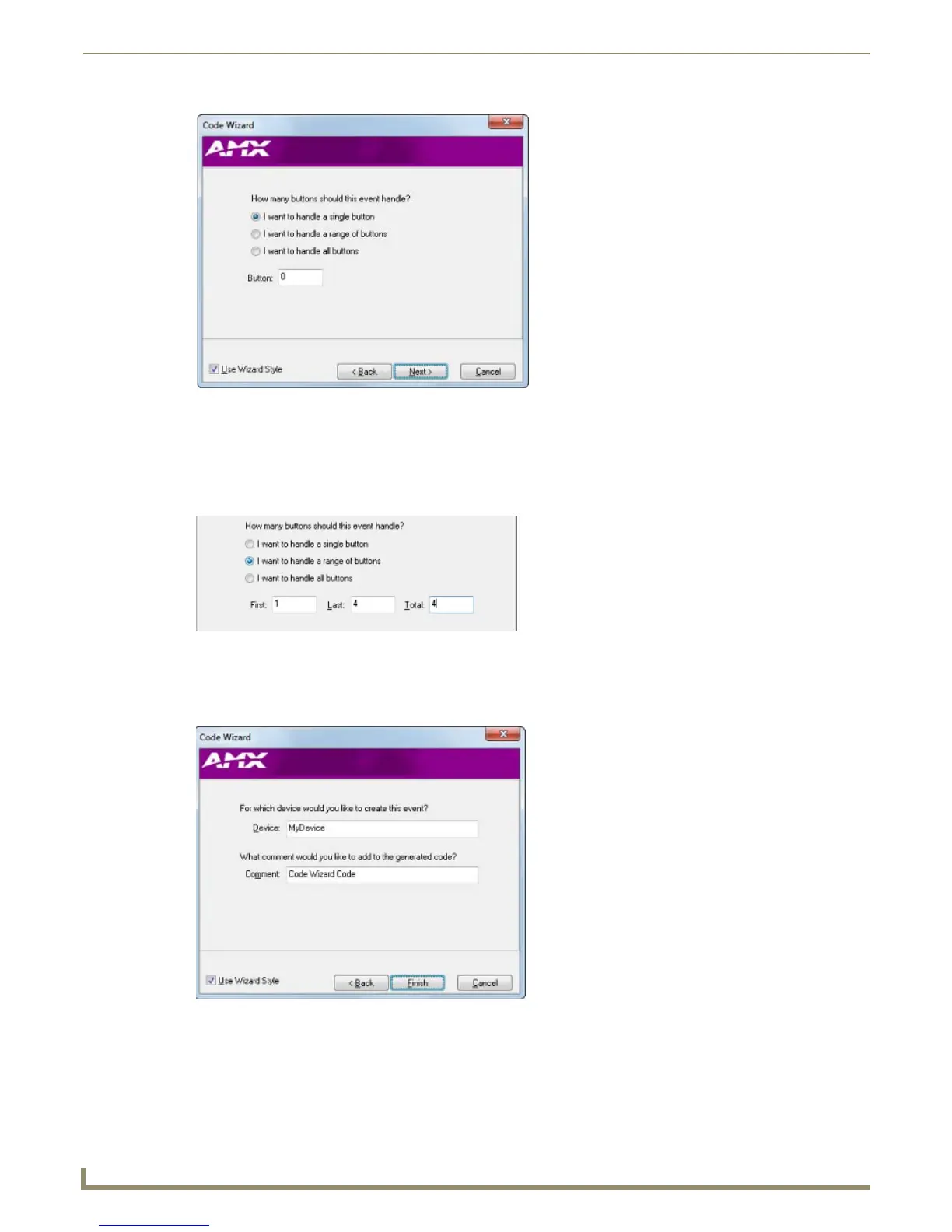

FIG. 149 Button Event Code Wizard dialog 2

FIG. 150 Button Event Code Wizard dialog 2 - Range of Buttons

FIG. 151 Button Event Code Wizard dialog 3
