AMX NetLinx Studio User Manual

Working with System Files
42
NetLinx Studio - Instruction Manual
If you select Yes, click Next to proceed to the next File Template dialog (see Step 4).
If you select No, click Next to proceed to the New File Location dialog (see Step 5).
4. In this dialog, select a template to use to create the file (NetLinx Standard Template, Axcess Standard Template or
User-Defined Template), and click Next to proceed (FIG. 69).
If you select to use the NetLinx or Axcess templates, the new Source Code file will include all of the sections
and headings (i.e. DEFINE_DEVICE, DEFINE_CONSTANT, DEFINE_TYPE, etc.) that differentiate the
various sections contained in a typical Source Code file for the indicated system type.
If you select User Defined Template, then enter the file path for the AXS, AXI, AXB (or other) file to be used
as the file template. Use the Browse (...) button to locate and select the file via the Open dialog.
5. In this File Template dialog, enter a file name for the new file.
If this file is to be the Master Source Code file for the System, then check the Make this the Master Source Code
File check box.and click Next to proceed (FIG. 70).

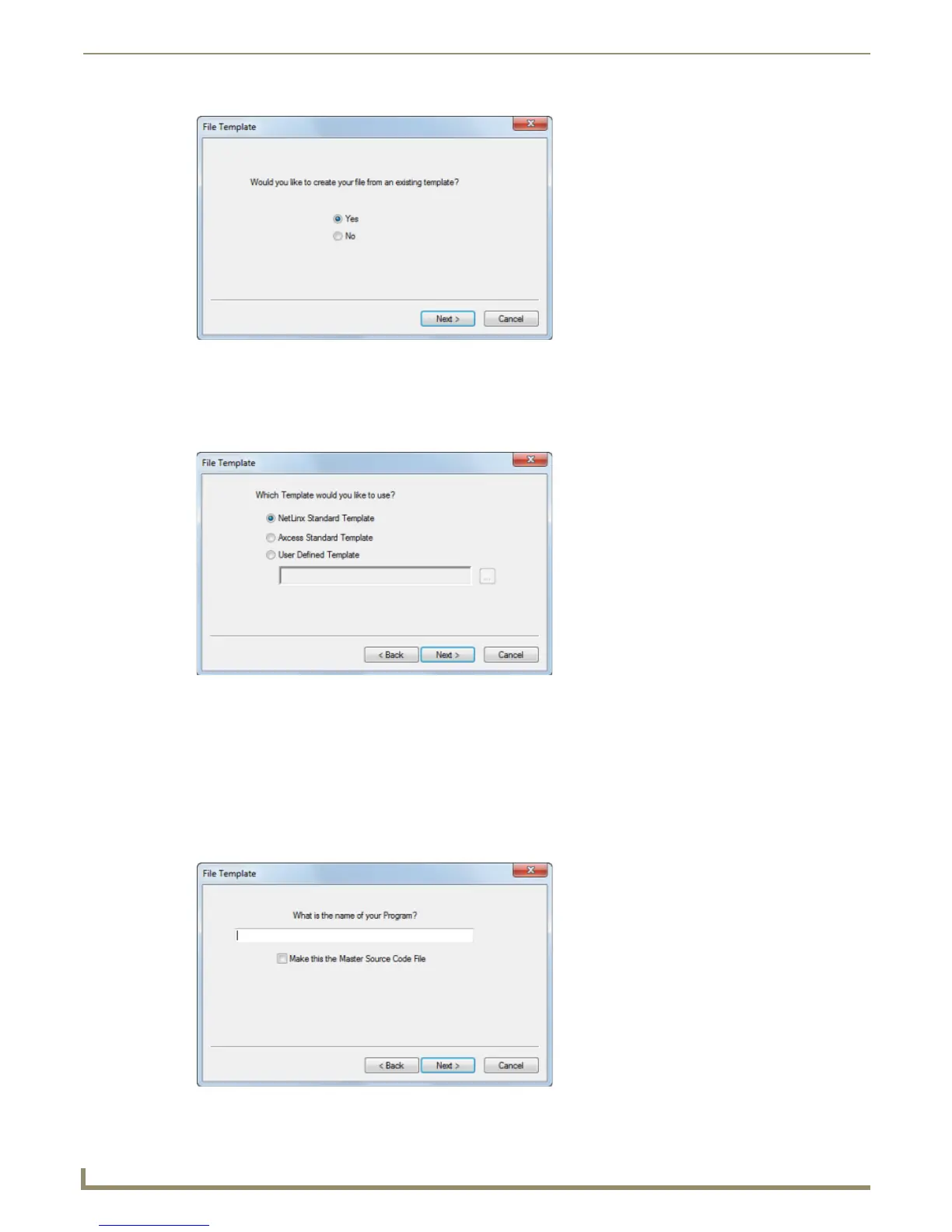

FIG. 68 File Template dialog
FIG. 69 File Template dialog
FIG. 70 File Template dialog
