2.4 Pressure Reservoir, Emptying
– Perform pressure reservoir system vent using -Vehicle Diag‐
nostic Tester- , refer to
⇒ “3.9 System, Venting or Filling”, page 221 .

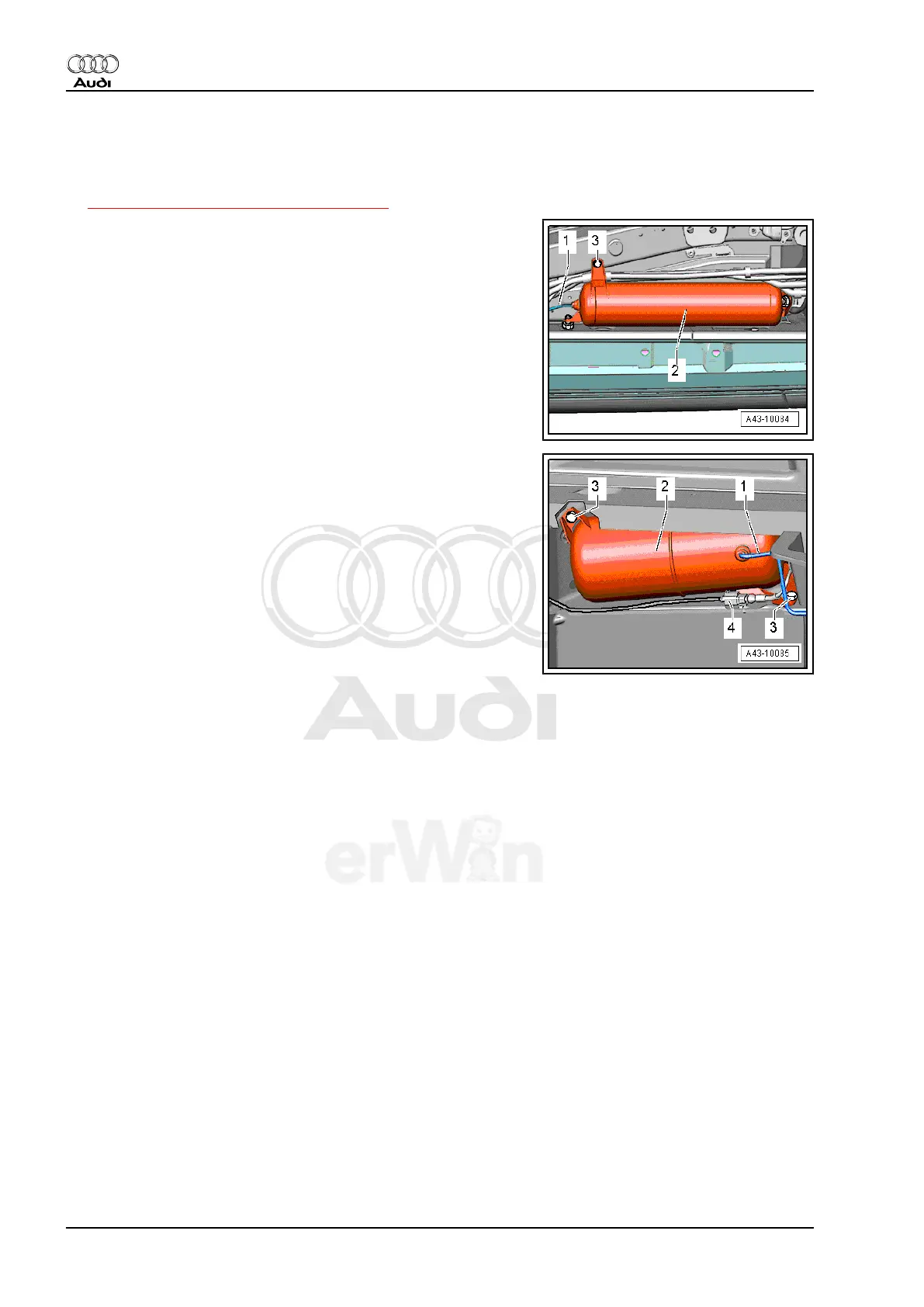

Front Pressure Reservoir, Emptying
– Slowly loosen air line -1- on pressure reservoir -2- and allow
air pressure to escape. When air pressure has escaped, re‐
move air line -1-.
Pressure Reservoir in Luggage Compartment, Emptying
– Slowly loosen air line -1- on pressure reservoir -2- and allow
air pressure to escape. When air pressure has escaped, re‐
move air line -1-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
6 Rep. Gr.00 - General, Technical Data
