Suspension Versions

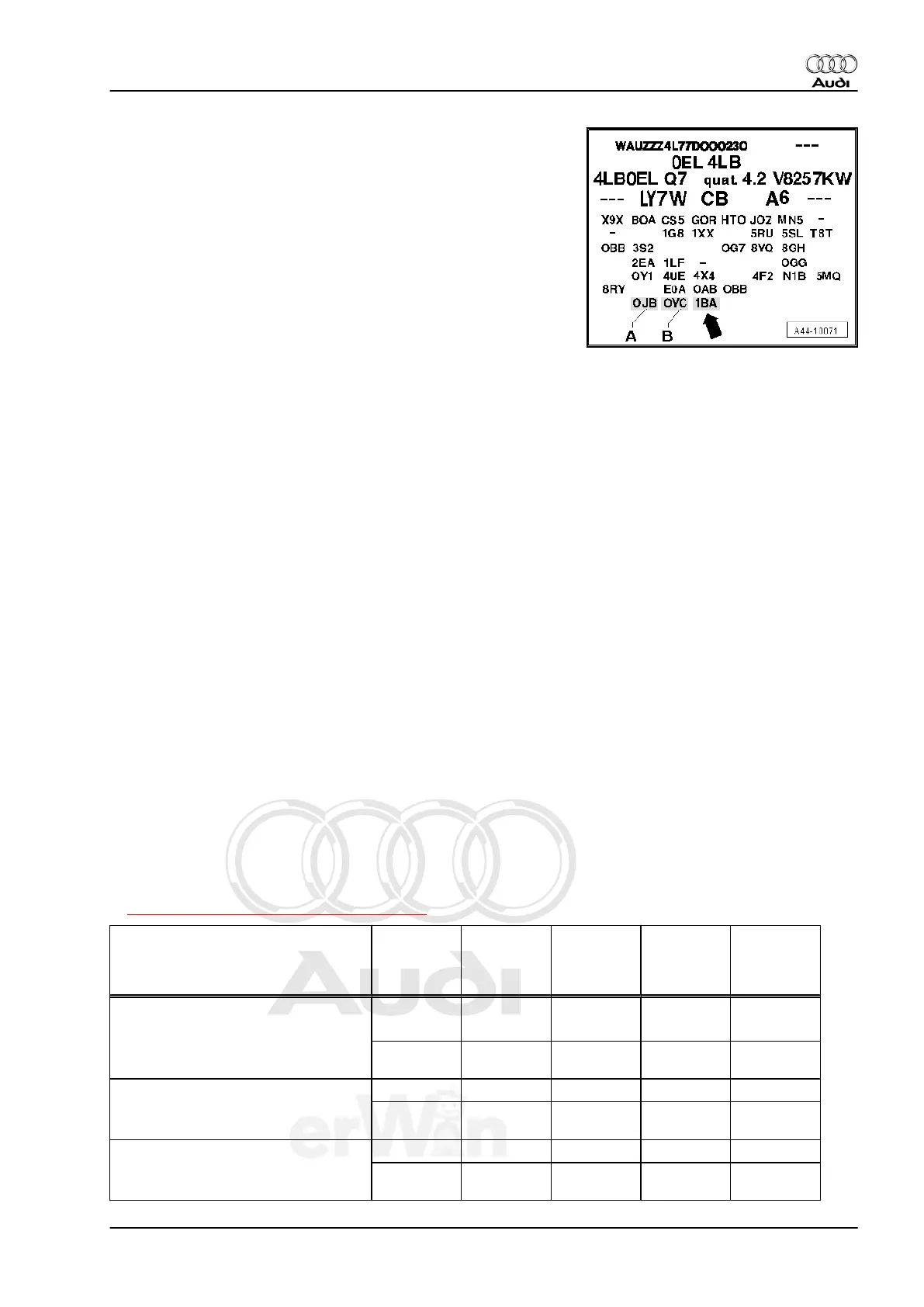

The suspension version PR No. is in illustration -arrow-
In this example the vehicle has standard suspension 1BA instal‐
led.
1BA = Standard suspension
1BW = Comfort suspension USA
1BM = Standard suspension Japan
1BK = Air suspension
1BV = Sport suspension S-Line
2MB = air spring suspension, S line
Tire pressure monitoring system/tire pressure monitoring system
display
The tire pressure monitoring system PR number can be found in
ELSA in Vehicle Individual under “Vehicle Data”.
7K0 = without tire pressure monitoring system
7K3 = tire pressure monitoring system, frequency 433 MHz High
7K4 = tire pressure monitoring system, frequency 315 MHz High
7K5 = tire pressure monitoring system, frequency 315 MHz with
reduced transmitting power
7K7 = tire pressure monitoring system, frequency 433 MHz Basis
7K8 = tire pressure monitoring system, frequency 315 MHz Basis
7K6 = tire pressure monitoring system display
Driver assist system
The driver assist system PR number can be found in ELSA in
Vehicle Individual under “Vehicle Data”.
7Y2 = lane assist
7Y3 = lane change assistance and lane assist
8T4 = adaptive cruise control (ACC)
5.4 Wheel Alignment Specified Values
Specified values valid for all engine versions.
The chassis PR number is listed on the vehicle data label, refer
to ⇒ “5.3 PR Number Explanations”, page 248 .
Front Axle Standard
Suspension
(1BA)
Air Suspen‐
sion (1BK)
Sport Sus‐
pension S-
Line (1BV)
Comfort
suspension
USA (1BW)
Air spring
suspen‐
sion, S line
(2MB)
Caster angle
8° 10′
+10′
-30′
8° 35′
+10′
-30′
8° 10′
+10′
-30′
8° 10′
+10′
-30′
8° 35′
+10′
-30′
Maximum permissible difference be‐
tween both sides
30′ 30′ 20′ 30′ 20′
Camber - 10′ ± 15′ - 10′ ± 15′ - 10′ ± 15′ - 10′ ± 15′ - 10′ ± 15′
Maximum permissible difference be‐
tween both sides
10′ 10′ 10′ 10′ 10′
Toe for each wheel + 7′ ± 5′ + 7′ ± 5′ + 7′ ± 5′ + 7′ ± 5′ + 7′ ± 5′
Maximum permissible difference be‐
tween both sides
5′ 5′ 5′ 5′ 5′
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
5. Wheel Alignment 249
