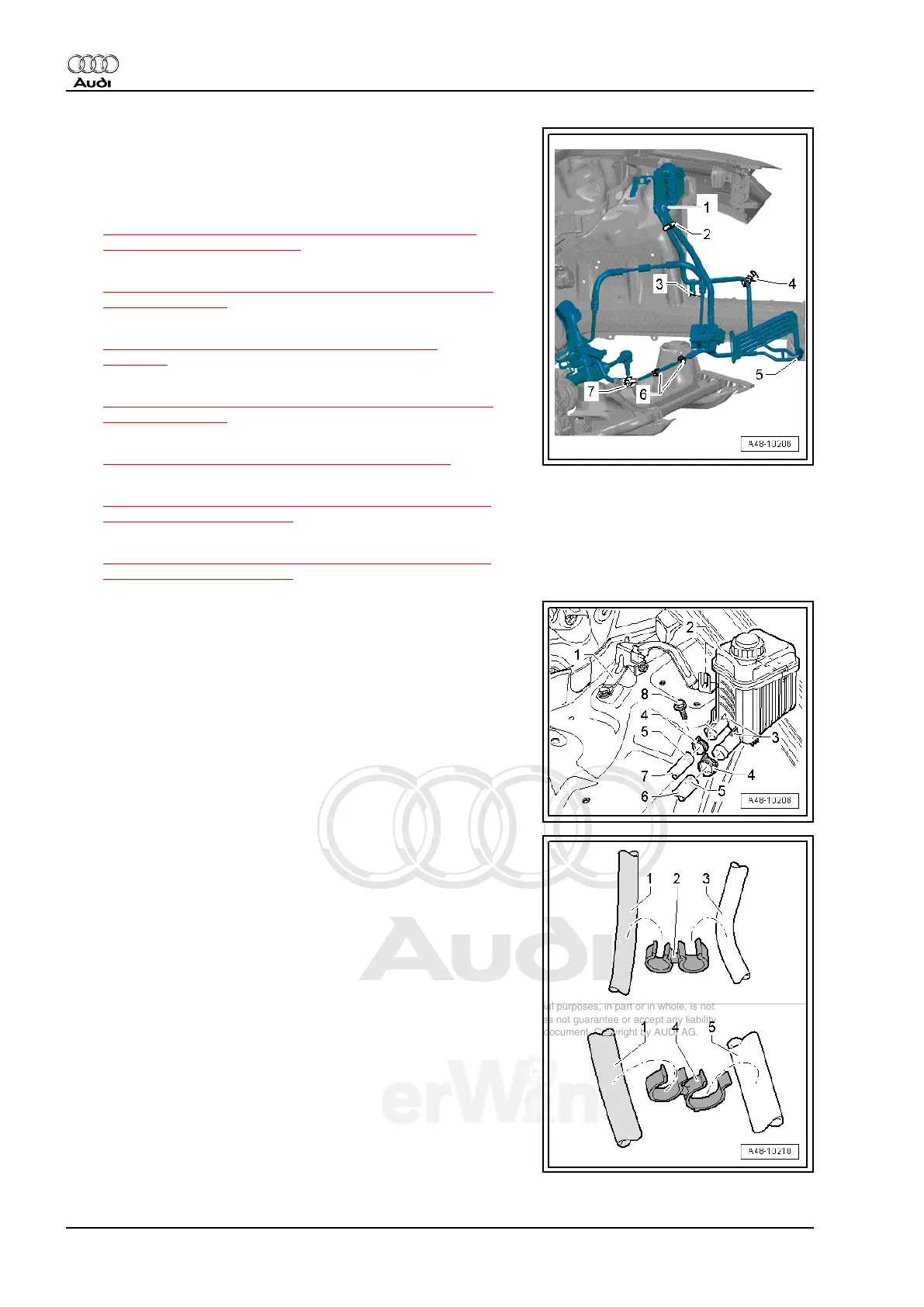

6.2 Lines and Hoses Overview
Line and Hose Securing Elements, Assembly Overview
1 - Location of hoses on reservoir and reservoir bracket to
body, refer to
⇒ Fig. ““Location of Hoses on Reservoir and Reservoir
Bracket to Body”“ , page 338 .
2 - Return hose and intake hose clip, refer to
⇒ Fig. ““Return Hose Clips to Refrigerant Line and Intake
Hose”“ , page 338 .
3 - Return hose support to body bracket, refer to
⇒ Fig. ““Return Hose Support to Body Bracket”“ ,
page 339 .
4 - Return line clip to refrigerant line, refer to
⇒ Fig. ““Return Hose Clips to Refrigerant Line and Intake
Hose”“ , page 338 .
5 - Hoses to hydraulic oil cooler, refer to
⇒ Fig. ““Hoses to Hydraulic Oil Cooler”“ , page 339 .
6 - Return line bracket to subframe, refer to
⇒ Fig. ““Return Line Bracket to Subframe, Return Line to
Coolant Hoses”“ , page 339 .
7 - Return line to coolant hoses, refer to
⇒ Fig. ““Return Line Bracket to Subframe, Return Line to
Coolant Hoses”“ , page 339 .
Location of Hoses on Reservoir and Reservoir Bracket to Body
– Position reservoir -2- on bracket -1- when installing.
– Tighten the reservoir -2- using bolts -8- to 8 Nm.
– Markings -5- on intake hose -6- and return hose -7- must align
with bars -3-. Secure intake hose -6- and return hose -7- with
spring clips -4-.
Return Hose Clips to Refrigerant Line and Intake Hose
– Secure return hose -1- with clip -2- on intake hose -3-.
– Secure return hose -1- with clip -4- on refrigerant line -5-.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
338 Rep. Gr.48 - Steering
