3.2 Tire Pressure Monitoring Control Mod‐
ule 2 - J793- , Removing and Installing
Removing

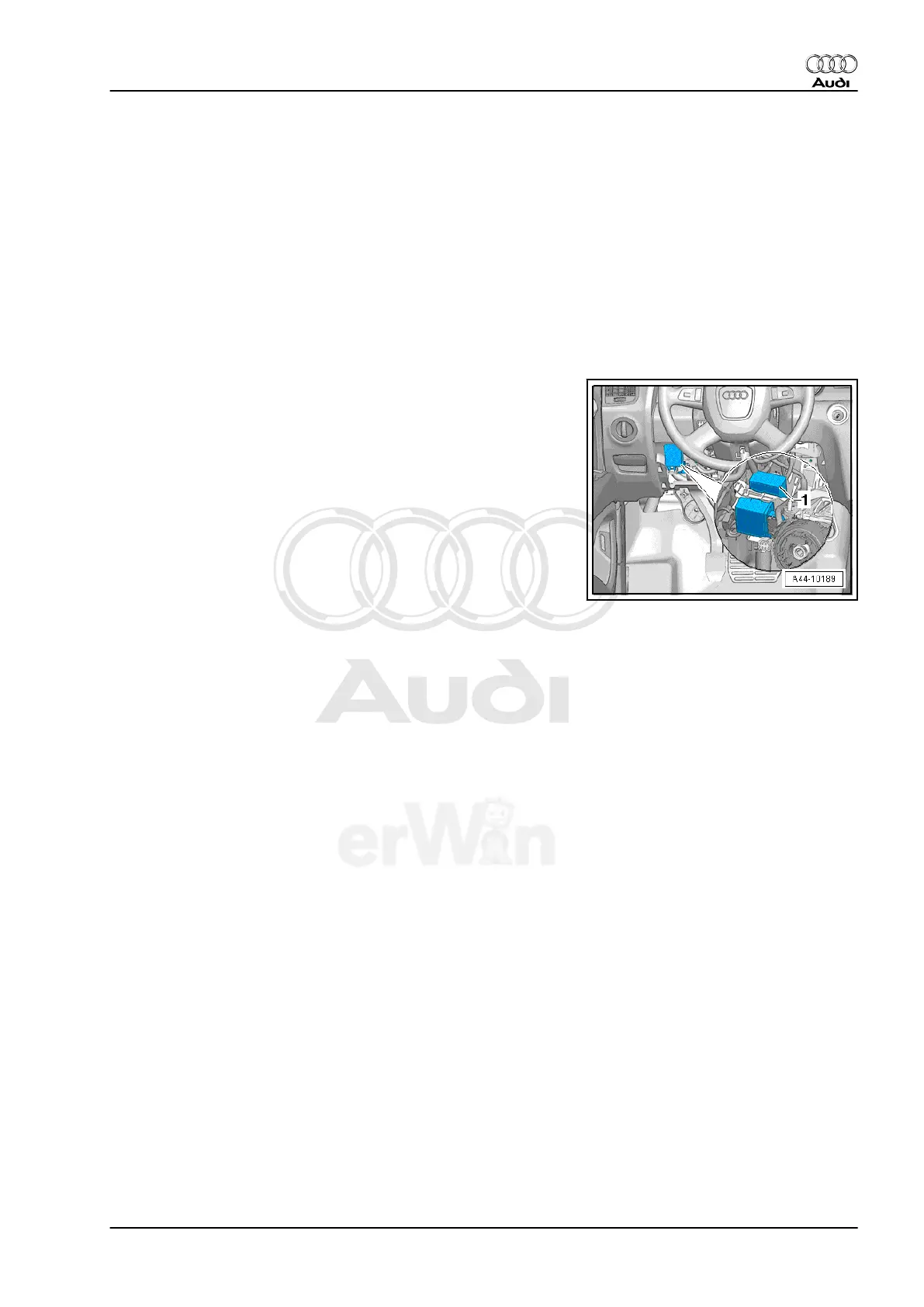

Installed location on a LHD vehicle: on the left side next to the
steering column.
Installed location on a RHD vehicle: on the right side next to the
steering column.
If control module is replaced, read out coding before removal us‐
ing Guided Fault Finding in “Replace Control Module” function.
– Remove the upper instrument panel cover on the driver side
(knee bar), refer to ⇒ Rep. Gr. 68 .
– Remove the Tire Pressure Monitoring Control Module 2 -
J793- -1-.
– Disconnect connector and remove control module.
Installing
Installation is the reverse of removal, with special attention to the
following:
– If Tire Pressure Monitoring Control Module 2 - J793- is re‐
placed, system must be coded.
– Connect -VAS- 5051 and select the control module in “Guided
Functions” -Vehicle Diagnostic Tester- .
