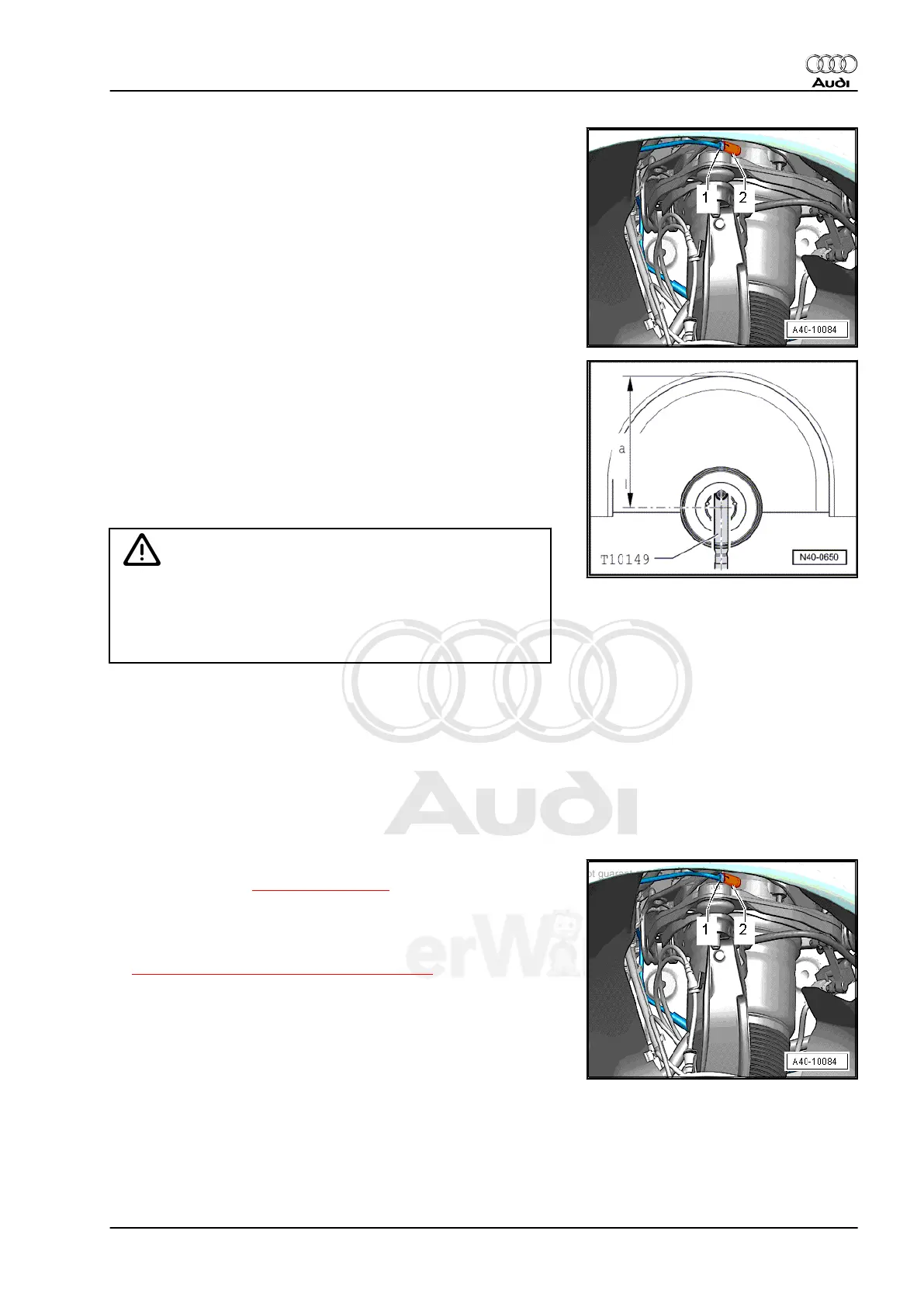

– Remove connecting piece -1- at residual pressure valve -2-.
Air escapes then.
– Seal both connections. Make sure that no dust particles enter
connections.
– Turn the wheel hub until one of the holes for the wheel bolts
is on top.
– Install Engine/Gearbox Jack Adapter - Wheel Hub Support -
T10149- with wheel bolt.
– Insert Engine/Gearbox Jack Adapter - Wheel Hub Support -
T10149- into Engine/Gearbox Jack - VAG1383A- and press
wheel bearing housing far enough upward until control posi‐
tion, dimension -a-, is obtained.
Control position
♦ Dimension -a- for vehicles with air suspension 449 mm
WARNING
♦ Do not lift or lower vehicle with engine/transmission jack
below vehicle.
♦ Do not leave engine/transmission jack under the vehicle
longer than necessary.
Working after Adjusting Control Position
– Tighten the bolts and nuts.
– Lower the wheel bearing housing.
– Remove Engine/Gearbox Jack - VAG1383A- from under the
vehicle.
– Remove Engine/Gearbox Jack Adapter - Wheel Hub Support
- T10149- .
– Connect connecting piece -1- at residual pressure valve -2-,
refer to -Item 29- ⇒ Item 29 (page 59) .
– Mount wheel and tighten, refer to ⇒ Wheels and tires; Rep.
Gr. 44 .
– Air suspension system, filling, refer to
⇒ “3.9 System, Venting or Filling”, page 221 .
