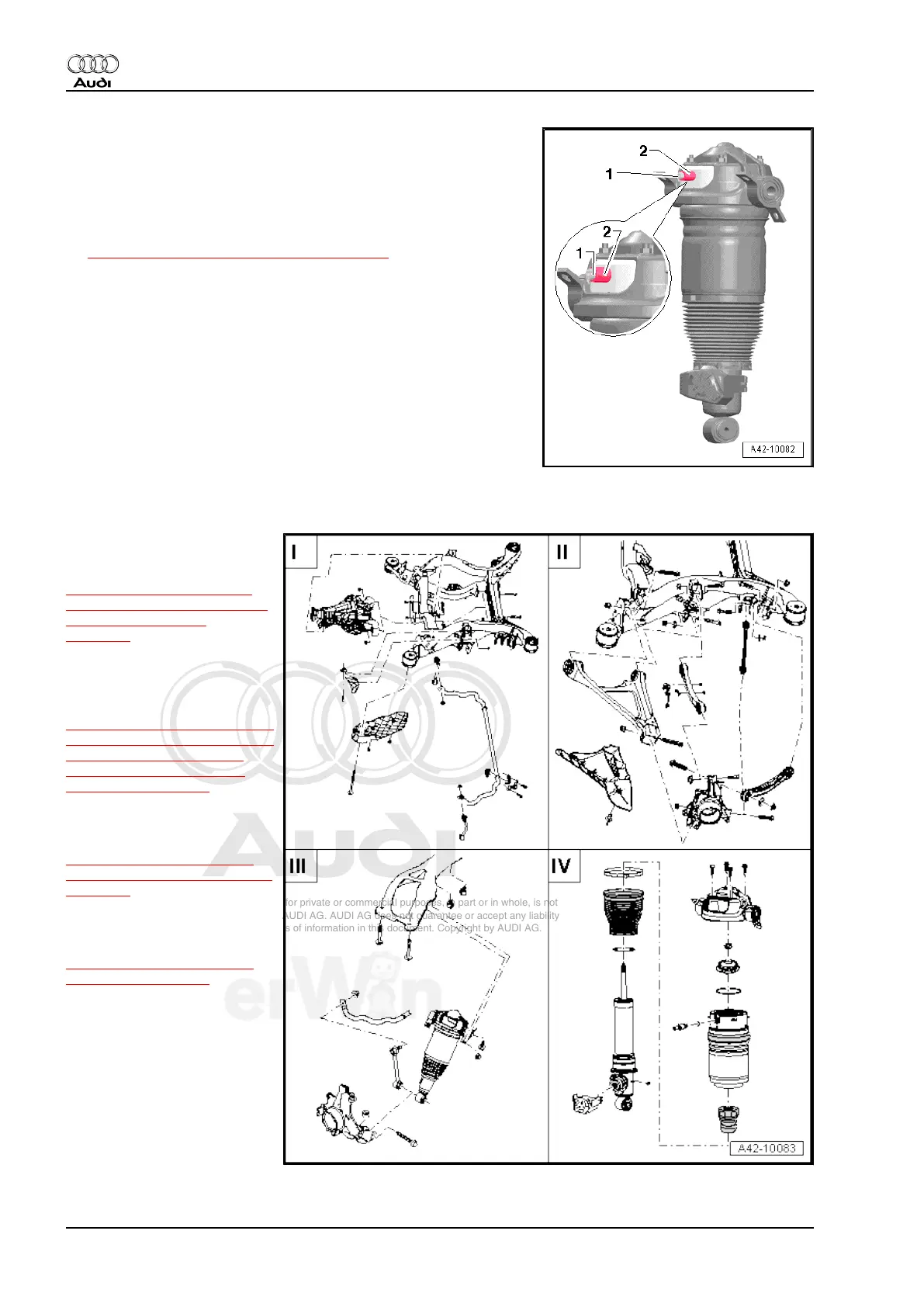

– Tighten the connecting piece -1- at the residual pressure re‐
taining valve -2- to 10 Nm using a Air Line Insert Tool -
T10212- .
– Install the wheel and tighten the wheel bolts, refer to ⇒ Rep.
Gr. 44 .
– Air suspension system, filling, refer to
⇒ “3.9 System, Venting or Filling”, page 221 .
1.6 Rear Axle Overview
I - Subframe, stabilizer bar,
stone impact protection, refer
to
⇒ “2.1 Subframe, Stabilizer
Bar, Coupling Rod and Stone
Deflector Overview”,
page 124 .
II - Lower control arm, Level
Control System Sensor , front
upper control arm, rear upper
control arm, tie rod, refer to
⇒ “3.1 Lower Control Arm, Lev‐
el Control System Sensor, Up‐
per Front and Upper Rear
Control Arms and Tie Rod
Overview”, page 138 .
III - Suspension strut (air sus‐
pension), crossmember, refer
to
⇒ “4.1 Air Suspension Strut
and Crossmember Overview”,
page 145 .
IV - Suspension strut (air sus‐
pension), assembly overview,
refer to
⇒ “4.6 Air Suspension Strut
Overview”, page 152 .
