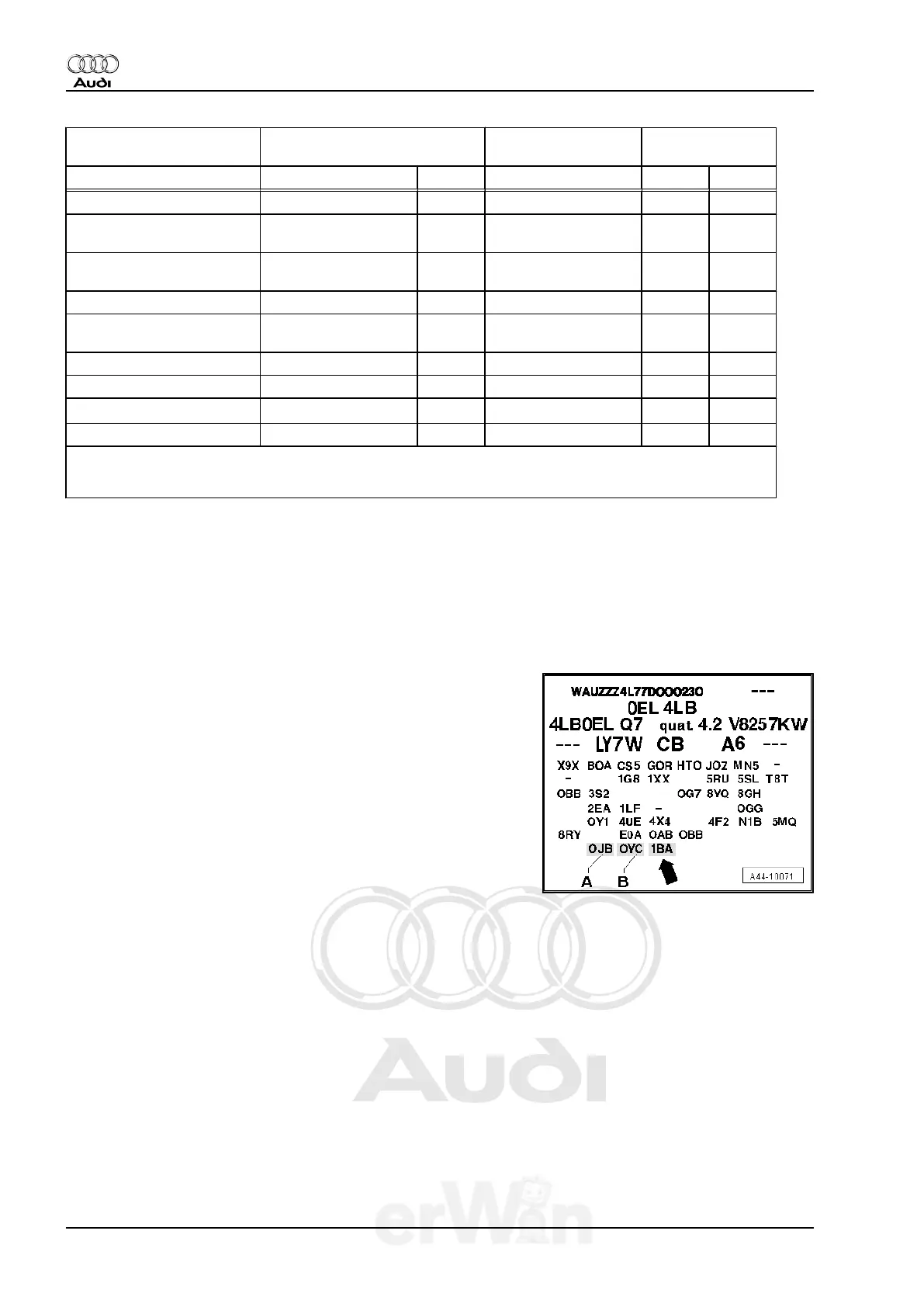

Front Axle Components Wheel Alignment Check Re‐
quired
Rear Axle Compo‐
nents
Wheel Alignment
Check Required
Yes No
Yes No
Lower Control Arm X
Lower Control Arm X
Suspension strut (coil
spring)
X Suspension strut (coil
spring)
X
Suspension strut (air sus‐
pension)
X Suspension strut (air
suspension)
X
Bracket X
Wheel Bearing Housing
X Wheel Bearing Hous‐
ing
X
Tie Rod X
Tie Rod X
Steering Gear X
Subframe
X
1)
Subframe
X
1)
Stabilizer Bar
X Stabilizer Bar X
1)
if subframe was secured with Assembly Carrier Locating Pins - T10300- , axle alignment is not
necessary.
5.3 PR Number Explanations
The vehicle data plate documents which front/rear axle, driver
assist system or tire pressure monitoring system is installed using
the corresponding PR numbers.
There is a vehicle data label in the spare wheel well and also one
in the customer Maintenance booklet.
Front/Rear Axle
The front/rear axle PR No. is in illustration -A- and -B-
Front axle PR no. is item -A-.
Rear axle PR no. is item -B-.
The correct shock absorber combination is found in the electronic
parts catalog using the PR number.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
248 Rep. Gr.44 - Wheels, Tires, Wheel Alignment
