Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

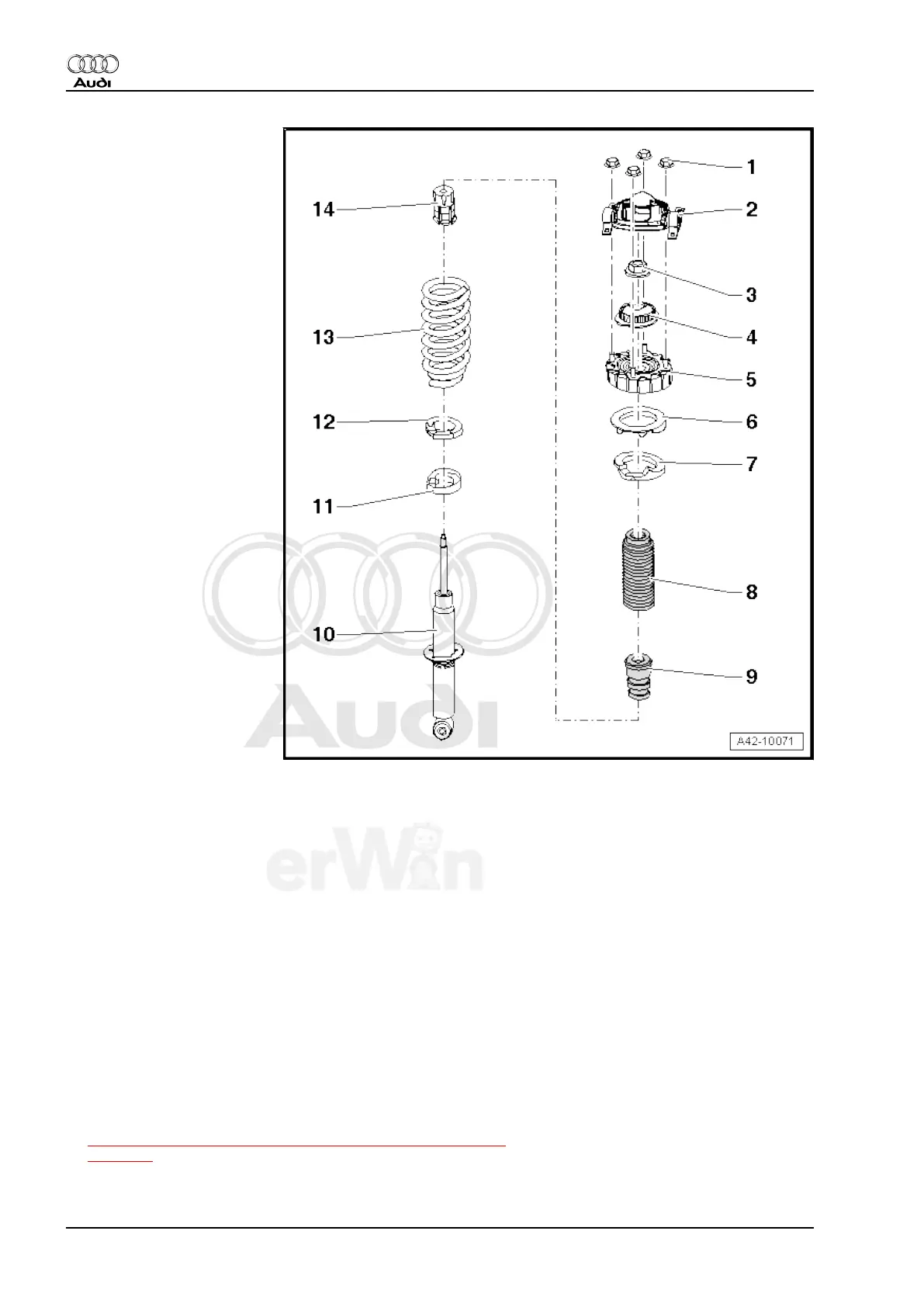

1 - Bolt
30 Nm
Quantity: 4
2 - Bracket
3 - Self-Locking Nut
60 Nm
Always replace if re‐
moved.
4 - Bearing
5 - Upper Spring Plate
6 - Upper Washer
7 - Upper Support
8 - Protective Sleeve
9 - Stop Buffer
10 - Shock Absorber
Allocation, refer to the
Parts Catalog.
11 - Lower Washer
In order to achieve a uni‐
form height, coil springs
must be installed with
their spacers, refer to
the Parts Catalog.
12 - Lower Support
13 - Coil Spring
Surface of spring coil
may not be damaged.
Note color code.
Allocation, refer to the
Parts Catalog.
14 - Cap
5.4 Rear Suspension Strut, Coil Spring,
Servicing
Special tools and workshop equipment required
Press Piece - Multiple Use - VW455-
Bearing Installer - Carrier Bearing - 3350-
Torque Wrench 1332 40-200Nm - VAG1332-
Spring Tensioner - VAS6046-
Spring Support - VAS6046/3-
Shock Absorber Set - T10001-
Disassembling
Suspension strut (coil spring), removing, refer to
“5.2 Coil Spring Suspension Strut, Removing and Installing”,
page 162 .
Remove nuts and remove mounting bracket.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
164 Rep. Gr.42 - Rear Suspension
