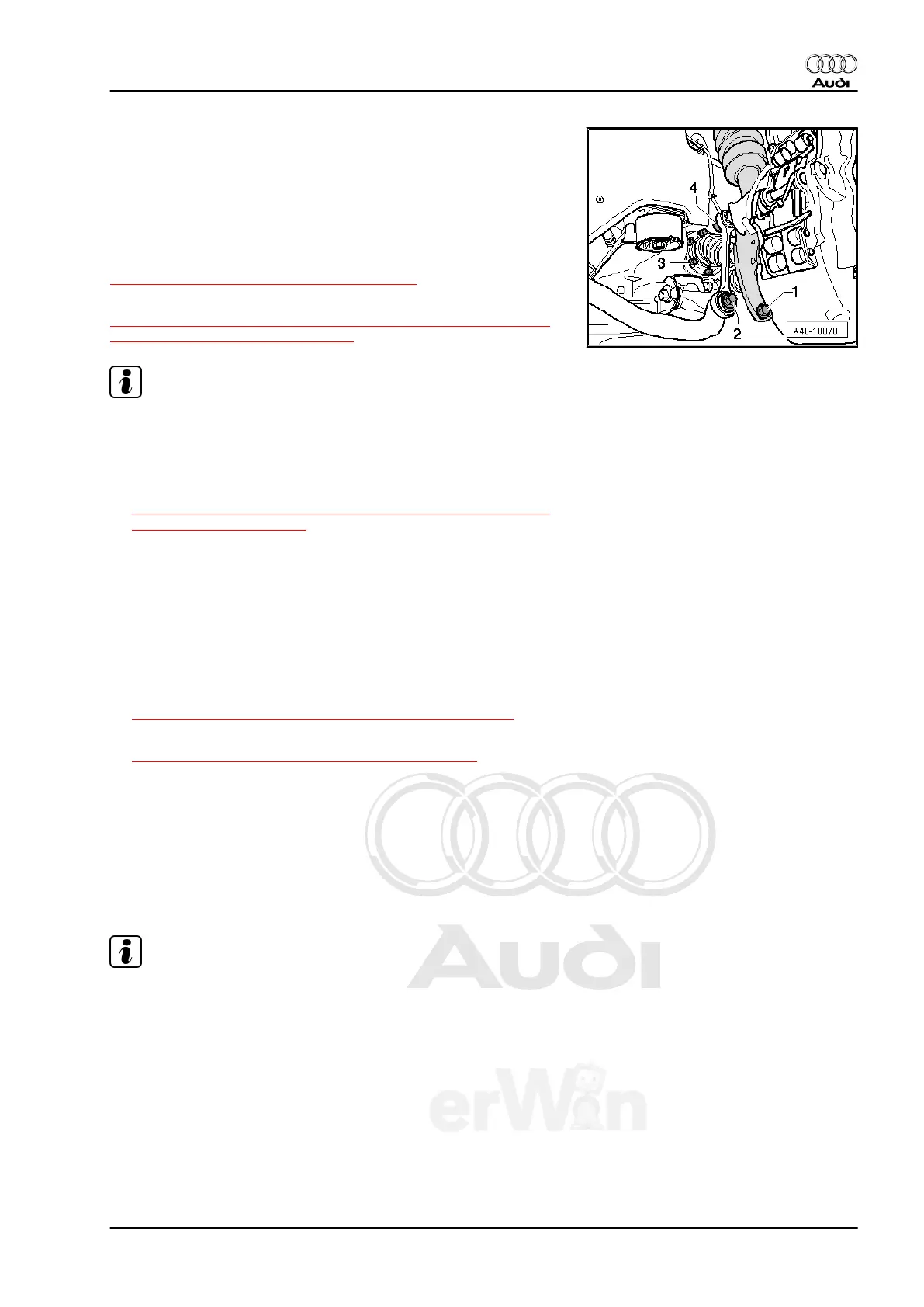

– Remove screw -1- from lower control arm and remove sus‐
pension strut.
Installing
Installation is the reverse of removal, with special attention to the
following:
If a new suspension strut (air suspension) is installed, this must
first be filled, refer to
⇒ “4.3 Air Suspension Strut, Filling”, page 65 .
Tightening specifications, refer to
⇒ “4.1 Air Suspension Strut, Upper Control Arm and Level Control
System Sensor Overview”, page 57 .
Note
♦ Bonded rubber bushings can only be turned to a limited extent.
Only tighten suspension screws when vehicle is in curb weight
or control position.
♦ Wheel bearing, lifting to control position on vehicles with air
suspension, refer to
⇒ “1.5 Wheel Bearing in Control Position, Lifting Vehicles with
Air Suspension”, page 14 .
– Install Engine Control Module 2 - J624- , if it was removed
earlier, refer to ⇒ Rep. Gr. 23 .
– Install the cowl panel trim, refer to ⇒ Rep. Gr. 50 .
– Wheel housing liner, installing, refer to ⇒ Rep. Gr. 66 .
– Install the wheel and tighten the wheel bolts, refer to ⇒ Rep.
Gr. 44 .
– Place vehicle on wheels, refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Adapt the control position, refer to
⇒ “3.10 Control Position, Programming”, page 221 .
4.3 Air Suspension Strut, Filling
Special tools and workshop equipment required
♦ Air Spring Strut Adapter - T10157/1-
♦ Air Suspension Strut Charger - VAS6231-
♦ Steel gas bottle filled with argon or corgon
Note
Suspension struts (air suspension) are delivered as a replace‐
ment part with a minimum pressure. By sitting in storage for
extended periods this pressure can diminish (just like a tire). Be‐
fore the suspension strut (air suspension) is removed from its
packaging, this minimum pressure must be controlled by »refill‐
ing«. If the suspension strut (air suspension) is removed from its
packaging without this control/refilling, folds can occur in the un‐
der-filled air spring boot. These indentations lead to preliminary
damage and may lead to premature failure.
– Remove the cover from the packaging.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
