Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

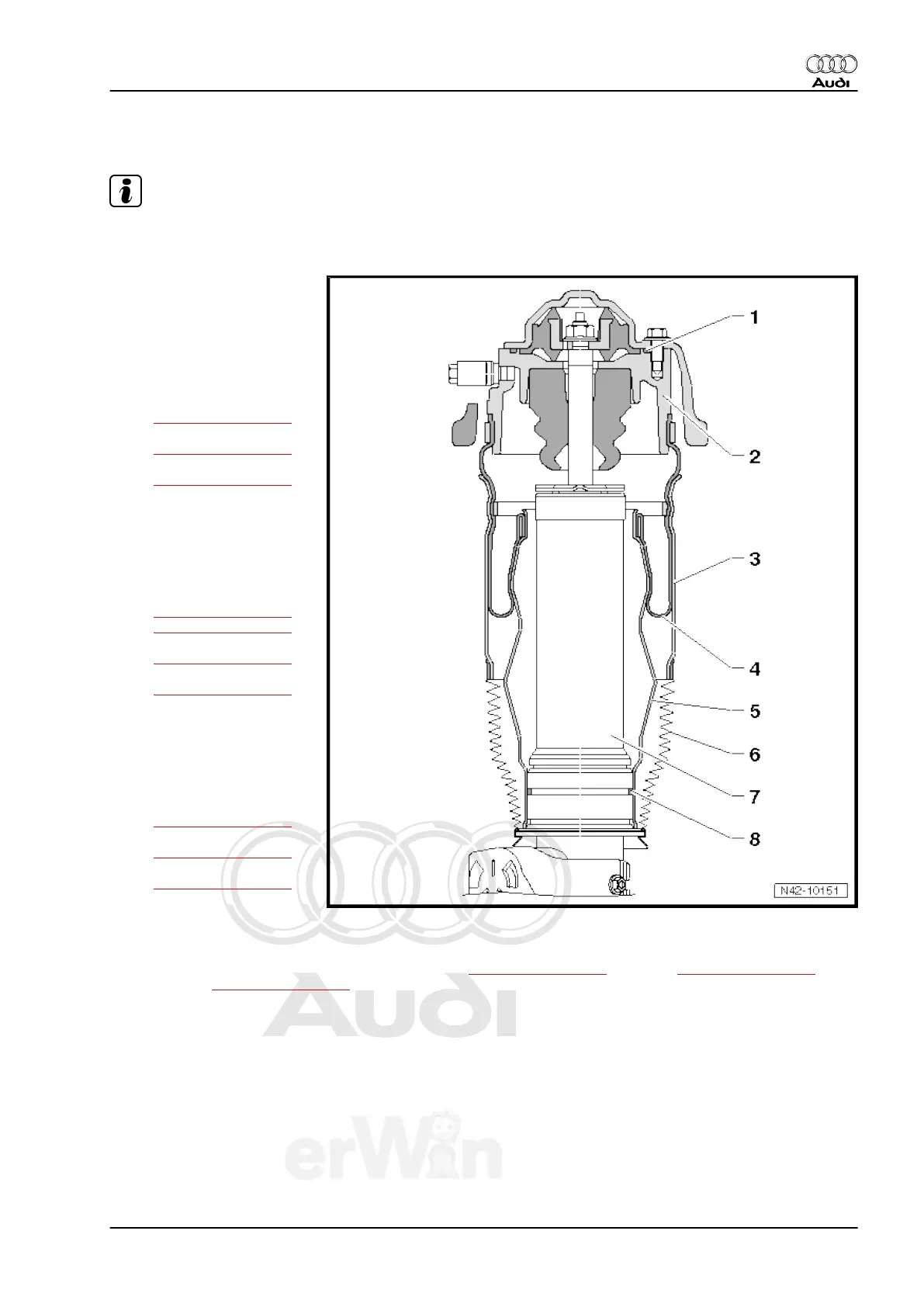

4.5 Air Suspension Strut Components
Note
Items 2, 3, 4 and 5 are air spring components. They are installed together and cannot be disassembled.
1 - Seal
Always replace if re‐
moved.
2 - Cover
Installed as part of air
spring with, refer to
-Item 3-
⇒ Item 3 (page 151) ,
-Item 4-
⇒ Item 4 (page 151) ,
and -Item 5-
⇒ Item 5 (page 151) .
Cannot be removed and
disassembled individu‐
ally.
3 - Outer Guide
Installed as part of air
spring, refer to -Item 3-
⇒ Item 3 (page 151)
⇒ Item 2 (page 151) ,
-Item 4-
⇒ Item 4 (page 151) ,
and -Item 5-
⇒ Item 5 (page 151) .
Cannot be removed and
disassembled individu‐
ally.
4 - Boot
Installed as part of air
spring, refer to -Item 2-
⇒ Item 2 (page 151) ,
-Item 3-
⇒ Item 3 (page 151) ,
and -Item 5-
⇒ Item 5 (page 151) .
Cannot be removed and
disassembled individually.
5 - Rolling Piston
Installed as part of air spring, refer to -Item 2- ⇒ Item 2 (page 151) , -Item 3- ⇒ Item 3 (page 151) , and
-Item 4- ⇒ Item 4 (page 151) .
Cannot be removed and disassembled individually.
6 - Boot
Always replace if removed.
7 - Shock Absorber
8 - Seal
Always replace if removed,
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
4. Air Suspension Strut and Crossmember 151
