– With vehicles with air suspension, place vehicle on hoist, refer
to ⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Remove wheel.
– Remove Rear Level Control System Sensor , refer to
⇒ “3.3 Left Rear Level Control System Sensor G76 and Right
Rear Level Control System Sensor G77 , Removing and In‐
stalling”, page 217 .
– If front upper control arm is to be replaced, remove bracket,
refer to -Item 23- ⇒ Item 23 (page 139) .

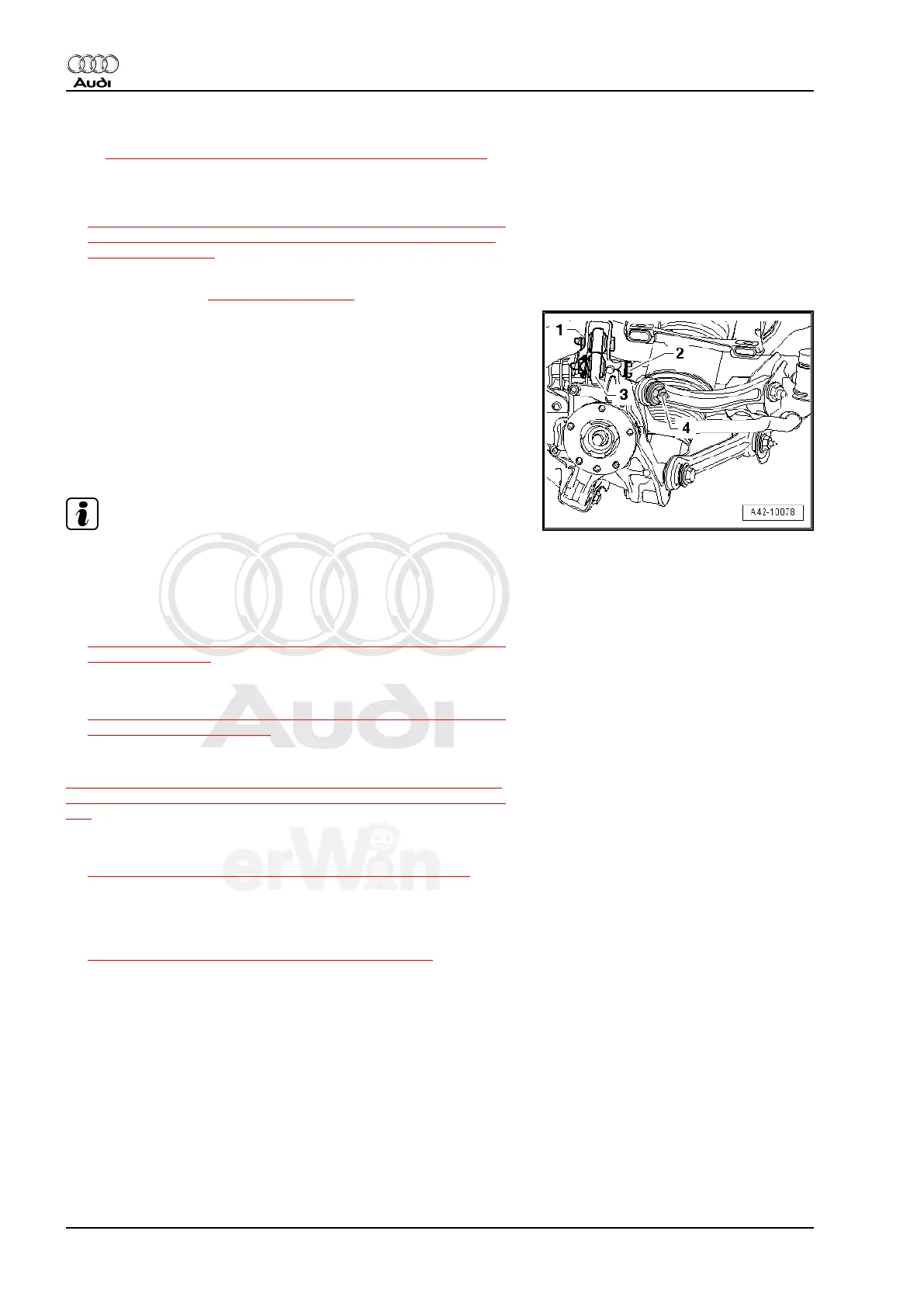

– Remove screw -4- and press rear upper control arm back
slightly.
– Remove screw -2-.
– Remove nut -1- and remove screw.
– Remove front upper control arm -3-.
Installing
Install in reverse order of removal. Note the following:
Note
♦ Bonded rubber bushings can only be turned to a limited extent.
Only tighten suspension screws when vehicle is in curb weight
or control position.
♦ Wheel bearing, lifting to curb weight position on vehicles with
coil springs, refer to
⇒ “1.4 Wheel Bearing in Curb Weight, Lifting Vehicles with Coil
Spring”, page 118 .
♦ For vehicles with air spring suspension, lift wheel suspension
in control position, refer to
⇒ “1.5 Wheel Bearing in Control Position, Lifting Vehicles with
Air Suspension”, page 120 .
Tightening specifications, refer to
⇒ “3.1 Lower Control Arm, Level Control System Sensor, Upper
Front and Upper Rear Control Arms and Tie Rod Overview”, page
138
– On vehicles with air suspension, position vehicle on wheels,
refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Tighten the wheels, refer to ⇒ Rep. Gr. 44 .
– Adapt control position anew on vehicles with air spring sus‐
pension, refer to
⇒ “3.10 Control Position, Programming”, page 221 .
– On vehicles with automatic headlamp range control system,
perform a basic setting on the headlamps, refer to ⇒ Rep. Gr.
94 .
3.5 Upper Rear Control Arm, Removing and
Installing
Special tools and workshop equipment required
♦ Torque Wrench 1332 40-200Nm - VAG1332-
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
142 Rep. Gr.42 - Rear Suspension
