Installing the Bonded Rubber Bushing

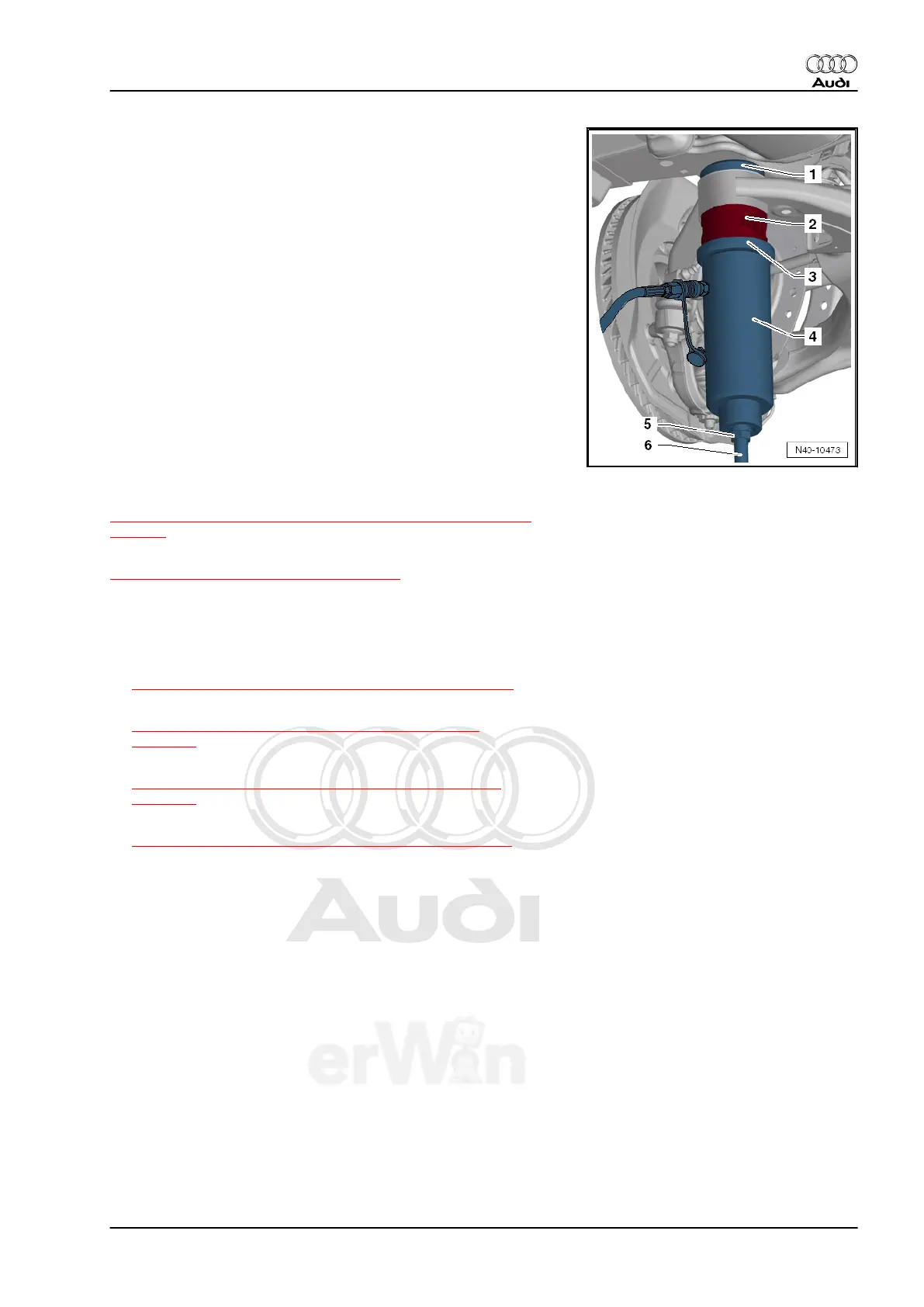

– Mount the tools as illustrated.
1 - Thrust Piece - T10301/7-
2 - Bonded Rubber Bushing
3 - Thrust Plate - T10301/15-
4 - Hydraulic Press - VAS6178- with Pressure Head -
T10205/13-
5 - Nut - T10301/2-
6 - Spindle - T10301/1-
– Press in bonded rubber bushing until shoulder lies »gap-free«
at subframe sleeve.
Installing
Installation is the reverse of removal, with special attention to the
following:
Applies to All
Tightening specifications:
⇒ “2.1 Subframe, Stabilizer Bar and Coupling Rod Overview”,
page 17
Tightening specifications:
⇒ “3.1 Steering Gear Overview”, page 292
– Tighten the driveshaft, refer to ⇒ Rep. Gr. 39 .
– Tighten the wheels, refer to ⇒ Rep. Gr. 44 .
– On vehicles with air suspension, position vehicle on wheels,
refer to
⇒ “4 Positioning Vehicle on Hoist and Wheels”, page 10 .
– Bleed steering system, refer to
⇒ “4.2 Steering System, Bleeding after Replacing”,
page 311 .
– Check power steering fluid level, refer to
⇒ “4.1 Power Steering, Checking Hydraulic Oil Level”,
page 310 .
– Check the steering system for leaks, refer to
⇒ “4.3 Steering System, Checking for Leaks”, page 312 .
2.4 Subframe, Securing
Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Assembly Carrier Locating Pins - T10300-
For certain assemblies on the vehicle, subframe or complete front
axle must be removed. For installation, the original position of the
subframe can be retained by using Assembly Carrier Locating
Pins - T10300- . Always install locating pins just prior to lowering
subframe or complete front axle.
