Pressing Out the Bonded Rubber Mount

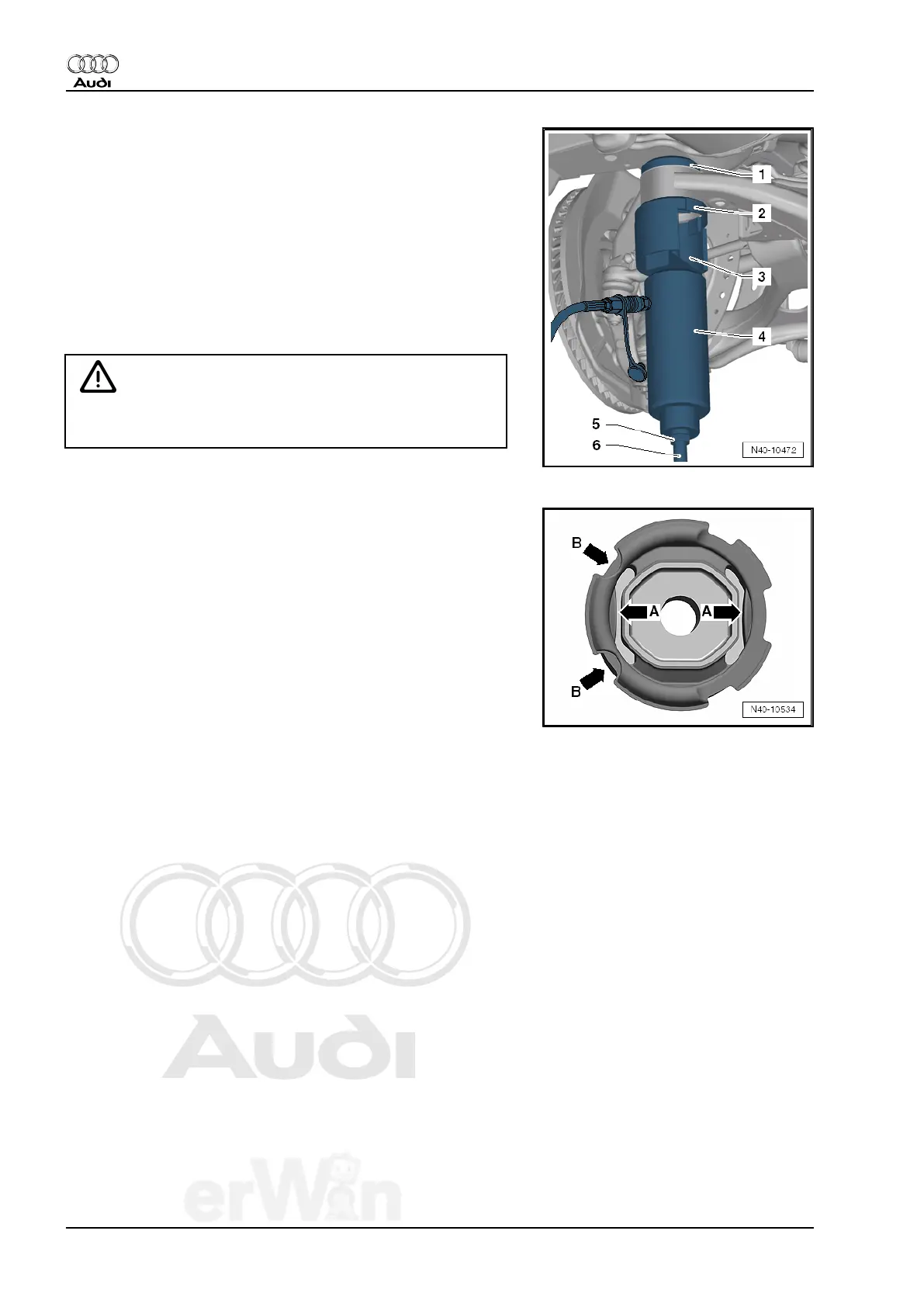

– Mount the tools as illustrated.
1 - Thrust Piece - T10301/5-
2 - Supporting Ring - T10301/14-
3 - Tube - T10301/13-
4 - Hydraulic Press - VAS6178- with Pressure Head -
T10205/13-
5 - Nut - T10301/2-
6 - Spindle - T10301/1-
WARNING
Hold the Hydraulic Press - VAS6178- during the pressing-out
procedure.
– Press out the bonded rubber mount.
Installation Position
• The cams -arrows A- must point in the longitudinal vehicle di‐
rection.
• The cutouts -arrows- must point in the direction of travel.
Audi Q7 2007 ➤
Suspension, Wheels, Steering - Edition 01.2014
38 Rep. Gr.40 - Front Suspension
